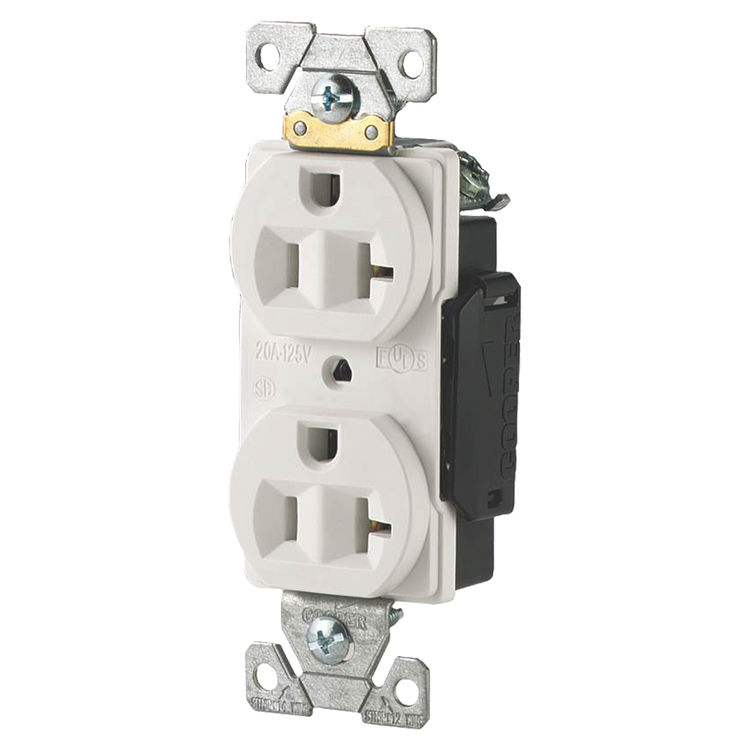

Arrow Hart Arrow Link 5352 Straight Blade Duplex Receptacle, 125 V, 20 A, 2 Pole, 3 Wire, White

SKU: 586339

$7.22/ea
Save 2% · Retail: $7.35

See buying options below:




Ships From Price Qty
Texas Warehouse
Ships in 3-4 Days
$7.22/ea 40
Order From Manufacturer
Available to Ship in 4-5 weeks
$7.22/ea

About the Arrow Hart 5352W

Arrow Hart Arrow Link 5352 Straight Blade Duplex Receptacle, 125 V, 20 A, 2 Pole, 3 Wire, White

Product Details

Mpn # 5352W
Shipping Dimensions 5.6" x 4.0" x 8.0"
Weight 0.20 lbs.
Shipping Dimensional Weight 1.02 lbs.

Product Features

  • Series: 5352
  • Type: Straight Blade
  • Numberof Poles: 2
  • Amperage Rating: 20 A
  • Voltage Rating: 125 V
  • Nema Rating: 5-20R
  • Overall Depth: 1.35 in
  • Material: Nylon
  • Temperature Rating: -20 TO 90 deg C
  • Standards: CSA Certified, UL Listed
  • Special: Side Wire
  • Usage: For Industrial Applications
  • ArrowLink modular plug and connector and incorporate a first make/last break grounding design
  • Wire leads (where applicable) are crimped and resistance welded to plug and connector terminals
  • Audible click when mating plug and connector indicates proper assembly
  • Pre-wired plugs provide 100% inspected and consistent torque settings
  • Connectors shipped with re-usable protective covering to protect from foreign matter
  • Exclusive screw terminal guards insulate conductive surfaces
  • Exclusive 5-leaf solid brass line contacts ensure lowest heat rise, smooth plug blade insertion, long-term retention
