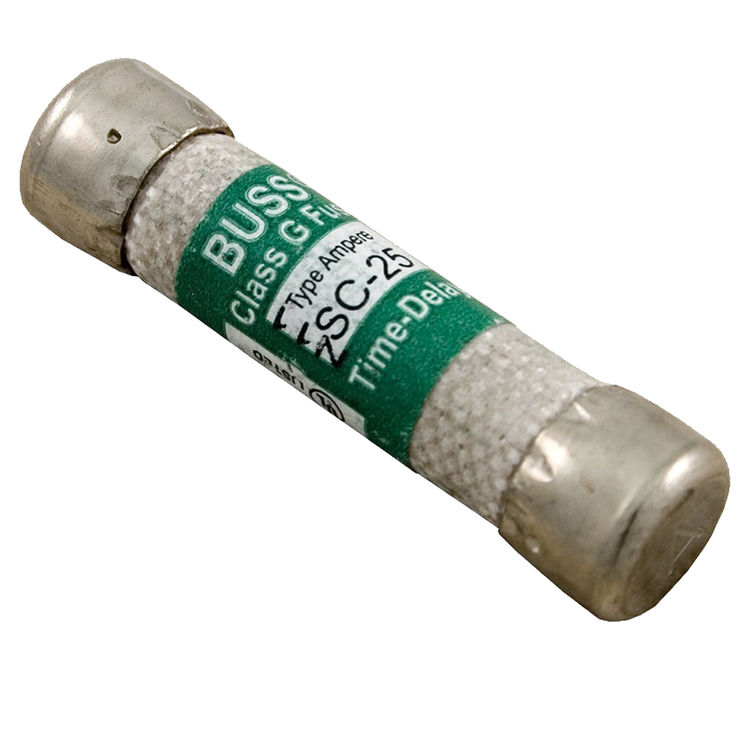

Bussmann SC-25 Auto Cartridge Low Voltage Time Delay Fuse, 480 VAC/300 VDC, 25 A

SKU: 585589

$8.01/ea
Save 28% · Retail: $11.05

See buying options below:




Ships From Price Qty
Texas Warehouse
Ships in 3-4 Days
$8.01/ea 14
Order From Manufacturer
Available to Ship in 4-5 weeks
$8.01/ea

About the Bussmann SC-25

Bussmann SC-25 Auto Cartridge Low Voltage Time Delay Fuse, 480 VAC/300 VDC, 25 A

Product Details

Mpn # SC-25
Shipping Dimensions 1.8" x 2.0" x 1.0"
Weight 0.20 lbs.

Product Features

  • Series: SC
  • Type: Auto, Cartridge, Low Voltage
  • Amperage Rating: 25 A
  • Voltage Rating: 480 VAC/300 VDC
  • Interrupt Rating: 100 kA at 480 VAC, 10 kA at 300 VDC
  • Class: G
  • Material: Melamine
  • Response Time: 12 sec at 200%
  • Body Style: Cylindrical
  • Diameter: 7/16 in
  • Standards: CE Certified, CSA Certified, UL Listed
  • Element: Dual
  • Length: 1-5/8 in
  • Usage: For Fusible Branch Panel boards, HVAC Branch Circuit Protection, Residential, Mobile Home and Industrial Applications
  • Fuse Holder Code: AJ
  • Compact branch circuit units with high interrupting rating and current limitation
  • With 600 V rating, they can be used in 120/208, 120/240 and 277/480 V circuits
  • Length variations relative to case size make the rejection type fuses
  • SC fuses with ampere ratings above 6 A have a degree of overload time-delay which permits them to pass temporary overloads
  • At 200% load, they have a minimum opening time of 12 sec
