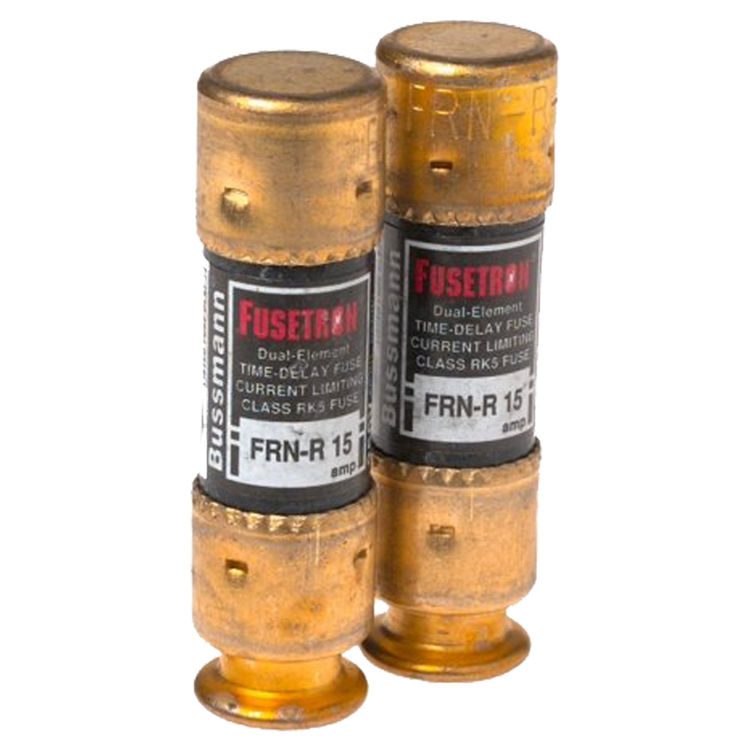

Bussmann BP/FRN-R-15 Bussmann Fusetron FRN-R-15 Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 15 A
View 2 of Bussmann BP/FRN-R-15 Bussmann Fusetron FRN-R-15 Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 15 A
View 3 of Bussmann BP/FRN-R-15 Bussmann Fusetron FRN-R-15 Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 15 A

Bussmann Fusetron FRN-R-15 Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 15 A

SKU: 585535
$ 12.11 / ea
Save 53% · Retail: $25.76

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks




Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$12.90/ea 39
Sikeston Missouri Warehouse
Ships in 5-7 Days
$12.90/ea 31
Order From Manufacturer
Available to Ship in 4-5 weeks
$12.11/ea ∞

About the Bussmann Fusetron FRN-R-15 Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 15 A

Bussmann Fusetron FRN-R-15 Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 15 A

Amperage: 15 amps
Mpn # BP/FRN-R-15
Shipping Dimensions 2.8" x 0.5" x 4.8"
Weight 0.10 lbs.
  • Series: FRN-R
  • Type: Heavy Duty, Cartridge, Current Limiting, Low Voltage
  • Amperage Rating: 15 A
  • Voltage Rating: 250 VAC/125 VDC
  • Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
  • Class: RK5
  • Material: Fiberglass
  • Response Time: 10 sec at 500%
  • Body Style: Rejection Cylindrical
  • Diameter: 9/16 in
  • Standards: CE Certified, CSA Certified, UL Listed
  • Element: Dual
  • Length: 2 in
  • Usage: For Protect of Motors and Branch Circuits
  • Fuse Holder Code: H
  • Separate overload and short circuit elements provide time delay for sizing as close as 125% of motor FLA
  • 2: 1 selective co ordination amp ratio (within the Cooper Bussmann RK5 fuse family) prevents over current events from opening upstream fusetron fuses
  • Insulated end caps for 225 - 600 A fuses reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
