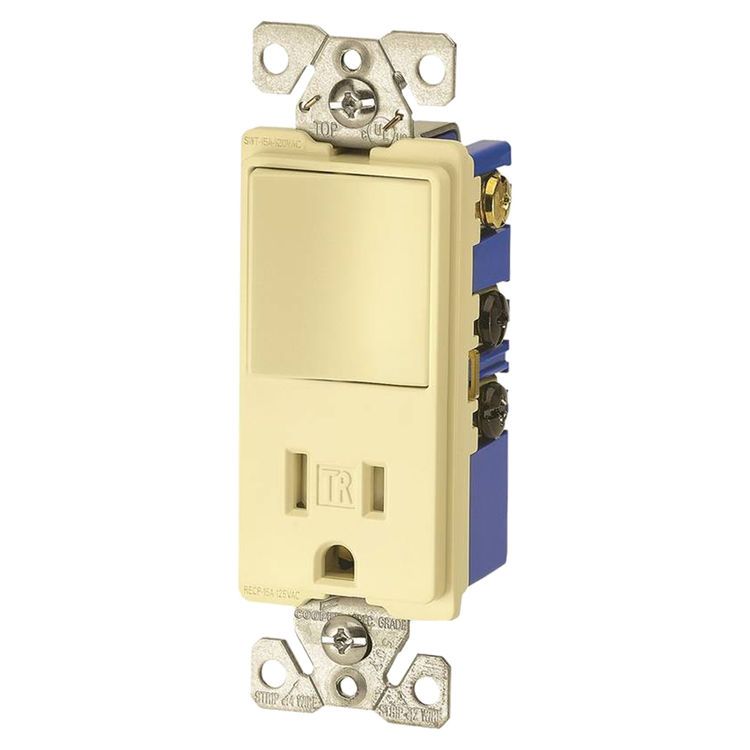

Arrow Hart TR7730V Arrow Hart TR7730V Decorator Combination Switch/Receptacle, 1 P, 15 A, 125 VAC

Arrow Hart TR7730V Decorator Combination Switch/Receptacle, 1 P, 15 A, 125 VAC

SKU: 586491
$ 16.80 / ea

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$16.80/ea ∞

About the Arrow Hart TR7730V Decorator Combination Switch/Receptacle, 1 P, 15 A, 125 VAC

Arrow Hart TR7730V Decorator Combination Switch/Receptacle, 1 P, 15 A, 125 VAC

Mpn # TR7730V
Shipping Dimensions 9.3" x 10.0" x 3.8"
Weight 4.40 lbs.
  • Series: TR7730
  • Type: Decorator
  • Numberof Poles: 1
  • Switch Amperage Rating: 15 A
  • Switch Voltage Rating: 125 VAC
  • Receptacle Amperage Rating: 15 A
  • Receptacle Voltage Rating: 125 VAC
  • Enclosure Rating: NEMA 5-15
  • Overall Depth: 1.08 in
  • Material: Thermoplastic
  • Includes: Tamper Resistant Receptacle
  • Standards: cUL Listed
  • Steel mounting strap is zinc plated for added corrosion resistance
  • Convenient patented built-in wire stripper speeds installation
  • Back wire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision for wiring both devices on the same circuit or on separate circuits
  • Triple wipe blade contacts and double wipe ground contacts ensure long-term plug retention on receptacles
  • Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used
