Bussmann 60609 Bussmann ABC Cartridge Fast Acting Fuse Without Indicator, 250 VAC/125 VDC, 20 A

Bussmann ABC Cartridge Fast Acting Fuse Without Indicator, 250 VAC/125 VDC, 20 A

SKU: 589171
$ 5.76 / ea
Save 27% · Retail: $7.93

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$5.76/ea 23
Sikeston Missouri Warehouse
Ships in 5-7 Days
$5.76/ea 7
Order From Manufacturer
Available to Ship in 4-5 weeks
$5.76/ea ∞

About the Bussmann ABC Cartridge Fast Acting Fuse Without Indicator, 250 VAC/125 VDC, 20 A

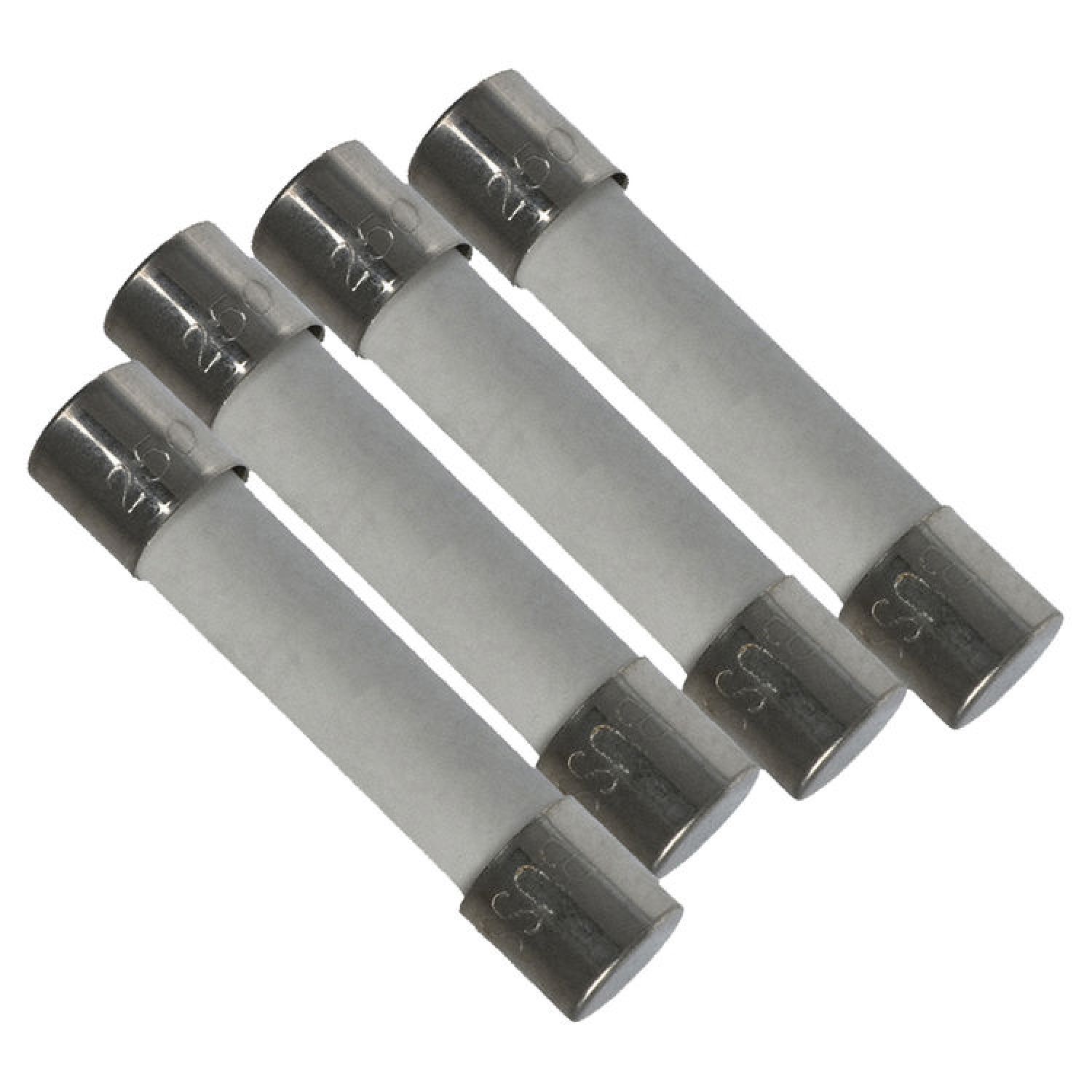

Bussmann ABC Cartridge Fast Acting Fuse Without Indicator, 250 VAC/125 VDC, 20 A

Amperage: 20 amps
Material: Ceramic
Length: 1-1/4"
Mpn # 60609
Shipping Dimensions 8.8" x 4.8" x 3.5"
Weight 1.10 lbs.
  • Series: ABC
  • Type: Cartridge
  • Amperage Rating: 20 A
  • Voltage Rating: 250 VAC/125 VDC
  • Interrupt Rating: 400 A at 250 VAC, 1000 A at 125 VAC, 10 kA at 125 VDC
  • Response Time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
  • Terminal: Ferrule
  • Body Style: Non-Rejection Cylindrical
  • Element: Single
  • Material: Ceramic Tube
  • Diameter: 1/4 in
  • Length: 1-1/4 in
  • Standards: CE Certified, UL Listed, CSA Certified, RoHS Compliant
  • Usage: For Electronic Circuits
  • Nickel-plated brass end cap construction
  • Nominal resistance: 0.00366 ohm
  • Optional axial leaded version available
  • Gray color body
  • Ceramic body allows for higher amp/volt rating combinations
