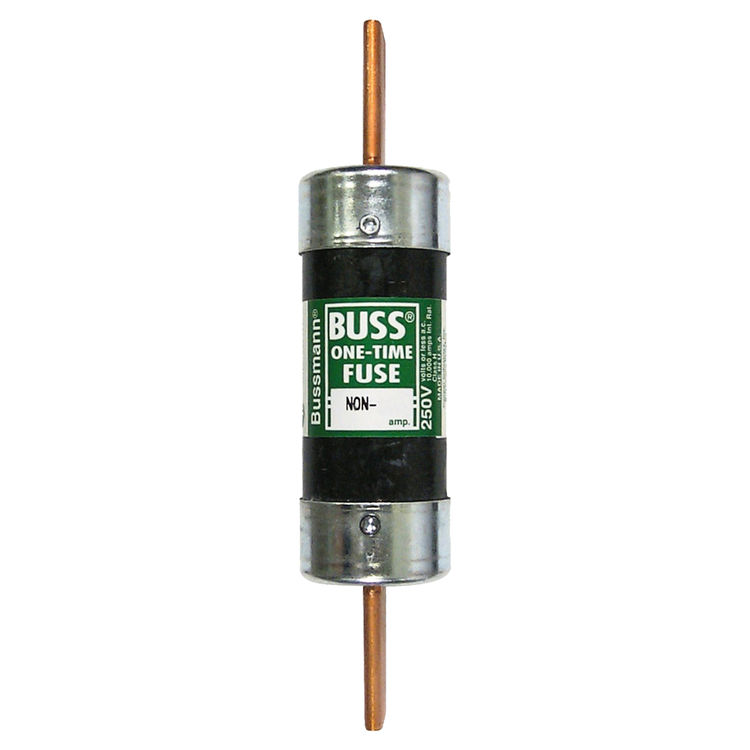

Bussmann NON-100 Bussmann NON-100 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 100 Amps
View 2 of Bussmann NON-100 Bussmann NON-100 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 100 Amps
View 3 of Bussmann NON-100 Bussmann NON-100 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 100 Amps

Bussmann NON-100 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 100 Amps

SKU: 585542
$ 14.11 / ea
Save 16% · Retail: $16.76

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks




Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$14.11/ea 24
Sikeston Missouri Warehouse
Ships in 5-7 Days
$14.11/ea 77
Order From Manufacturer
Available to Ship in 4-5 weeks
$14.11/ea ∞

About the Bussmann NON-100 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 100 Amps

Buy this replacement Bussmann NON-100 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 100 Amps

Amperage: 100 amps
Length: 5-7/8"
Material: Melamine
Mpn # NON-100
Shipping Dimensions 6.3" x 5.7" x 1.6"
Weight 1.00 lbs.
  • Series: NON
  • Type: Cartridge, One Time, Non-Current Limiting, Low Voltage
  • Amperage Rating: 100 A
  • Voltage Rating: 250 VAC/125 VDC
  • Interrupt Rating: 10 kA
  • Class: H
  • Material: Melamine
  • Body Style: Non-Rejection Blade
  • Diameter: 1-1/16 in
  • Standards: CE Certified, CSA Certified, UL Listed
  • Element: Single
  • Length: 5-7/8 in
  • Usage: For General Purpose Circuits, Lighting Circuits, Main Panel Protection
  • Fuse Holder Code: L
  • Protect lighting, heating, and other circuits not subject to temporary surges and where available short circuit currents are relatively low
  • One-time fuses do not have a time delay feature and thus should not be specified in circuits where large transients or motor overloads occur
  • Use Buss Fusetron or Low Peak dual element, time delay fuses
  • For motor circuits, size at 300% - 400%
