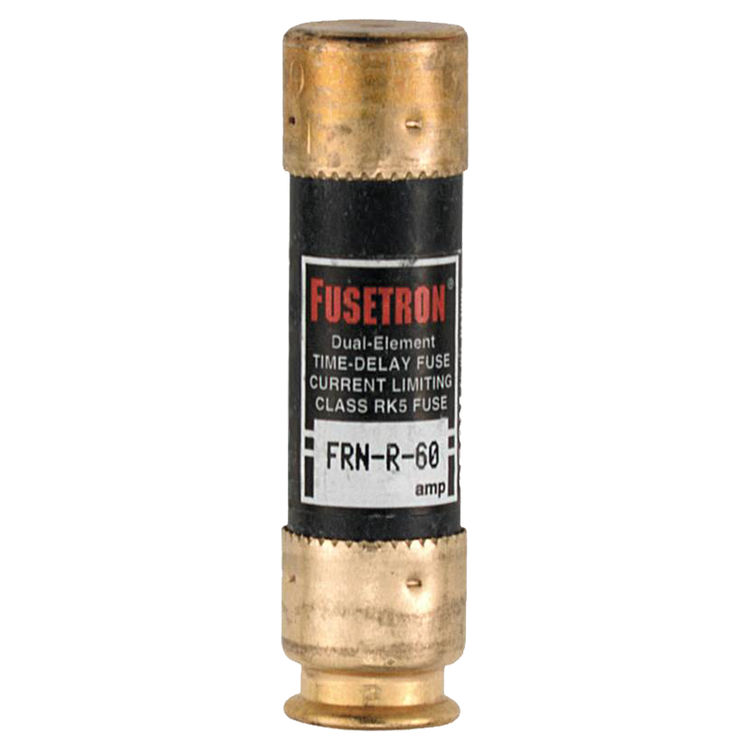

Bussmann FRN-R-60 Bussmann Fusetron FRN-R Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 60 A

Bussmann Fusetron FRN-R Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 60 A

SKU: 585533
$ 10.18 / ea
Save 24% · Retail: $13.40

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks




Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$10.18/ea 100
Sikeston Missouri Warehouse
Ships in 5-7 Days
$10.18/ea 202
Order From Manufacturer
Available to Ship in 4-5 weeks
$10.18/ea

About the Bussmann Fusetron FRN-R Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 60 A

Bussmann Fusetron FRN-R Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 60 A

Amperage: 60 amps
Material: Fiberglass
Mpn # FRN-R-60
Shipping Dimensions 4.3" x 3.3" x 2.1"
Weight 0.13 lbs.
Shipping Dimensional Weight 0.17 lbs.
  • Series: FRN-R
  • Type: Heavy Duty, Cartridge, Current Limiting, Low Voltage
  • Amperage Rating: 60 A
  • Voltage Rating: 250 VAC/125 VDC
  • Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
  • Class: RK5
  • Material: Fiberglass
  • Response Time: 10 sec at 500%
  • Body Style: Rejection Cylindrical
  • Diameter: 13/16 in
  • Standards: CE Certified, CSA Certified, UL Listed
  • Element: Dual
  • Length: 3 in
  • Usage: For Protect of Motors and Branch Circuits
  • Fuse Holder Code: K
  • Separate overload and short circuit elements provide time delay for sizing as close as 125% of motor FLA
  • 2: 1 selective co ordination amp ratio (within the Cooper Bussmann RK5 fuse family) prevents over current events from opening upstream fusetron fuses
  • Insulated end caps for 225 - 600 A fuses reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
