Product Details
Amperage:
60 amps
Material:
Fiberglass
Mpn #
FRN-R-60
Shipping Dimensions
4.3" x
3.3" x
2.1"
Weight
0.13 lbs.
Shipping Dimensional Weight
0.17 lbs.

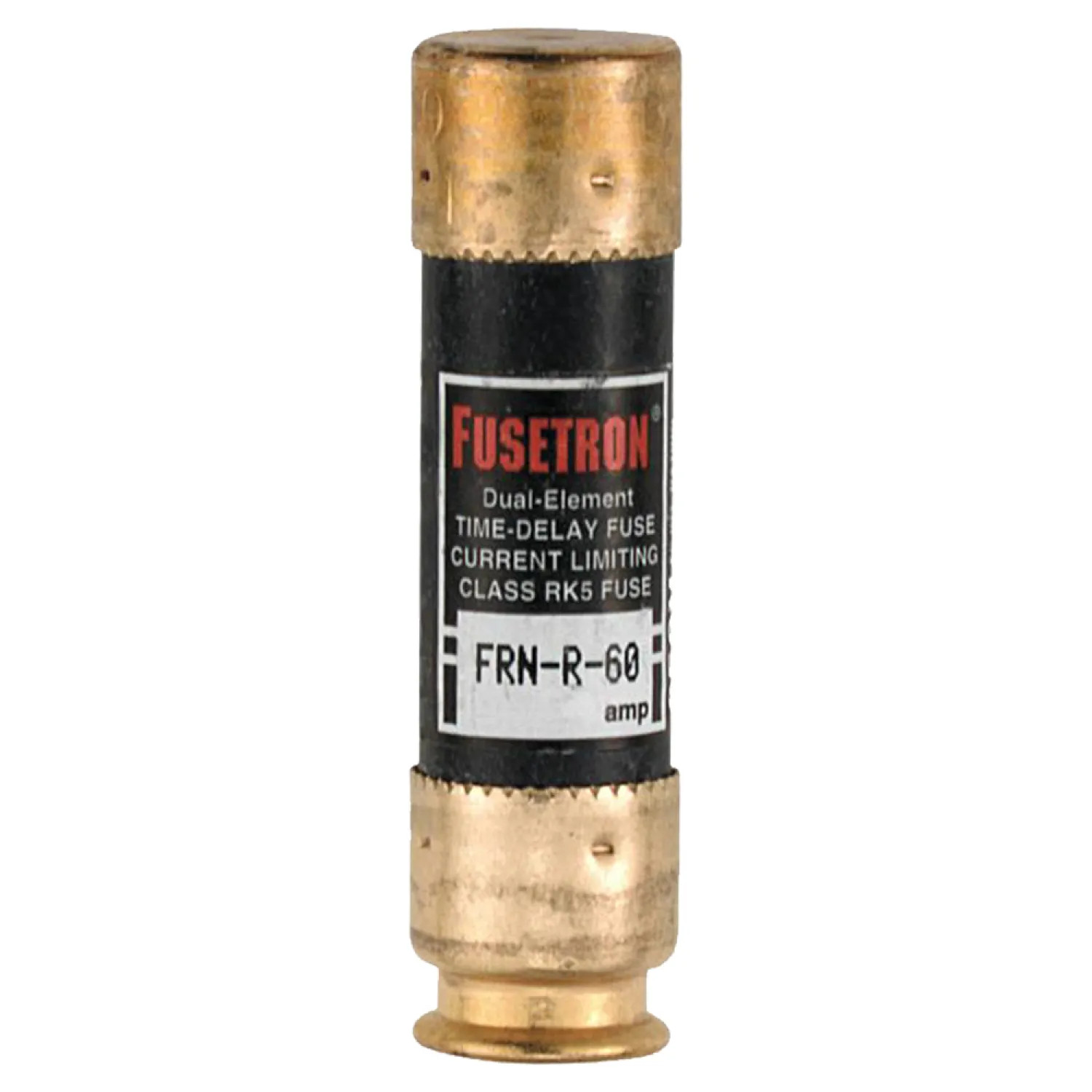

About the Bussmann FRN-R-60
About the Bussmann Fusetron FRN-R Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 60 A
Bussmann Fusetron FRN-R Heavy Duty Cartridge Current Limiting Low Voltage Time Delay Fuse, 60 A
Product Features
Series: FRN-R
Type: Heavy Duty, Cartridge, Current Limiting, Low Voltage
Amperage Rating: 60 A
Voltage Rating: 250 VAC/125 VDC
Interrupt Rating: 200 kA at 250 VAC, 20 kA at 125 VDC
Class: RK5
Material: Fiberglass
Response Time: 10 sec at 500%
Body Style: Rejection Cylindrical
Diameter: 13/16 in
Standards: CE Certified, CSA Certified, UL Listed
Element: Dual
Length: 3 in
Usage: For Protect of Motors and Branch Circuits
Fuse Holder Code: K
Separate overload and short circuit elements provide time delay for sizing as close as 125% of motor FLA
2: 1 selective co ordination amp ratio (within the Cooper Bussmann RK5 fuse family) prevents over current events from opening upstream fusetron fuses
Insulated end caps for 225 - 600 A fuses reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
