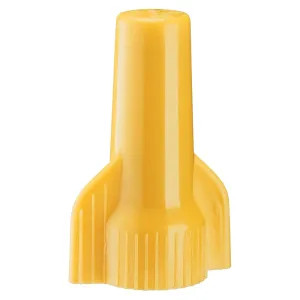

Gardner Bender 25-084 WingGard 25-084 Twist-On Wire Connector, 18 - 12 AWG, 300 V, 600 V, Thermoplastic, Yellow
View 2 of Gardner Bender 25-084 WingGard 25-084 Twist-On Wire Connector, 18 - 12 AWG, 300 V, 600 V, Thermoplastic, Yellow
View 3 of Gardner Bender 25-084 WingGard 25-084 Twist-On Wire Connector, 18 - 12 AWG, 300 V, 600 V, Thermoplastic, Yellow

WingGard 25-084 Twist-On Wire Connector, 18 - 12 AWG, 300 V, 600 V, Thermoplastic, Yellow

SKU: 588476
$ 3.18 / ea
Save 18% · Retail: $3.89

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$3.18/ea

About the WingGard 25-084 Twist-On Wire Connector, 18 - 12 AWG, 300 V, 600 V, Thermoplastic, Yellow

WingGard 25-084 Twist-On Wire Connector, 18 - 12 AWG, 300 V, 600 V, Thermoplastic, Yellow

Manufacturer: Gardner Bender
Mpn # 25-084
Shipping Dimensions 3.9" x 13.2" x 4.4"
Weight 0.10 lbs.
Shipping Dimensional Weight 1.29 lbs.
  • Type: Twist-On
  • Conductor Size: 18 - 12 AWG
  • Conductor Material: Copper/Copper
  • Material: Thermoplastic
  • Voltage Rating: 300 V, 600 V
  • Connection Type: Screw-On
  • Standards: cULus Listed
  • Temperature Rating: 221 deg F
  • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
  • Square-wire plated spring instantly adjusts to the shape and size of the splice
  • Flame-retardant properties resist heat distortion up to 105 deg C
  • High-dielectric shell deep skirt design to prevent exposure of bare wire
  • Copper-to-copper connections only
