GE TG3221R GE Electrical TG3221R Spec-Setter Safety Switches, Outdoor, Fusible, 30 Amp
View 2 of GE TG3221R GE Electrical TG3221R Spec-Setter Safety Switches, Outdoor, Fusible, 30 Amp
View 3 of GE TG3221R GE Electrical TG3221R Spec-Setter Safety Switches, Outdoor, Fusible, 30 Amp

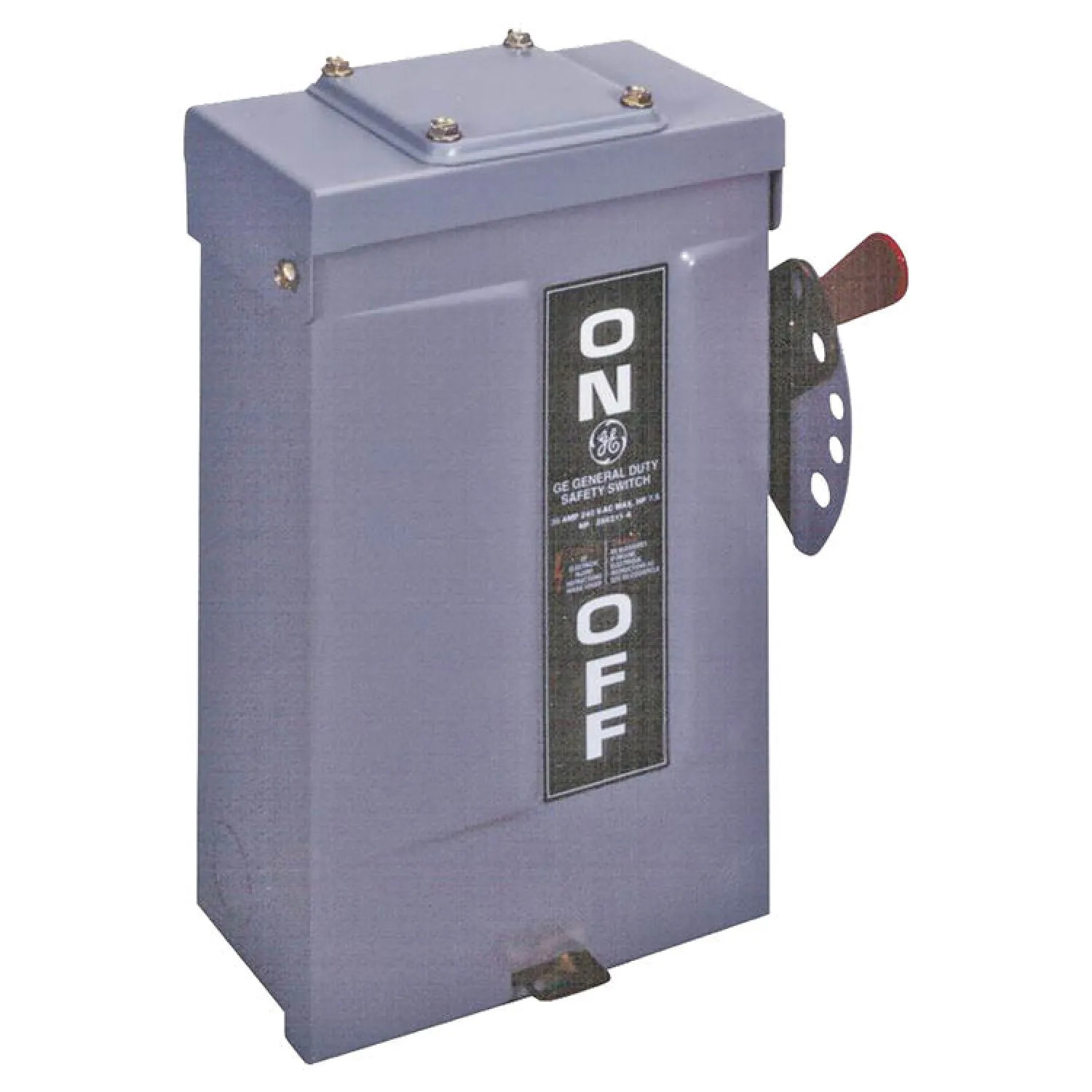

GE Electrical TG3221R Spec-Setter Safety Switches, Outdoor, Fusible, 30 Amp

SKU: 588506
$ 61.08 / ea
Save 8% · Retail: $66.49

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$61.08/ea ∞

About the GE Electrical TG3221R Spec-Setter Safety Switches, Outdoor, Fusible, 30 Amp

GE Electrical TG3221R Spec-Setter Safety Switches, Outdoor, Fusible, 30 Amp

Amperage: 30 amps
Usage: Outdoor
Mpn # TG3221R
Shipping Dimensions 11.3" x 7.6" x 7.2"
Weight 5.60 lbs.
  • Series: TG
  • Type: Fusible, General Duty
  • Voltage Rating: 240 VAC
  • Amperage Rating: 30 A
  • Material: Steel
  • Finish: Galvanized
  • Numberof Poles: 2
  • Short Circuit Rating: 10
  • Standards: ANSI Specified, CSA Certified, UL Listed
  • Special: 1-Phase, 14 - 8 AWG Cu/12 - 8 AWG Al Wire
  • Usage: For Residential and Light Commercial Applications
  • Temperature Rating: 60 - 75 deg C
  • Overall Depth: 3-5/16 in
  • Type TG general duty safety switch designed for residential and light commercial applications where duty is not severe
  • Type 3R galvanized steel enclosure offers superior rust protection in outdoor applications
  • Highly visible on/off label helps ensure safety and gives a clean, modern appearance
  • Bright red handle is easy to see and grip
  • Direct-drive, quick-make, quick-break mechanism snaps the contacts open and closed providing positive on/off indication while prolonging switch life
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
  • 3-point mounting pattern simplifies installation and ganging in close quarters
