Square D D211NCP Square D D211NCP Safety Switches, Indoor, Nema 1, 30 Amp

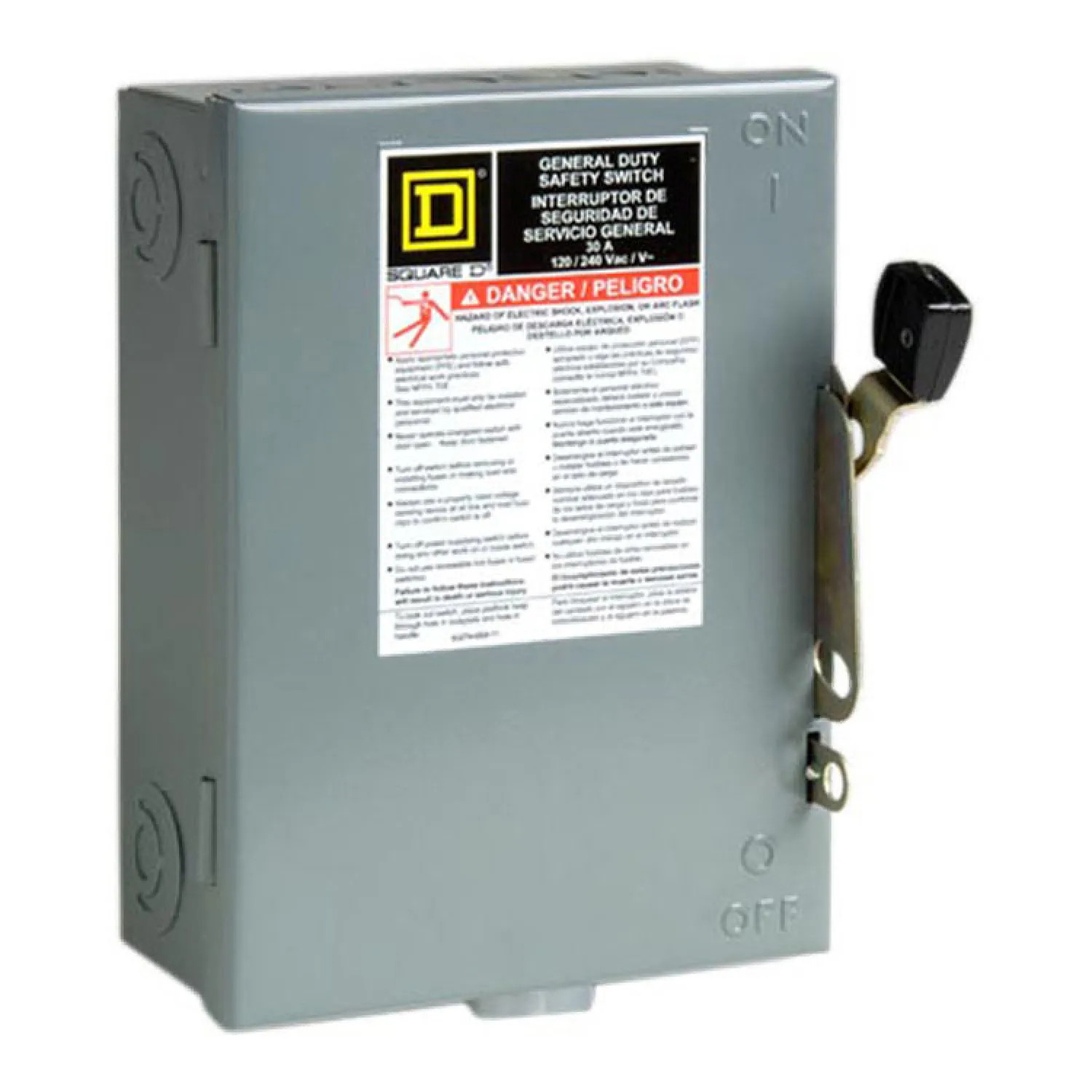

Square D D211NCP Safety Switches, Indoor, Nema 1, 30 Amp

SKU: 591578
$ 35.51 / ea
Save 28% · Retail: $49.45

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$35.51/ea ∞

About the Square D D211NCP Safety Switches, Indoor, Nema 1, 30 Amp

Square D D211NCP Safety Switches, Indoor, Nema 1, 30 Amp

Mpn # D211NCP
Shipping Dimensions 10.3" x 7.6" x 5.6"
Weight 4.30 lbs.
  • Type: Fusible, General Duty
  • Voltage Rating: 120/240 VAC
  • Amperage Rating: 30 A
  • Numberof Poles: 2
  • Includes: (2) Blades and Fuse Holders, (1) Solid Neutral
  • Short Circuit Rating: 10
  • Standards: UL Listed
  • Special: 3-Phase, 14 - 8 AWG Cu/Al Wire
  • Action: DPST
  • Usage: For Residential and Commercial Applications
  • Mounting Type: Surface
  • Terminal Type: Lug
  • Overall Depth: 3.63 in
  • Up to 100 kA SCCR, utilizing appropriately rated Class R Class J or Class T fuses or fuse kits
  • Horsepower rated for motor applications
  • Tangential combination knockouts 30 - 200 A
  • Spring reinforced plated copper fuse clips
  • Insulated, bonded solid neutral assemblies (standard in fusible switches)
  • Quick-make, quick-break operating mechanism
  • Cover padlock hasp and handle lock "OFF"
