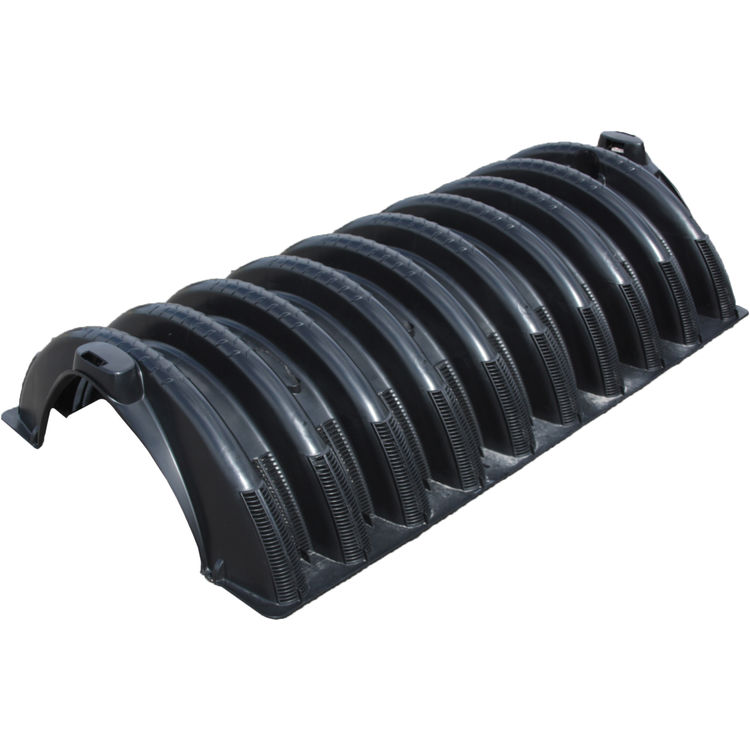

ADS BioDiffuser Arc 36 Septic Leaching Chamber

SKU: 39404
   based on 4 Reviews
100% recommend this product
$34.07/ea
Cargo Shipping Only
Save 43% · Retail: $59.63

  In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$34.07/ea

About the ADS Arc 36

The ADS BioDiffuser Arc 36 Septic Leaching Chamber is designed to replace the cumbersome and manually intensive gravel and leach systems commonly found in most septic waste water installations. Each 63" (60" repeat length) corrugated section is 34.5" wide and is made of high-density polyethylene. The Arc 36 by ADS features an open bottom for leach capabilities, a solid top for quick and easy burying, and louvered sidewalls to minimize soil intrusion and add strength. These sections conveniently interlock using an integral modified post and dome joint that allows for both straight line installation and slightly radial applications as well. Universal inlet/outlet end caps are available for professional and long lasting connections to both gravity-fed and pressure-dosed septic systems. Weighing only 16lbs this ADS BioDiffuser Arc 36 Septic Leaching Chamber can be quickly installed by one person and include inspection vent ports with easy-to-remove knockouts for maximum job site flexibility. The corrugated chamber design of the Arc 36 eliminates flat surfaces and increases load bearing capabilities to a rating of H-10 (16,000 lbs. per axle) with a minimum of 12 inches of cover.

Product Details

Product: Tank
Manufacturer: ADS
Style: Leach Chamber (Bio-Diffuser)
Length: 5'
Mpn # Arc 36
Shipping Dimensions 60.0" x 36.0" x 12.0"
Weight 15.50 lbs.

Product Features

  • Convenient five-foot lengths are lightweight and easy to handle
  • Integral 20-degree articulating joint for all applications
  • True corrugated chamber profile provides increased load bearing capabilities
  • "Lock and Drop" joint provides a more positive connection during installation and backfill
  • Increased plumbing option with Side Port Coupler component which snaps in place to allow side/entry at any joint throughout the trench line
  • Diamond plate texture increases slip resistance and/enhances ease of installation
  • Inspection vent ports on every unit with easy-to-remove knockouts for maximum job site flexibility.
  • Quickly installed by one person into three-foot wide trench or bed applications.
  • Designed to accommodate both gravity-fed and pressure-dosed systems.

Reviews

Rated 5 out of 5 based on 4 reviews


 Rated 5 by Fernando E.

Originally posted on plumbersstock.com Dec/2016

 Rated 5 by Terry H.
This product was shipped quickly by Plumbers Stock. The pieces went together easily. It only took a few hours to install. Looking forward to many problem free years.
Originally posted on plumbersstock.com Feb/2017

 Rated 5 by Marie E.
This product was shipped to Florida really quickly. The product was as expected and in great condition. The customer service was excellent and professional. I had a great experience and highly recommend this company and it's products.
Originally posted on plumbersstock.com Feb/2017

General Contractor - Florida Rated 5 by Keith Dove
  Yes, I recommend this product.
This Leaching Chamber is the only way to properly install a drain field in the more crowded surburban areas in which most of us live. Instead of having a 4" pipe surrounded with gravel or sand with only small holes randomly scattered about the pipe with the 24" Arc Leaching Chamber now you have the entire 24" times the lenght of the drain field where the more affluent that runs out of the tank the more of the chamber is used. In addition because the open part of the Arc Chamber is facing down you also have the added benefit of gravity assisting with the percolation of the liquid into the soil. I have been using these Chambers since their inception will NEVER go back to the old and inefficient wrapped drain field pipe. The ARC Chamber System is Great also because it costs me one fifth the labor to install as conventional systems and the Chamber System is much less expensive than hauling load after load of gravel. You cannot lose with this system no matter how hard you might try. Keith Dove, Founder and CEO, Atlanta Dove Construction, Southeastern U.S. Technical, Ebro, Florida 32437
Originally posted on PlumbersStock Feb/2017

Questions & Answers

Anonymous responded:

This depends on the depth of your septic tank's outlet. Typically this is no deeper than 30 inches below ground. In cases where the lid of the septic tank is at ground level, these bio-diffusers may only be a few inches below the surface. I don't know the exact height of this product, but they are between 12 -16 inches tall so the pipe from the septic system would need to be dropped to such a level as to run into these fully-buried leaching chambers. You can drop the outlet of your septic tank further into the ground, but you cannot raise it. Septic tanks use gravity and percolation to work.

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. The depth depends whether you will have a trench installation, a bed installation, or other configurations. For a clearer information on the depth and spacing, please feel free to check the Installation Manual specifically on pages 16 – 17, and 18 – 21. If you wish to purchase this product, click Add To Cart now to confirm your order! We also invite you to sign up to receive our newsletter and discover fabulous discounts by keying in your email address in the space provided at the bottom right of this page. Thank you for shopping with plumbersstock.com – the perfect place to find high-quality products at low, low prices!

Anonymous responded:

Yes

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for your interest in our ADS BioDiffuser Arc 36 septic leaching chamber. This product comes with a universal inlet/outlet end cap. Hope this answered your question. Thank you and we hope to see you again here at plumbersStock.com!

Anonymous responded:

Are end caps available?

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for your interest in our ADS BioDiffuser Arc 36 septic leaching chamber. This product comes with a universal inlet/outlet end cap. Hope this answered your question. Thank you and we hope to see you again here at plumbersStock.com!

*PLUMBERSSTOCK EXPERT* responded:

Please contact customer service at 435-868-4020 regarding this question as it varies from customer to customer. Thanks!

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. This product comes with a universal inlet/outlet end cap. If you wish to purchase this product, click Add To Cart now to confirm your order! Thank you for visiting plumbersstock.com – your one-stop online store for all your plumbing needs.

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. When this chamber is tested in accordance with IAPMO PS 63 and installed according to the manufacturer’s installation procedures, this chamber will meet the load rating of H-10 (16,000 lb per axle). If you wish to purchase this product, click Add To Cart now to confirm your order! We also invite you to sign up to receive our newsletter and discover fabulous discounts by keying in your email address in the space provided at the bottom right of this page. Thank you for shopping with plumbersstock.com – the perfect place to find high-quality products at low, low prices!

Anonymous responded:

36

Anonymous responded:

It really depends on the footprint of the pipe gallery. Your new leaching chambers should be no smaller than the footprint of the old pipe gallery.

Anonymous responded:

depending on your soil and water use in the house. these chambers are suppose to hold up to 60 gallons of water compared to that one stick 10 feet long black pipe that holds maybe 20 gallons. the key to a septic tank .field line, leech bed is your soil and water used in the house. sand loves water and clay does not.

Anonymous responded:

Optional

Anonymous responded:

how many piece for a 2bed 1bath

Anonymous responded:

5

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. The depth depends whether you will have a trench installation, a bed installation, or other configurations. For a clearer information on the depth and spacing, please feel free to check the Installation Manual specifically on pages 16 – 17, and 18 – 21. If you wish to purchase this product, click Add To Cart now to confirm your order! We also invite you to sign up to receive our newsletter and discover fabulous discounts by keying in your email address in the space provided at the bottom right of this page. Thank you for shopping with plumbersstock.com – the perfect place to find high-quality products at low, low prices!

*PLUMBERSSTOCK EXPERT* responded:

We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. This is a 34.5" wide chamber and is 63" long. Here is a more detailed illustration of the chamber and its dimensions. Should you have any questions, please let us know. If you wish to purchase this product, click Add To Cart now to confirm your order! Thank you for visiting plumbersstock.com – your one-stop online store for all your plumbing needs!

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. This product comes with a universal inlet/outlet end cap. But, if you're looking for the end cap, we do have the ADS Arc 36 Cap Septic Leaching Chamber. Just click on the link to transfer to the product's page. Whenever you're ready to purchase an item here at PlumbersStock.com, just click on Add to Cart. Enter your zip code to get a shipping cost estimate and proceed to checkout to begin the ordering process. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. You may want to see this installation video for detailed installation instructions of this septic leaching chamber. We hope this helps. Order this now by clicking Add to Cart. Enter your zip code to get a shipping cost estimate and proceed to checkout to begin the ordering process. Thanks for choosing PlumbersStock.com as your online shopping buddy. Have a great day and happy shopping!

*PLUMBERSSTOCK EXPERT* responded:

Hello! We appreciate your interest in our ADS BioDiffuser Arc 36 Septic Leaching Chamber. The height of this product is 13". Here's a detailed illustration of the chamber for exact dimensions reference. If you are all set to purchase this item, just click on Add to Cart. Enter your zip code to get a shipping cost estimate and proceed to checkout to begin the ordering process. Thanks for choosing PlumbersStock.com as your online shopping buddy. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for your interest in our ADS BioDiffuser septic leaching chamber. A splash pad (also known as a spray pool) is a water recreational area consisting of spray nozzles and other equipment that makes the system work. You can usually see these on pools and water parks. Hope this answered your question. Thank you and we hope to see you again here at PlumbersStock.om!

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for taking interest in our ADS BioDiffuser Arc 36 leaching chamber. The growth of the grass depends on the area and soil quality. You can avoid this by applying a root killer. Problems may differ depending on the type of installation and installation procedures done. Hope this helps. Thank you and we hope to see you again here at PlumbersStock.com!

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for your interest in our ADS BioDiffuser Arc 36 septic leaching chamber. Do you mean end caps? This product comes with a universal inlet/outlet end cap. Hope this answered your question. Thank you and we hope to see you again here at PlumbersStock.com!

*PLUMBERSSTOCK EXPERT* responded:

Thank you for your interest in the ADS Arc 36! Yes, according to the manufacturer, the 4-inch pipe is required in a conventional on-site leachfield system. Please refer to the installation manual, the sell sheet and page 4 of the manufacturer’s catalogue for this BioDiffuser Septic Leaching Chamber if you have more questions. Once you’ve made your selection, always remember to click Add to Cart to confirm your order, enter your zip code and you’ll be all set! For availability inquiries, or to better understand lead and ship times, please contact one of our knowledgeable customer service representatives @ 435-868-4020 between 8:00 AM to 7:00 PM MT or through e-mail @ support@plumbersstock.com. You can also sign up for our Newsletter!

*PLUMBERSSTOCK EXPERT* responded:

Thank you for expressing interest in the ADS Arc 36 (3613BD2) septic leaching chamber. According to the manufacturer, you will need to order 100 pieces of chambers for 500 square feet. For more details, please check page 30 of this Manual. If you're ready to order this product, just click "Add to Cart" and put your postal code and you'll be all set. Happy shopping!

*PLUMBERSSTOCK EXPERT* responded:

Good day! Thanks for posting a question under our ADS BioDiffuser Arc 36 Septic Leaching Chamber. Yes, it comes in 18". The product number is Arc 18. We don't have it on PlumbersStock yet but you may place an order by contacting one of our knowledgeable customer service representatives @ 435-868-4020 between 8:00 am and 7:00 pm MST or through e-mail @ support@plumbersstock.com. They'll be happy to assist you. You may want to see this specification sheet for reference. Thanks for choosing PlumbersStock.com as your online shopping buddy. Have a great day!
