Aquamotion AM10-3FV1 AquaMotion AM10-3FV1 Cast Iron Circulator Pump

Printer friendly page

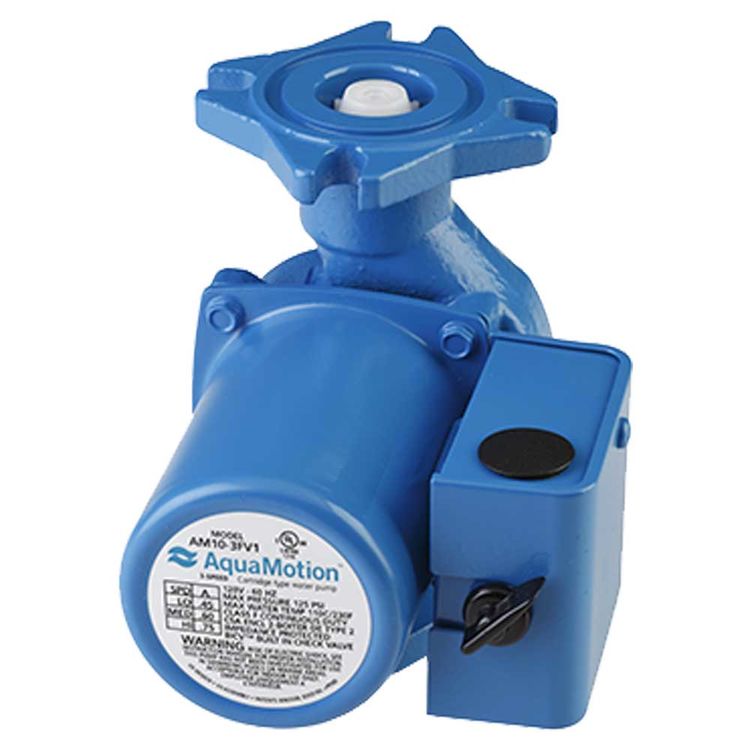

AquaMotion AM10-3FV1 Cast Iron Circulator Pump

SKU: 772829

Save 47% · Retail: $337.88

Manufacturer stocks, ships quickly!

Ships From Price Qty
Order From Manufacturer
Manufacturer stocks, ships quickly!

About the Aquamotion AM10-3FV1

The AquaMotion AM10-3FV1 is a cast iron circulator pump designed for residential and commercial systems such as closed-loop hydronic heating systems, radiant heating, heat recovery systems, and indirect water heating applications. It comes with a wet motor cartridge design, allowing quiet operation and convenient installation. This circulator pump also accepts a 32 mm check valve and flange with a 4-bolt connection to prevent thermo-siphoning and back-flow.

This rugged three-speed model has an Ampere draw of Low 0.45, Med 0.60, and Hi 0.75 amps and a maximum flow rate of 29 GPM offering high and efficient performance. It features the Green Eco Cartridge Design, which acts a the heart of the circulator containing all the moving parts, allowing easy, cost-efficient maintenance and service-free performance while preventing black iron oxide and contaminants from entering into the cartridge.

AquaMotion takes pride in providing the industry’s most efficient heating circulators and hot water recirculation systems that meet and exceed customer’s demands. In partnership with AquaMotion, PlumbersStock strive to offer you high-quality products like this one at a competitive price. Get yours now and experience the comfort of instant hot water here at Plumberstock!

Product Details

Product: Circulating Pump
Speed Selection: Variable Speed
Flow Rate: 29 GPM
Head Lift: 10' - 14'
Connection Type: Flanged
Material: Cast iron
Type: Replacement Part
Pressure Rating: 125 PSI
Pump Type: Circulator Pump
Manufacturer: Aquamotion
Mpn # AM10-3FV1
Weight 7.90 lbs.

Product Features

  • The AM10 circulator replaces Taco 0010 circulators and other circulator models
  • Comes with built in check valve
  • 32mm check valve
  • Electrical ratings : 120v, 60Hz
  • Maximum water temperature of 110C/230F
  • Low 0.45, Med 0.60, and Hi 0.75 amps
  • cast iron
  • 29 GPM
  • features the Green Eco Cartridge Design
