AquaMotion AM7-FV1 Circulator Pump, Cast Iron | PlumbersStock
$ 0.00
Aquamotion AM7-FV1 AquaMotion AM7-FV1 Circulator Pump, Cast Iron

Printer friendly page

AquaMotion AM7-FV1 Circulator Pump, Cast Iron

SKU: 772827

Save 46% · Retail: $201.43

Manufacturer stocks, ships quickly!

Ships From Price Qty
Order From Manufacturer
Manufacturer stocks, ships quickly!

About the Aquamotion AM7-FV1

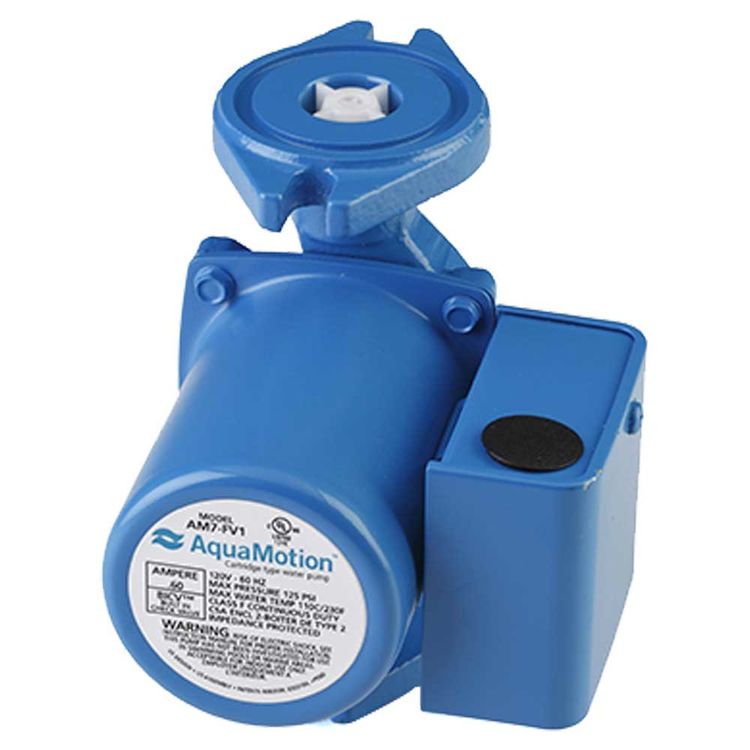

The AquaMotion AM7-FV1 is a cast iron circulator pump designed for residential and commercial systems such as closed-loop hydronic heating systems, radiant heating, heat recovery systems, and indirect water heating applications. It comes with a wet motor cartridge design allowing quiet operation and convenient installation. This circulator pump also accepts a 25 mm check valve and flange with a 2-bolt connection to prevent thermo-siphoning and back-flow.

 This rugged single-speed model has an Ampere draw of 0.6 amps and a maximum flow rate of 20 GPM offering high and efficient performance. It features the Green Eco Cartridge Design, which acts a the heart of the circulator containing all the moving parts, allowing easy, cost-efficient maintenance and service-free performance while preventing black iron oxide and contaminants from entering into the cartridge.

AquaMotion takes pride in providing the industry’s most efficient heating circulators and hot water re-circulation systems that meet and exceed customer’s demands. In partnership with AquaMotion, PlumbersStock strive to offer you high-quality products like this one at a competitive price. Get yours now and experience the comfort of instant hot water here at Plumberstock!

Product Details

Product: Circulating Pump
Material: Cast iron
Connection Type: Flanged
Speed Selection: Single speed
Electrical Voltage: 120 Volt
Style: Replacement
Pressure Rating: 125 PSI
Pump Type: Circulator Pump
Manufacturer: Aquamotion
Flow Rate: 20 GPM
Mpn # AM7-FV1
Weight 6.60 lbs.

Product Features

  • Max gpm flow: 17 gpm
  • Comes with 25mm check valve
  • Maximum water temperature 110C/230F
  • Maximum ambient temperature with 230F fluid is 104F
  • Minimum inlet pressure 2 psi
  • 0.60 amps
  • AM7 circulator replaces Taco 007 and other model circulators
  • Maximum head feet: 11 feet
