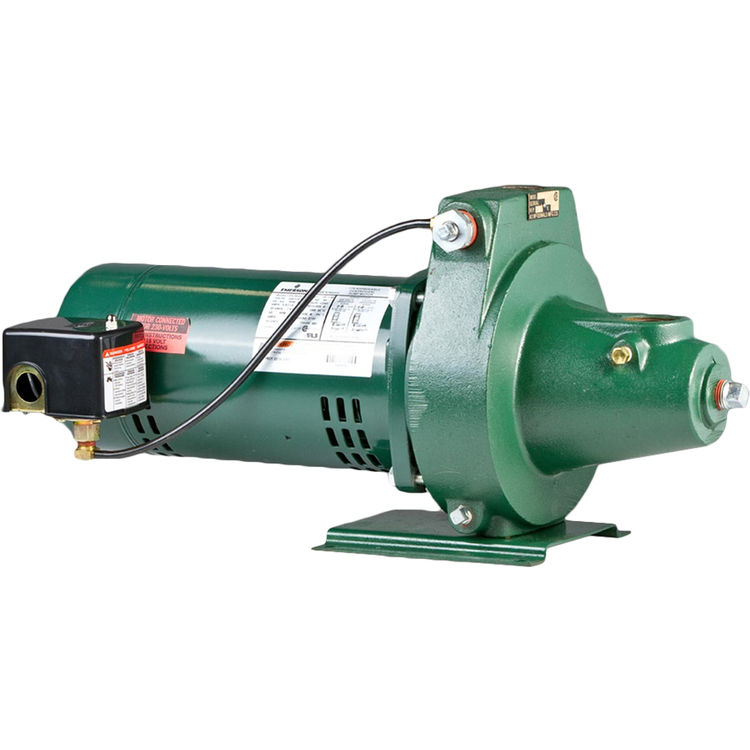

AY MCDONALD 6164-002 3/4 HP SHALLOW WELL JET PUMP

SKU: 7688

$294.50/ea
Save 59% · Retail: $724.00

Manufacturer stocks, ships quickly!


Ships From Price Qty
Order From Manufacturer
Manufacturer stocks, ships quickly!
$294.50/ea

About the AY McDonald 6164-002

AY McDonald 8570 Shallow Well Jet Pump. This is a genuine A.Y. McDonald Jet Pump which is manufactured to the highest degree. The pump is for shallow well applications and the pump includes a 1-1/4 inch suction pipe. The pump runs at 3/4 HP (horsepower) and at 230 volts on the factory setting.

Product Details

Manufacturer: AY McDonald
Use: Water
Mpn # 6164-002
Weight 43.00 lbs.

Product Features

  • 3/4 HP
  • 5 TO 25 FT SUCTION LIFT
  • ZINC PLATED NOZZLE CLEAN-OUT PLUG
  • ZINC PLATED PRIMING PLUG
  • THERMOPLASTIC DIFFUSER
  • MEETS ANSI/UL 778, CSA C22.2 NRTL/C STANDARDS
  • WEIGHT: 43 LB
  • 230 Volts factory Setting
  • includes 1-1/4 inch suction pipe
  • Square Flange Motor 7/16" - 20 Threads
  • 115/230 V 50/60 HZ INPUT SUPPLY RATING
  • ADJUSTABLE PRESSURE SWITCH
  • 5/8 INCH CERAMIC CARBON MECHANICAL SEAL
  • CAPACITOR START MOTOR
  • BUILT-IN REGULATING VALVE

Reviews

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Hi! Thank you for visiting PlumbersStock.com! The 6190-014 Rotary Seal is what you need in your AY McDonald 8270 ser. 211 pump. It is a rotary seal type 6, and its size is 5/8. Please call our customer service hotline @ 435-868-4020 to order this item. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Good day! We appreciate your interest in our AY McDonald 6164-002 3/4 HP Shallow Well Jet Pump. Please refer to this picture to see where the inlet of the pump is. If you wish to purchase this product, just click Add To Cart and follow the succeeding steps and you're good to go! Should you have further questions, please let us know. Thank you for shopping with plumbersstock.com – the perfect place to find high-quality products at low, low prices!

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for posting your inquiry on the AY Mcdonald 6164-002 product page. Based on the information that you provided, are you referring to the MTH D71 Series of Pumps? Just to be sure, please take a look at this Image and specification sheet as basis for comparison. PlumbersStock needs to be sure so that we may be able to provide you with the correct part that you need. If it is indeed your pump, please refer to page 3 from the provided specification sheet to view the parts that you need. As what we can tell based on the specification sheet, your pump has a 143-215JM frame size mechanical seal. There are 3 choices of seals available, each with their own O-ring material type. The S-103 uses the Buna-N, the S-104 uses EPT, while the S-105 uses Viton. If you're sure and are already decided on what mechanical seal you need, don't hesitate to call our customer service representatives @ 435-868-4020 between 8:00 am and 7:00 pm MST or through e-mail at; support@plumbersstock.com to place an order. Thank you and we hope to see you again here at PlumbersStock.com!

*PLUMBERSSTOCK EXPERT* responded:

Hi there! Thank you for posting a question under the AY Mcdonald 6164-002 3/4 HP Shallow Well Jet Pump. Depending on which AY McDonald 8111 pump you have, the direct replacement for your pump is either the 6158-100 or the 6158-105. Neither product is on PlumbersStock.com yet, but feel free to contact our Customer Service Department at 435-868-4020 from 7 AM to 7 PM MST (Mon-Fri) or through support@plumbersstock.com. They will be happy to assist you in placing the order anyway. Happy shopping!

*PLUMBERSSTOCK EXPERT* responded:

Hi! Thank you for taking interest in the AY Mcdonald 6164-002 3/4 HP Shallow Well Jet Pump. If your pump's model number is 8111, the replacement gasket that you need is the 6155-224, which is for the Housing Gasket D09 or older. And if that is the exact gasket that you have, you can proceed to replace it. Thank you for visiting PlumbersStock.com! Have a good day.

*PLUMBERSSTOCK EXPERT* responded:

Hi! We are sorry to hear that. Your AY McDonald 6164-002 Jet Pump gets noisy because of some factors like worn motor bearings or a clogged impeller. For more troubleshooting guides, please check the last page of this installation manual. We hope this helps! If you will experience the same issue, it is best to contact the manufacturer at 1-800-292-2737 for further technical assistance. Thank you for visiting PlumbersStock.com! Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Hello there! Thank you for trusting PlumbersStock to answer your question. The AY Mcdonald 6164-002 Jet Pump is a bit different from the 8270. The 6164-002 is a shallow well pump only (up to 25’ ), while the 8270 is a convertible pump that can do both shallow and deep applications with the addition of a jet package. We have contacted AY Mcdonald and according to them, the 8270 Pump is still a current model. It is not yet on PlumbersStock.com but feel free to contact customer service at 435-868-4020 between 8:00 AM and 7:00 PM MST or you may email them at support@plumbersstock.com. They will be happy to assist you in placing an order. Have a great day!

*PLUMBERSSTOCK EXPERT* responded:

Hello there! Thank you for choosing PlumbersStock to answer your question. The AY Mcdonald 6164-002 Jet Pump's motor will draw 14.3 amps at 115 volts. Should you have further questions, don't hesitate to ask. PlumbersStock is happy to assist you. Have a great day!
