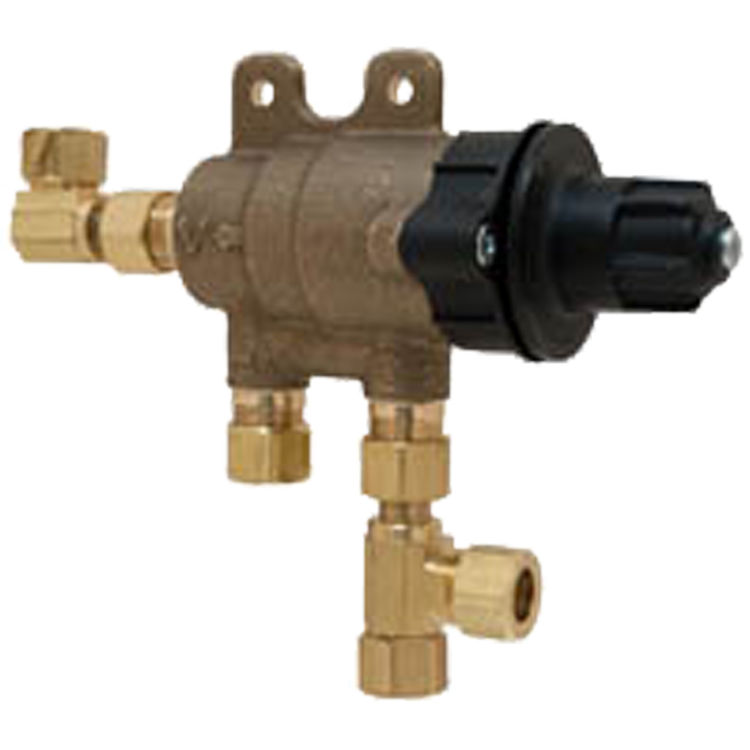

Chicago Faucet 131-CABNF Chicago Faucets 131-CABNF ECAST Thermostatic Mixing Valve

Chicago Faucets 131-CABNF ECAST Thermostatic Mixing Valve

SKU: 362050
$ 157.58 / ea
Save 37% · Retail: $248.23

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks




Ships From Price Qty
Sacramento California Warehouse
Ships in 2-3 days
$187.05/ea 80
Order From Manufacturer
Available to Ship in 2-3 weeks
$157.58/ea ∞

About the Chicago Faucets 131-CABNF ECAST Thermostatic Mixing Valve

The Chicago 131-CABNF Accessories and Parts. This pop-up drain features a bright, Chrome finish, and comes with both the lift knob and rod. It is designed for use in 1-1/4" diameter waste pipe.

Spout Style: Cast Spout
Manufacturer: Chicago
Mpn # 131-CABNF
Weight 4.00 lbs.
  • ECAST? Thermostatic Mixing Valve Design
  • Thermostat controls both hot and cold water
  • Installs between the stop valves and the faucet for Single or multiple faucet installations
  • Minimum supply pressure: 30psi (207 kPa); Hot inlet temperature: 100?F-180?F (38?C-82?)
  • Outlet water temperature will be less than hot water inlet temperature
  • 3/8" compression tee inlet connection for cold water bypass feature
  • 3/8" compression angle outlet connection for convenient hot water hook-up
  • Minimum Flow Rate: 0.5 gpm (@ min. 10 psi)
  • Maximum Flow Rate: 6.4 gpm (@ min. 120 psi)
  • Temperature Out: 80?F to 120?F (27?C to 49?C)
  • ECAST? construction with equal to or less than 0.25% lead content by weighted average
  • Weight: 1.100lbs
  • 5-Year Limited Cartridge Warranty 1-Year Limited Finish Warranty 1-Year Manufacturing Material Defects Warranty
  • 1-Year Limited Finish Warranty 1-Year Manufacturing Material Defects Warranty
  • 1-Year Manufacturing Material Defects Warranty
  • CFNow! - eligible to ship within 24 hours after order acknowledgement
  • Standard 3/8" Compression Inlets and Outlets
  • Integral inlet check valves to protect against cross-flow
  • Adjustment cap with locking feature
  • Brass Body Construction, Includes wall bracket
  • Corrosion resistant internal components
  • Thermostatic Wax Element Design
