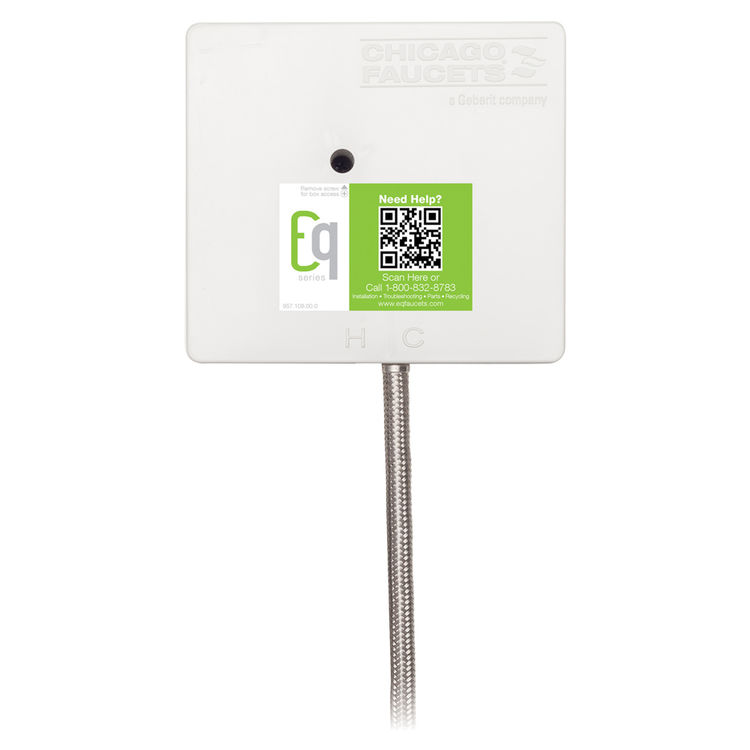

Chicago EQ-12KJKABNF Battery Power Control Assembly Mechanical Mixing Valve

SKU: 515118

Save 35% · Retail: $244.01

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Chicago Faucet EQ-12KJKABNF

Chicago\'s EQ-12KJKABNF Control Box Assembly offers commercial grade reliability and efficiency. With adjustable temperature control and powered by 4 \'AA\' alkaline batteries, the EQ-12KJKABNF delivers consistent service and effortless power maintenance. The EQ-12KJKABNF includes dual supply inlets for hot and cold water service, a control box housing, solenoid valve, mixing element, mounting hardware, and integral check valves for cross-flow protection. The operating static pressure spans from 20 to 125 PSI. The cold water inlet range is 39- 80°F, and the hot water inlet range is 120-180°F. Combine the EQ-12KJKABNF Control Box with a Chicago EQ Series spout assembly for an effective commercial bathroom faucet installation.

Product Details

Manufacturer: Chicago
Room: Bathroom
Weight 1.50 lbs.

Product Features

  • with Concealed Mechanical Mixing Valve Design
  • Weight: 2.114lbs
  • CFNow! - this item ships 3 business days from order acknowledgement
  • Eligible to ship within 24 hours after order acknowledgement (customer pays freight)
  • Dual Supply for Hot and Cold Water Service
  • Operating static pressure: 20-125 PSI (138-862 kPa)
  • Minimum static pressure for mixing: 30 PSI (207 kPa)
  • Cold water inlet temperature range: 39-80F (4-27C)
  • Hot water inlet temperature range: 120-180F (49-82C)
  • Mixed water temperature range: up to 180F (82C)
  • Adjustable temperature control
  • Integral check valves for cross-flow protection
  • Powered by 4 \"AA\" Alkaline Batteries (Included)
  • Combine with EQ Spout assemblies (sold seperately)
  • Includes integrated control box: housing, solenoid valve, power source, mixing element, hose(s) to supply stop(s); mounting hardware
  • Installation should be done in accordance with local plumbing codes.
  • ECAST construction with equal to or less than 0.25% lead content by weighted averag
