Moen CFG 45514 Rough-in Volume Control Valve PEX

SKU: 63668
   based on 1 Reviews
Save 32% · Retail: $117.65

In Stock and Ready to Ship

Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Cleveland Faucet 45514

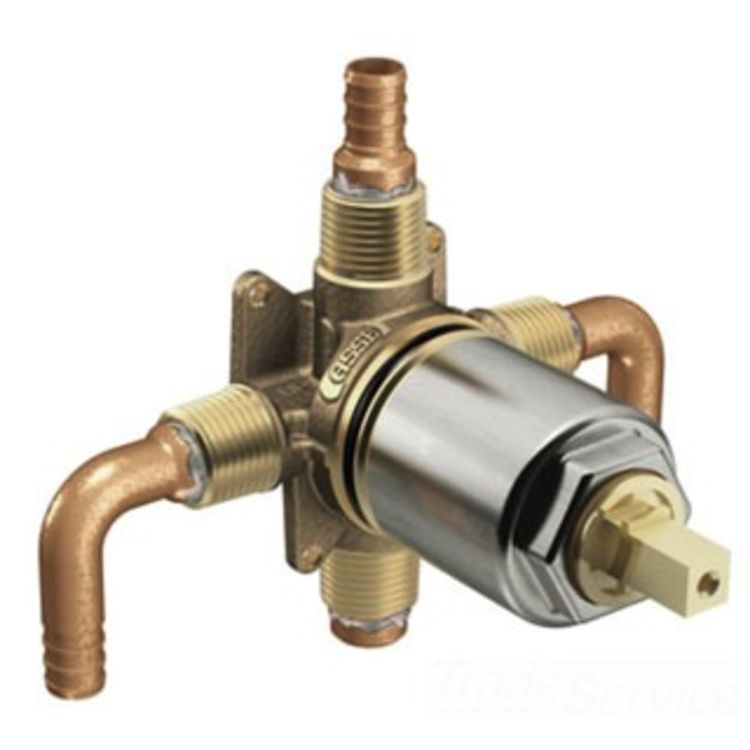

Moen CFG 45514 Rough-in Volume Control Valve - PEX Connection

Product Details

Manufacturer: Moen
Rough-In Valve Series: Pressure Balance
Number of Handles: Single handle
Installation Type: Tub and Shower Rough-In
Mpn # 45514
Shipping Dimensions 8.0" x 5.0" x 4.5"
Weight 2.79 lbs.

Product Features

  • Ceramic Disc Cartridge
  • Temperature Limit Stop
  • Integrated PEX Connections on Inlets & Shower Port
  • Combination 1/2" Male IPS / CC Connections on Tub Port


Rated 3 out of 5 based on 1 reviews

This particular volume control design has issues Rated 3 by Sally
  No, I do not recommend this product.
I have 11 CFG manufactured faucets all throughout my home and have been happy with them. They have been very trouble free. They were installed in 2009. I have 3 showers that use this particular model valve which is made by CFG in Ohio for Moen. The design on this pressure balance mechanism tends to cause it to get stuck closed, in particular on the cold water side. Unlike all the others you find including those made by CFG and Moen that use a turn screw for adjustment this appears to be an "auto" adjusting design that is an o-ring valve that when even the slightest hard water deposit or sediment builds up it seizes closed eventually slowing the cold water to a trickle. With some tight work I was able to remove the cap (the parts that look like a bolt on the water inlets) and completely removed the regulator from the cold side and then replaced the cap. So far I have found no negative to doing this and very happy to have normal shower pressure back. I would continue to use CFG manufactured faucets. Although, I cant recommend this particular design of the pressure control valve part on the water inputs. Look for the design that is adjustable with a screwdriver. The main control valve is fine.
Originally posted on Oct/2016
