Manufacturer: | Dunkirk |
Product: | Boiler |
Modus Operandi: | Oil-Fired |
Mount Type: | Floor Mount |
BTU Rate: | 105,000 BTU |
Electrical Voltage: | 120 Volt |
Height: | 31" |
Width: | 18-3/8" |
Amperage: | 15 amps |
Water Connection: | 1-1/4" NPT |
Energy Star Rated: | Yes |
Capacity: | 3.6 Gallons |
Motor Type: | Single Phase |
Other Info: | Grundfus Pump Included |
CSA Certified | |
ASME Certified | |
AHRI certified | |
Vent Type: | Chimney Vent |
Mpn # | EXB407530220203 |
Weight | 415.00 lbs. |

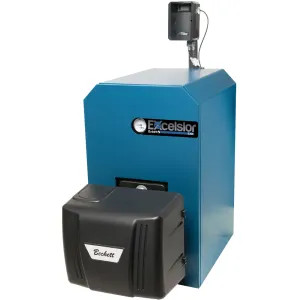

Save on the Dunkirk EXB4075 Excelsior EXB 3-Pass Boiler (105 Input MBH, 91 Heating Capacity MBH, 79 AHRI Net MBH, EXB407530220203) at PlumbersStock. This hot water boiler is oil-fueled and has an AFUE rating of 86%. It requires a 5" flue.
Return water supply is 1-1/4-inch NPT. It operates on 120 volts AC, 60 hertz, 1 phase at less than 12 amps. This model includes a chimney-vented configuration (8" x 8" x 15') and has a Taco pump. It also includes the HydroLevel control. This is a high-efficiency model. The High Limit Control is user-friendly and has an LED display. Easily access the heat exchanger with a dual hinge door.
** Due to this product's considerable weight and size our current shipping costs could fluctuate. Please call 435-868-4020 for today's shipping rates.
