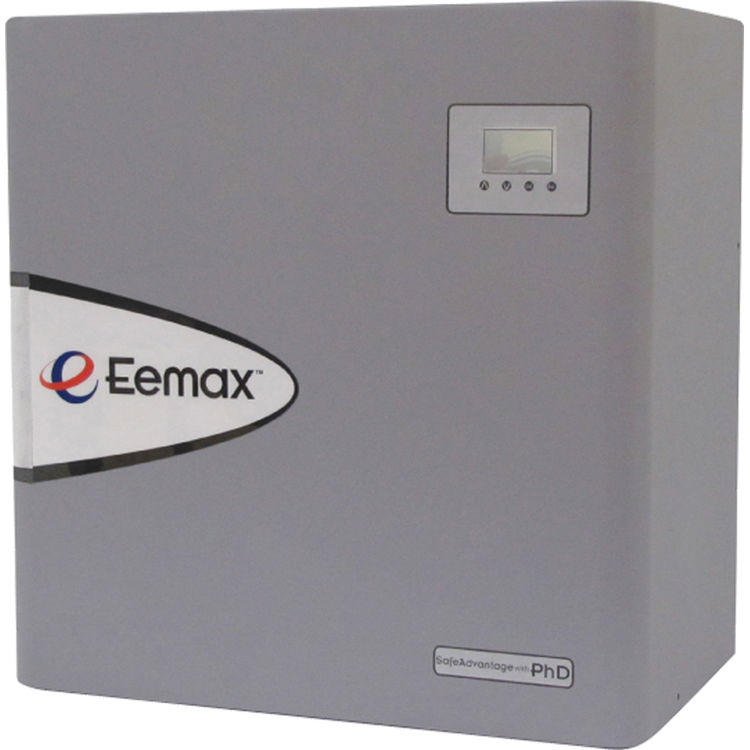

EEMAX AP032208 208V 32kW Electric Tankless Water Heater

SKU: 446697

 Free Shipping!
Save 30% · Retail: $5,454.96

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Eemax AP032208

The EEMax AP032208 Electric Tankless Water Heater is designed for high volume applications like commercial kitchens, emergency equipment, process heating, and even high demand domestic hot water situations. It is a revolutionary new product that has changed the water heating industry. Unlike Traditional water heaters that use a water replacement method where hot water leaves the tank and is replaced by cold water, the EEMax AP032208 Tank-less Water Heater has no tank, but rather has water flow through a series of heated coils as you use it, providing instant and virtually endless hot water. You will always have hot water whenever you need it. This System is also about 75% more efficient than a tank style water heater, so it practically pays for itself in no time at all. A 3-Phase, 208 Volt power supply is required to operate this wall hung tank-less water heater. The 1-1/4" NPT connections eliminate the need for soldering and help to ensure that it is field serviceable for maintenance or repair. This Eemax AP032208 Tankless Water Heater is also an American manufactured product with a Full 5-year Factory Warranty against Heater Body and Element Assembly leaks.

Product Details

Manufacturer: EEMax
Use: Commercial & Industrial
Product: Water Heater
Electrical Voltage: 208 Volt
Flow Rate: 40 GPM
Fuel Type: Electrical
Capacity: On Demand
Connection Size: 1-1/4"
Connection Type: Threaded
Vent Type: Vent Free
Water Heater Type: Tankless
Digital: Yes
Mpn # AP032208
Shipping Dimensions 31.0" x 24.0" x 15.0"
Weight 75.00 lbs.

Product Videos

Product Features

  • Water Connection: 1.25''
  • Plumbing Configuration: Bottom
  • Hot or Cold Feed: Pre-heated or Cold water Inlet
  • Adjustable Thermostat: Yes
  • Physical Max Volume: 40.0 gpm
  • Minimum Operating Temp: 60
  • Max Operating Temp: 140
  • Minimum Operating Pressure: 25 PSI
  • Max Pressure Rating: 150 PSI
  • Power: 32kW - Volts: 208V - Phase: Three - Amperage: 89 - Recommended Wire Size: 1AWG
  • Height: 17.7 inches
  • Width: 26.2 inches
  • Depth: 10.3 inches
  • Cover Material: 304 Stainless Steel enclosure
  • Element Type: Replaceable cartridge - bare wire
  • Element Material: Ni Chrome
  • Mounting - This family of Eemax products are to be mounted vertically with the water connections on the bottom. Inlet is on the right, outlet is on the left. This can not be reversed
  • Plumbing - Pre-heated or Cold water feed . This family of Eemax products has thermostatic control and is capable of reacting to changing temperatures while providing stable output.
  • Electrical - All Eemax Tankless Water Heaters are designed to be hardwire to a dedicated circuit breaker and are not supplied with a cord and plug
  • Proudly made In the USA
  • Field Serviceable - All major component are field replaceable and readily available
  • Reduces calcification and sedimentation
  • Prevents Legionella bacteria growth
  • Easy Installation - Simple NPT fittings that require no soldering. Unit mounts directly to the wall with common hardware.
  • Thermo optical sensor and predictive control algorithm ensures optimal heat management.
  • Reduces installation cost and material - No T&P valve required (check local codes)
  • Endless hot water - No storage capacity to deplete
  • 99% Efficient, .99 energy factor
  • Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
  • On demand hot water - no delay
  • Local Codes - Please check all applicable codes, national and local to ensure compliance both on the plumbing and electrical installation
  • Sizing - Size based on performance and not electrical infrastructure. Three key factors, incoming water temperature, water volume, and desired outlet temperature.
  • Combination eye/face/drench shower
  • Stand along Drench shower/drench hose
  • Stand along eye/face wash
  • Emergency Safety equipment
