Elkay CHSP1716LRS2 Single Bowl Handwash Sink

SKU: 74498
Save 37% · Retail: $1,107.00

See buying options below:

Ships From Price Qty
Iowa Warehouse
Ships in 1-3 Days
$817.67/ea 31
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Elkay CHS1716LRS2

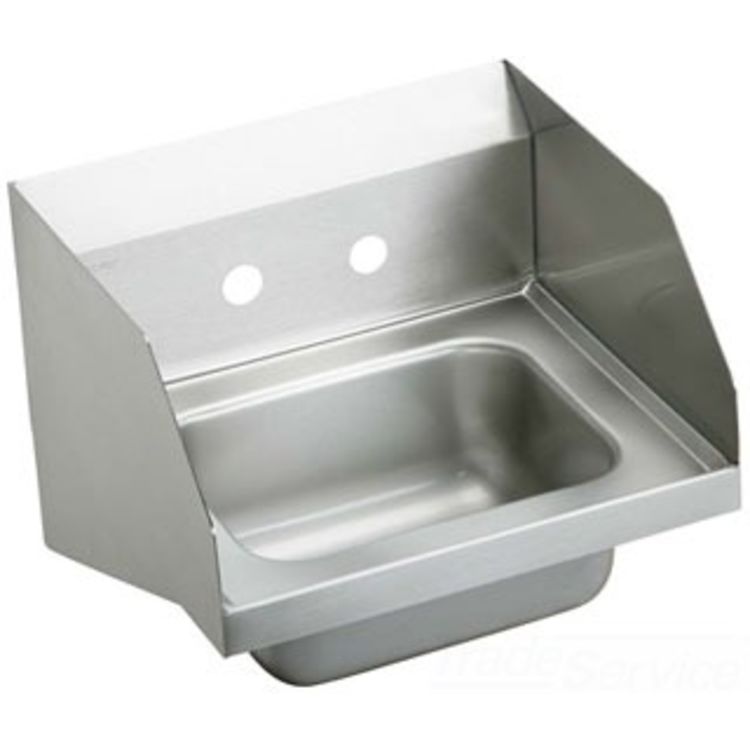

The Elkay CHSP1716LRS2 Single Bowl Handwash Sink. This stainless steel sink is rectangular-shaped and is designed for a wall mount installation. It has 7" (178mm) high splash guards on both sides of the sink. The Elkay CHSP1716LRS2 is from the commercial product collection. This is a 16-3/4 x 15-1/2 x 13-inch sink. The sink is furnished with two faucet holes. The 2-3/16" drain hole is located at the center of the bowl (refer to the specification sheet). The sink has a buffed satin finish and it is constructed of a high quality #14-gauge type 304 (18-8) nickel-bearing stainless steel. The sink is furnished with a wall hanger and integral stainless steel support brackets. The Elkay CHSP1716LRS2 Single Bowl Handwash Sink carries the NSF International Certification and complies with ASME A112.18.2/CSA B125.2. It has a limited lifetime warranty from the date of purchase. All Elkay products are made in the USA.

Product Details

Product: Educational
Manufacturer: Elkay
Material: Stainless Steel
Type: Handwash Sink
Style: Wall Mount
Rough-In Valve Series: Wall Mount
Product Collection:
Product Theme: Transitional
Number of Holes: 2 Hole
Shape: Rectangle
Room: Utility Room
Installation Type:
Material Gauge: 14 Gauge
Depth: 12" up to 24" Deep
Mpn # CHS1716LRS2
Shipping Dimensions 17.1" x 14.8" x 19.0"
Weight 21.30 lbs.
Shipping Dimensional Weight 27.26 lbs.

Product Features

  • High quality stainless steel hand wash sink
  • Full length backsplash
  • Coved corners
  • 7" (178mm) high right and left side splashes
  • Basin has 1-3/4 inches (45mm) radius coved corners.
  • Full length 7 inches (178mm) high backsplash.
  • Exposed surfaces have a brushed finish.
  • Furnished with a wall hanger and integral stainless steel support brackets.
  • Carries NSF International Certification.
