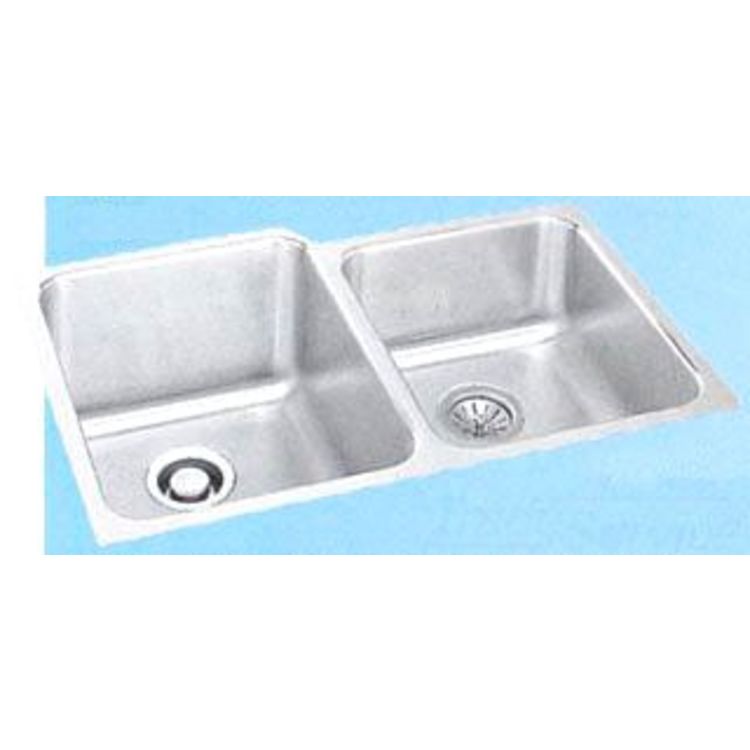

Elkay ELUH3120LDBG Gourmet Lustertone Stainless Steel Double Bowl Sink Package

SKU: 80673
Save 54% · Retail: $1,133.00

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Elkay ELUH3120LDBG

The Elkay ELUH3120LDBG, a Gourmet product, is a stainless steel single bowl sink package. This rectangular nickel-bearing stainless steel sink is designed for an under mount installation. The sink is furnished with the LKWOBG1418SS bottom grid and the LK99 drain. This Elkay ELUH3120LDBG Double Bowl Sink is from the Gourmet (Lustertone) Collection, designed for efficiency and functionality. ELUH sinks have been re-designed to accommodate 1/2” reveal and no-reveal installation options. Its overall dimensions are 31-1/4" in length with 20-1/2" in width and 9-7/8” in depth. The left bowl is 13-1/2" long, 16" wide and 7-7/8" deep while the right bowl is 14" long, 18" wide and 9-7/8" deep. This sink has no faucet hole. The 3-1/2” drain openings are located at the rear center of each bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a lustrous highlighted satin finish. The underside has the patented Sound Guard for sound deadening and to prevent condensation. This Elkay ELUH3120LDBG Gourmet (Lustertone) Sink complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Material: Stainless Steel
Style: Large/ Small Bowl
Product Collection: Gourmet
Type: Sink
Room: Kitchen
Material Gauge: 18 Gauge
Other Info: Drain Not Included
Shape: Rectangle
Use: General use
Depth: 8" up to 10" Deep
Mount Type: Under Mount
Mpn # ELUH3120LDBG
Shipping Dimensions 26.4" x 37.9" x 12.7"
Weight 27.20 lbs.
Shipping Dimensional Weight 72.03 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel.
  • Type 304 nickel bearing stainless steel.
  • Under mount.
  • Requires a minimum of 36 cabinet size.
  • Each sink is furnished with a bottom grid LKWOBG1418SS and a Drain LK99.
  • Bowl Depth: the large bowl is 9-7/8 inches and the small bowl is 7-7/8 inches.
  • Exposed surfaces are hand blended to a lustrous highlighted satin finish.
  • Fully protected by Sound Guard undercoating to dampen sound and prevent condensation.
  • Drain Opening: 3-1/2 inches.
  • The L in the product designation indicates that the large bowl is on the right and the small bowl is on the left.
  • This undermount sink is designed to affix to the underside of any solid surface countertop.
  • The sink complies with ASME A112.19.3/ CSA B45.4.
  • This sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code, International Plumbing Code, and National Plumbing Code of Canada.
  • The accessories comply with ASME A112.18.2/CSA B125.2.
  • Optional Accessories: Bottom Grid (LKWOBG1316SS), Cutting Board (CBR1418, CBS1418, CB1613, CB1713, CBR1316 or CBS1316 with a sink reveal required for proper fit), Faucet (LKGT1041 or LKGT2041), Hardware (LKUCLIP8 with 2 required), Rinsing Basket (LKWRB1418SS, LKWERBSS or LKWRB1316SS), Sinkmate (LKSM17, LKSMHOOK, LKSMSPONGE or LKSMHSL) and Soap Dispenser (LKGT1054).


4.5 out of 5 rating is our rating for, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!
