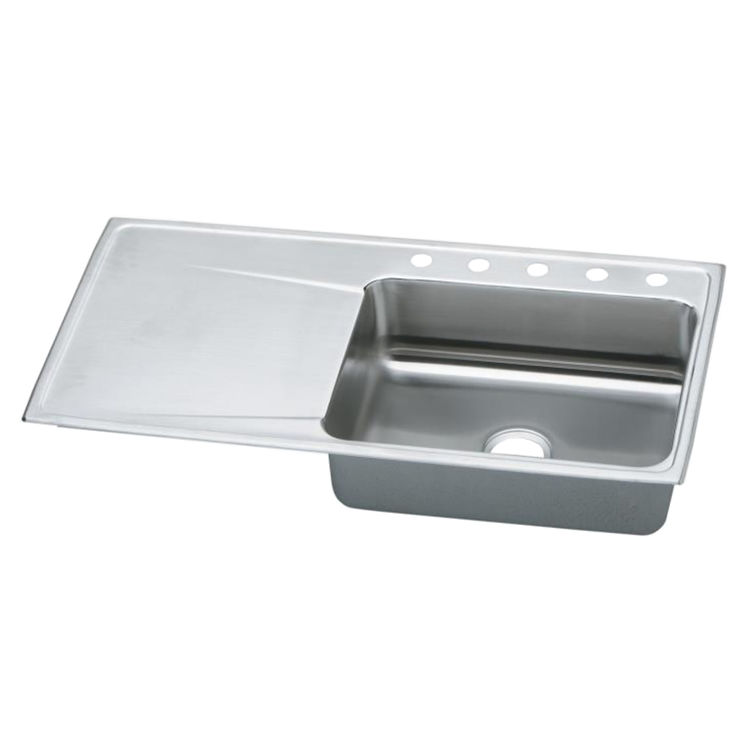

Elkay ILR4322R5 Gourmet Stainless Steel Single Bowl Sink

SKU: 80411

$701.88/ea
Save 54% · Retail: $1,540.00

See buying options below:




Ships From Price Qty
Ohio Warehouse
Ships in 1-3 Days
$704.66/ea 2
Iowa Warehouse
Ships in 1-3 Days
$941.76/ea 3
Order From Manufacturer
Available to Ship in 2-3 weeks
$701.88/ea

About the Elkay ILR4322R5

The Elkay ILR4322R5, a Gourmet product, is a stainless steel single bowl sink. This rectangular stainless steel sink is designed for a top mount installation. It features a built-in drainboard. This Elkay ILR4322R5 single bowl sink is from the Gourmet (Lustertone) Collection, designed for efficiency and functionality. Its overall dimensions are 43" in length with 22" in width and 7-5/8” in depth while the bowl is 22” long, 16” wide and 7-1/2” deep with a 19-1/2” left drainboard. This sink has 5 faucet holes. The 3-1/2” drain opening is located at the center of the bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a lustrous highlighted satin finish. The bottom and sides of the bowl are fully sprayed for sound deadening and to prevent condensation. This Elkay ILR4322R5 Gourmet (Lustertone) sink complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Style: One Bowl
Installation Type: 5 Hole
Product Collection: Gourmet
Other Info: Drain Not Included
Use: General use
Room: Kitchen
Material Gauge: 18 Gauge
Color: Stainless Steel
Mpn # ILR4322R5
Shipping Dimensions 26.4" x 48.8" x 10.7"
Weight 29.25 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel.
  • Type 304 nickel bearing stainless steel.
  • Top mount.
  • Requires a minimum of 48 cabinet size.
  • Bowl Depth: 7-1/2 inches.
  • Drain opening: 3-1/2 inches (89mm).
  • Exposed surfaces are hand blended to a Lustrous Highlighted Satin.
  • Fully sprayed sides and bottom to dampen sound and reduce condensation.
  • The R in the product designation indicates that the bowl is on the right and the drainboard is on the left.
  • Sink complies with ASME A112.19.3/ CSA B45.4.
  • The sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code, International Plumbing Code, and National Plumbing Code of Canada.
  • Optional Accessories: Bottom Grid (LKWBG2115SS), Cutting Board (CB1713 or CBS1316), Drain (LK99), Faucet (LKGT1041 or LKGT2041), Hardware (LK364 or LK463), Rinsing Basket (LKWRB2115SS or LKWERBSS), Sinkmate (LKSM17, LKSMHOOK, LKSMSPONGE or LKSMHSL) and Soap Dispenser (LKGT1054).
  • Drop-in Sink-ette with single drainboard.
  • The ideal solution for where to place a hot pot!
  • Highest quality.
  • Bowl and integral fan-pitched drainboard seamlessly formed from nickel bearing stainless steel.
  • Bowl depth: 7 5/8 inch
  • 1 inch radius coved corners.
  • Exposed surfaces hand-blended to a lustrous, highlighted Lustertone satin finish.
  • Underside is fully undercoated.
  • Drain opening is 3 1/2
  • 43 inch x 22 inch
  • Single Bowl - Single Drainboard
  • 18 Gauge - Type 304 - Self Rim. Stainless steel
  • Bowls and integral fan - pitched drainboard seamlessly formed from nickel bearing stainless steel
  • 1.75 inch Radius coved corners
  • Exposed surfaces hand - blended to a lustrous, highlighted Lustertone satin finish
  • Standard three faucet holes furnished unless otherwise specified
