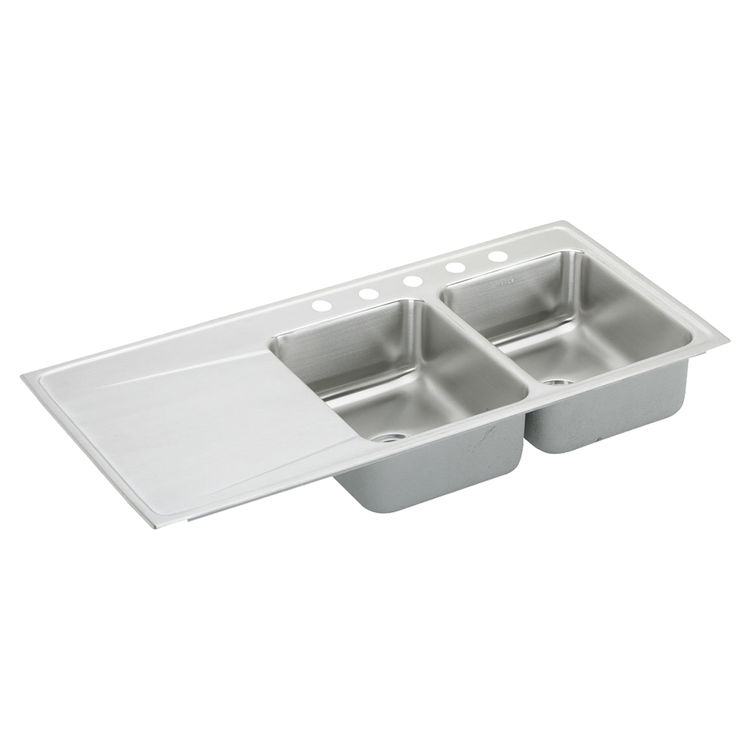

Elkay ILR4822R5 Gourmet (Lustertone) Stainless Steel Double Bowl Sink

SKU: 80397

$894.84/ea
Save 56% · Retail: $2,023.00

See buying options below:




Ships From Price Qty
Ohio Warehouse
Ships in 1-3 Days
$988.51/ea 1
Iowa Warehouse
Ships in 1-3 Days
$1,237.15/ea 3
Order From Manufacturer
Available to Ship in 2-3 weeks
$894.84/ea

About the Elkay ILR4822R5

The Elkay ILR4822R5, a Gourmet product, is a stainless steel double bowl sink. This stainless steel sink is designed for a top mount installation. It features a built-in drainboard. This Elkay ILR4822R5 double bowl sink is from the Gourmet (Lustertone) Collection, designed for efficiency and functionality. Its overall dimensions are 48" in length with 22" in width and 7-5/8” in depth while the bowls are 13-1/2” long, 16” wide and 7-1/2” deep with a 17-7/8” left drainboard. This sink has 5 faucet holes. The 3-1/2” drain openings are located at the center of each bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a lustrous highlighted satin finish. The bottoms and sides of the bowls are fully sprayed for sound deadening and to prevent condensation. This Elkay ILR4822R5 Gourmet (Lustertone) sink complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Style: Two Bowls
Installation Type: 5 Hole
Product Collection: Gourmet
Color: Stainless Steel
Material Gauge: 18 Gauge
Other Info: Drain Not Included
Room: Kitchen
Use: General use
Mpn # ILR4822R5
Shipping Dimensions 26.4" x 53.8" x 10.7"
Weight 35.00 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel.
  • Type 304 nickel bearing stainless steel.
  • Top mount.
  • Requires a minimum of 51 cabinet size.
  • Bowl Depth: 7-1/2 inches.
  • Drain opening: 3-1/2 inches (89mm).
  • Exposed surfaces are hand blended to a Lustrous Highlighted Satin.
  • Fully sprayed sides and bottom to dampen sound and reduce condensation.
  • The R in the product designation indicates that the bowls are on the right and the drainboard is on the left.
  • Sink complies with ASME A112.19.3/ CSA B45.4.
  • The sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code, International Plumbing Code, and National Plumbing Code of Canada.
  • Optional Accessories: Bottom Grid (LKWBG1316SS), Cutting Board (CB1613, CB1713, CBR1316 or CBS1316), Drain (LK99), Faucet (LKGT1041 or LKGT2041), Hardware (LK364 or LK463 with 2 required), Rinsing Basket (LKWRB1316SS or LKWERBSS), Sinkmate (LKSM17, LKSMHOOK, LKSMSPONGE or LKSMHSL) and Soap Dispenser (LKGT1054).
  • Highest quality Lustertone sink bowls and integral fan pitched drainboard seamlessly drawn of #18 gauge
  • type 304 (18-8) nickel bearing stainless steel.
  • Bowl Depth: 7-1/2 in.
  • Finish: Exposed surfaces are hand blended to a lustrous highlighted Lustertone satin finish.
  • Made in the USA
  • This sink comes with coved corners: 1-3/4 in. (44mm) vertical and horizontal radius.
  • This sink is fully protected by a heavy duty sound guard undercoating which prevents condensation and dulls sound.
  • The sink drain opening is located at the center of the bowl.
  • This sink is self-rimming sink
  • Elkay Limited Lifetime Warranty covers manufacturing defects after normal use
  • Lustertone Sink-ette Sink
  • Double Bowl Sink with Single Drainboard
  • This 2 bowls are 13-1/2 inches long, 16 inches wide, 7-1/2 inches deep
  • Drain Opening: 3-1/2 in.
  • Faucet Holes: Available with 1, 2, 3 or 4, 1-1/2 in. diameter faucet holes, 4in. center to center.
  • Sink bowls are left of drainboard.
