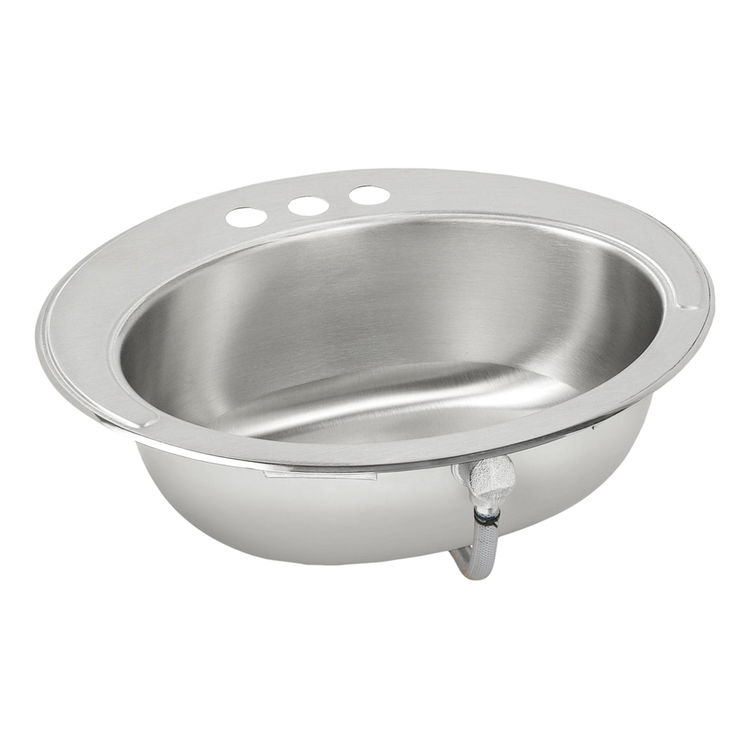

Elkay LLVR19160 Elkay LLVR1916 Asana/Lustertone Stainless Steel Single Bowl Lavatory Sink

Product Options

Elkay LLVR1916 Asana/Lustertone Stainless Steel Single Bowl Lavatory Sink

SKU: 80104
$726.70/ea
Save 53% · Retail: $1,550.00

  Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$726.70/ea

About the Elkay LLVR19160

The Elkay LLVR1916 Asana/Lustertone Stainless Steel Single Bowl Lavatory Sink. This nickel-bearing stainless steel sink is designed for top mount installation. This sink comes with an overflow assembly. The Elkay LLVR1916 is from the Asana Collection, designed for efficiency and functionality. This sink has overall dimensions of 19-5/8" length with 16-11/16” width and the bowl is 15-1/2” long, 11-3/8” wide and 6" deep. This sink does not have a faucet hole. The drain opening's size is 1-1/2" and 2-1/4" O.D. at the top of the countersink (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a lustrous highlighted satin finish. The underside is fully sprayed for sound deadening and to prevent condensation. The Elkay LLVR1916 complies with ASME A112.19.3-2008/CSA B45.4-08 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Manufacturer: Elkay
Style: Self Rimming
Product Collection: Asana
Material Gauge: 18 Gauge
Depth: 5" - 6"
Room: Bathroom
Shape: Round
Color: Stainless Steel
Mount Type: Drop-in
Product: Sink
Mpn # LLVR19160
Shipping Dimensions 24.4" x 26.4" x 9.7"
Weight 8.25 lbs.
Shipping Dimensional Weight 35.40 lbs.
  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Top mount.
  • Embossed faucet deck on back ledge
  • Requires a minimum of 24 cabinet size
  • Bowl Depth: 6 inches
  • Exposed surfaces are hand blended to a lustrous highlighted satin finish.
  • Fully sprayed undercoating to deaden sound and prevent condensation.
  • The drain opening is 1-1/2 inches
  • Faucet holes on 4-inch center
  • Arranged for standard lavatory type drain fitting
  • LLVR1916 single bowl lavatory sinks comes with LKF293 overflow assembly
  • This sink complies with ASME A112.19.3-2008/CSA B45.4-08
  • This sink is compliant to ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards.
