Elkay LLVR19163 Asana/Lustertone Stainless Steel Single Bowl Lavatory Sink

SKU: 80101

Save 48% · Retail: $1,030.00

In Stock and Ready to Ship

Ships From Price Qty
Ohio Warehouse
Ships in 1-4 Days
$534.81/ea 1
NewYork Warehouse
Ships in 1-4 Days
$550.93/ea 1
Iowa Warehouse
Ships in 1-4 Days
$593.27/ea 29
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Elkay LLVR19163

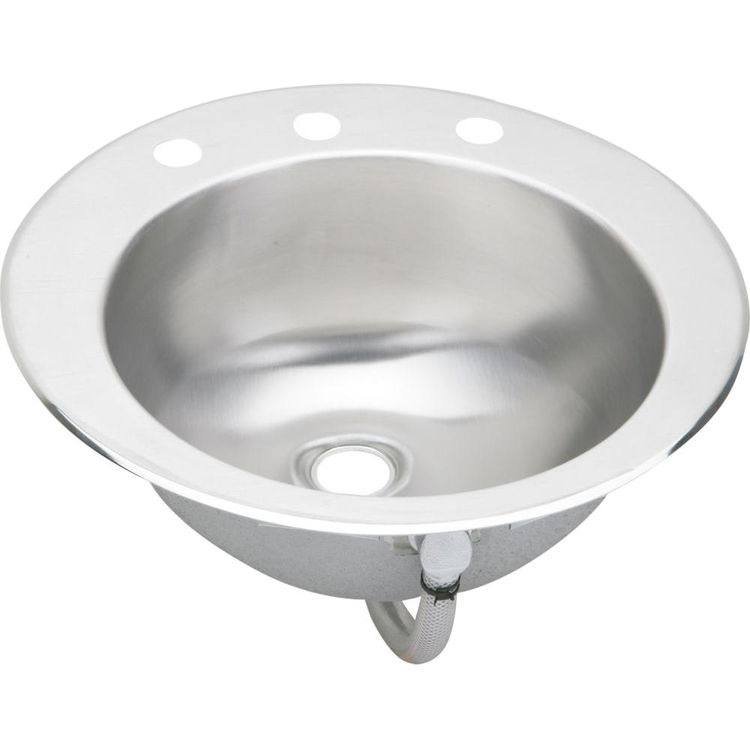

The Elkay LLVR19163 Asana/Lustertone Stainless Steel Single Bowl Lavatory Sink. This nickel-bearing stainless steel sink is designed for top mount installation. This sink comes with an overflow assembly. The Elkay LLVR19163 is from the Asana Collection, designed for efficiency and functionality. This sink has overall dimensions of 19-5/8" length with 16-11/16” width and the bowl is 15-1/2” long, 11-3/8” wide and 6" deep. This sink has 3 faucet holes. The drain opening's size is 1-1/2" and 2-1/4" O.D. at the top of the countersink (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a lustrous highlighted satin finish. The underside is fully sprayed for sound deadening and to prevent condensation. The Elkay LLVR19163 complies with ASME A112.19.3-2008/CSA B45.4-08 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Style: Self Rimming
Product Collection: Asana
Number of Holes: 3 Hole
Material Gauge: 18 Gauge
Room: Bathroom
Product: Sink
Color: Lustertone
Mount Type: Drop in
Depth: 5" - 6"
Shape: Round
Mpn # LLVR19163
Shipping Dimensions 24.4" x 26.4" x 9.7"
Weight 8.25 lbs.
Shipping Dimensional Weight 35.40 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Top mount.
  • Embossed faucet deck on back ledge
  • Requires a minimum of 24 cabinet size
  • Bowl Depth: 6 inches
  • Exposed surfaces are hand blended to a lustrous highlighted satin finish.
  • Fully sprayed undercoating to deaden sound and prevent condensation.
  • The drain opening is 1-1/2 inches
  • Faucet holes on 4-inch centers
  • Arranged for standard lavatory type drain fitting
  • LLVR19163 single bowl lavatory sinks comes with LKF293 overflow assembly
  • This sink complies with ASME A112.19.3-2008/CSA B45.4-08
  • This sink is compliant to ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards.
