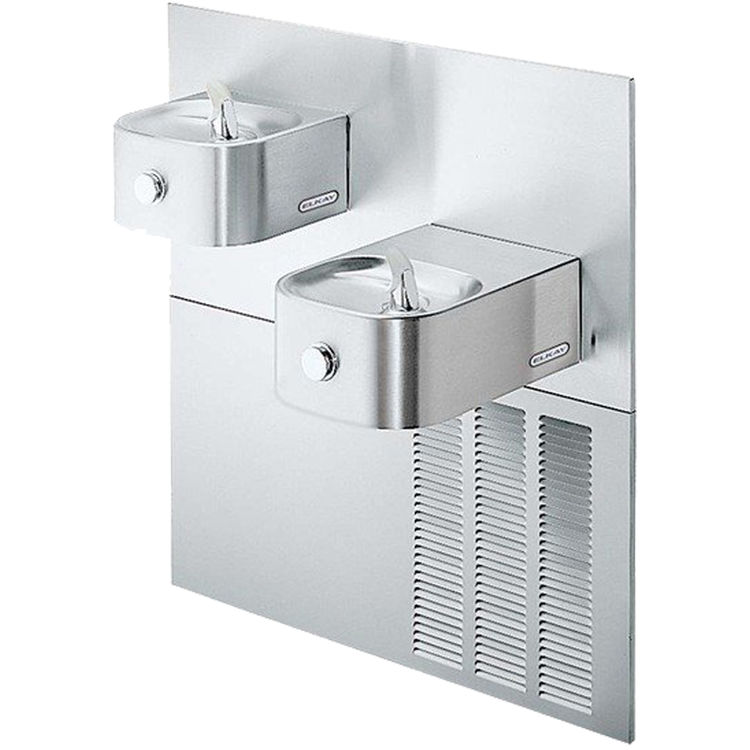

Elkay LNTEM83K Bi-Level Soft Sides Fountain w/ Filter & Chiller, 220V

SKU: 241228

 Free Shipping!
Save 38% · Retail: $4,127.00

  Available to Ship in 1-2 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Elkay LNTEM83K

The Elkay LNTEM83K bi-level Soft Sides fountain (220V/60Hz) includes a WaterSentry VII filter system and 8-gallon-per-hour chiller. This ADA-compliant water cooler provides a lower fountain with barrier-free access on the right and a standard-height fountain on the left. It features sturdy, 300-series stainless steel construction with softly rounded corners, a polished satin finish, and high-shine outer edges that give this two-station drinking fountain a lustrous, clean, and welcoming appearance. The FlexiGuard Safety bubblers are easy to operate with front-push, vandal-resistant buttons, and the contoured basins are designed to minimize splashing. This Elkay wall-mount, refrigerated fountain was built for indoor installation; and the model LNTEM83K unit comes with the MF200 in-wall mounting frame. The Elkay LNTEM83K bi-Level Soft Sides fountain is protected by a 5-year limited warranty. A trusted, family-owned and operated American company since 1920, Elkay continues to innovate and lead the industry in manufacturing high-quality sinks, faucets, water coolers, drinking fountains, and bottle fillers as well as bath and kitchen products for both residential and commercial installations.

Product Details

Manufacturer: Elkay
Electrical Voltage: 220-240 Volt
Mount Type: Wall Mount
Product: Water Fountain
Style: Chiller
Use: Commercial & Industrial
Mpn # LNTEM83K
Weight 131.00 lbs.

Product Features

  • Built in the USA.
  • ADA Compliant.
  • Stainless steel polished to lustrous satin finish.
  • Soft Sides architectural refrigerated fountain features softly rounded corners.
  • Contoured basins offer large strike area to minimize splashing.
  • WaterSentry VII 1500-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor).
  • Rated for indoor use.
  • Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
  • Condenser: Fan cooled. Fan motor is permanently lubricated.
  • Cooling Unit: Combination tube-tank type. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
  • Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
  • Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements, easily accessible by removing lower grille panel.
  • Two-level fountain furnished complete with Flexi-Guard Safety Bubbler fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel. LK464 drain & trap assembly included.
  • Includes removable stainless steel front lower panel with ventilating grille that encloses refrigeration and plumbing.
  • Bottom cover plate prevents vandalism.
  • MF200 Mounting Frame is included with Models LNTEM8K, LNTEM8FK, LNTEM82K, and LNTEM83K. Frame allows flush mounting to finished wall.
  • Replacement Filter: Order part number: 51299C (single)
  • Cooler Dimensions: Length = 38-1/2" Width = 18-5/8" Height = 40-7/8"
  • Product Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF 42, NSF 53, NSF 61, NSF 372 (lead free), UL 399
  • Warranty: 5-year limited warranty on unit's refrigeration system. Electrical components and water system are warranted for 12 months from date of installation or 18 months from factory shipment, whichever date falls first.
