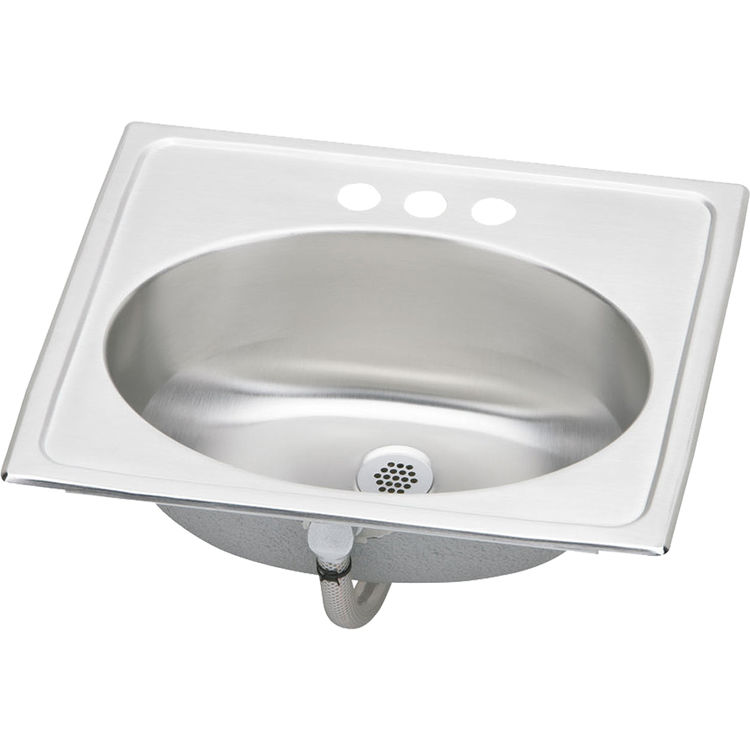

Elkay PSLVR1916CS3 Asana Stainless Steel Single Bowl Lavatory Sink

SKU: 77774

$307.04/ea
Save 54% · Retail: $667.00

See buying options below:



Ships From Price Qty
Iowa Warehouse
Ships in 1-3 Days
$426.56/ea 2
Order From Manufacturer
Available to Ship in 4-5 weeks
$307.04/ea

About the Elkay PSLVR1916CS3

The Elkay PSLVR1916CS3 Asana Stainless Steel Single Bowl Lavatory Sink. This nickel-bearing stainless steel sink is designed for top mount installation. This sink comes with an overflow assembly. The Elkay PSLVR1916CS3 is from the Asana Collection, designed for efficiency and functionality. This sink has overall dimensions of 19" length with 17” width and the bowl is 15-1/2” long, 11-3/8” wide and 6" deep. This sink has 3 faucet holes. The drain opening's size is 1-5/8", 2-1/4" O.D. at the top of the countersink (refer to the specification sheet). The exposed surfaces of this #20-gauge sink have been polished to a brilliant satin finish. The underside is fully sprayed for sound deadening and to prevent condensation. The Elkay PSLVR1916CS3 complies with ASME A112.19.3-2008/CSA B45.4-08 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product:
Manufacturer: Elkay
Material: Stainless Steel
Type: Sink
Style: Self Rimming
Installation Type:
Product Collection: Asana
Number of Holes: 3 Hole
Shape: Square
Color:
Material Gauge: 20 Gauge
Other Info: Drain Not Included
Use: General use
Size:
Room: Bathroom
Mpn # PSLVR1916CS3
Shipping Dimensions 24.4" x 26.4" x 8.7"
Weight 8.00 lbs.
Shipping Dimensional Weight 31.74 lbs.

Product Features

  • Highest quality sink formed of #20 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Top mount.
  • Requires a minimum of 24 cabinet size
  • Bowl Depth: 6 inches
  • Arranged for standard lavatory type pop-up drain fitting.
  • Exposed surfaces are hand blended to a bright satin finish.
  • Fully sprayed undercoating to deaden sound and prevent condensation.
  • The drain opening is 1-5/8 inches
  • This sink is furnished with a CS3 faucet hole configuration.
  • This sink complies with ASME A112.19.3-2008/CSA B45.4-08
  • This sink is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada.
  • This sink is compliant to ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards.
