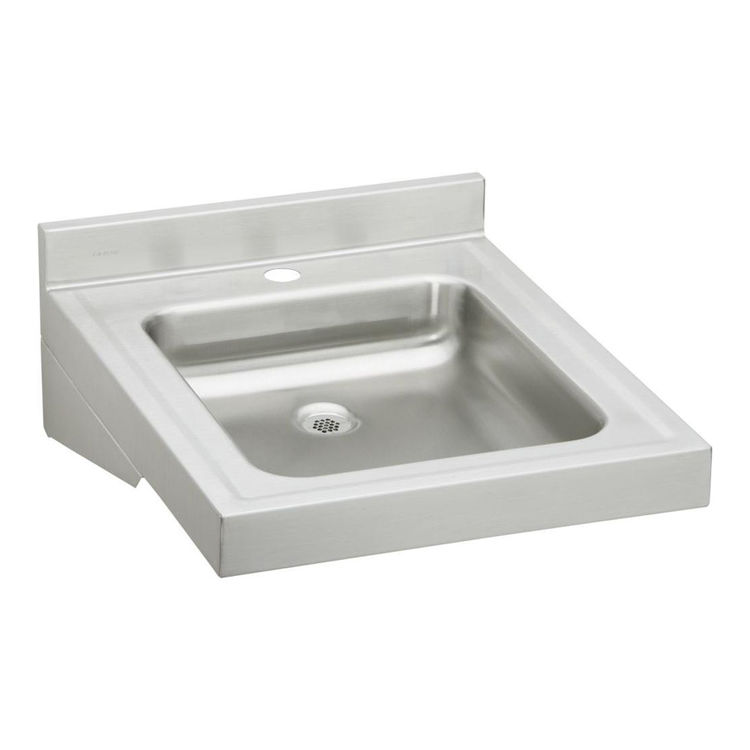

Elkay WCL1923OSD1 Wheelchair Lavatory Stainless Steel Single Bowl Sink Package

SKU: 73097
Minimum Quantity: 1

$717.44/ea
Save 43% · Retail: $1,260.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$717.44/ea

About the Elkay WCL1923OSD1

The Elkay WCL1923OSD1 Wheelchair Lavatory Stainless Steel Single Bowl Sink Package. This sink is designed for a wall mount installation. The sink is furnished with the LKAD174 drain. The Elkay WCL1923OSD1 Single Bowl Sink is designed for efficiency and functionality. The overall dimensions of the sink are 23" in length and 19" in width while the bowl is 13-1/2" long, 16" wide and 4" deep. This sink has 1 faucet hole. The 1-5/8” drain opening is located at the rear center of the bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a uniform satin luster finish. The underside of the sink is fully coated for sound-deadening and to reduce condensation. The Elkay WCL1923OSD1 Wheelchair Sink complies with ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product:
Manufacturer: Elkay
Material: Stainless Steel
Type: Sink
Style: Wall Mount
Installation Type:
Size:
Product Collection:
Other Info: Drain Included
Number of Holes: 3 Hole
Shape: Rectangle
ADA:
Room: Bathroom
Material Gauge: 18 Gauge
Mount Type:
Mpn # WCL1923OSD1
Shipping Dimensions 26.0" x 11.0" x 24.0"
Weight 17.25 lbs.
Shipping Dimensional Weight 38.92 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Stainless steel wheelchair lavatory with 5/32 inch (4mm) raised rim.
  • Wall mount.
  • Includes the drain LKAD174.
  • Bowl Depth: 4 inches.
  • Exposed surfaces are hand blended to a uniform satin luster finish.
  • Unexposed underside is fully undercoated to reduce condensation and dampen sound.
  • Furnished with separate wall hanger, integral stainless steel support brackets and grid strainer with elbow and offset tailpiece.
  • LKAD174 is a chrome-plated, perforated strainer grid with a cast-brass elbow and 1-1/4 inches offset tailpiece.
  • Rear centered drain outlet with drain opening size 1-5/8 inches (41mm).
  • With connected overflow.
  • This sink meets ADA requirements.
