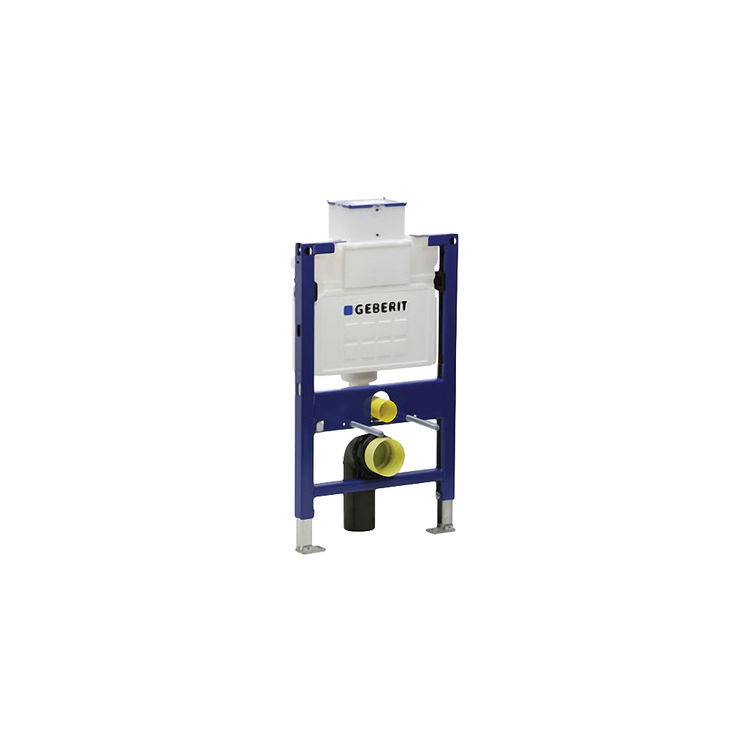

Geberit Concealed Installation Tank For Wall-hung Washdown Toilets

SKU: 408381

In Stock and Ready to Ship

Ships From Price Qty
Tennessee Warehouse
Ships in 1-4 Days
$337.60/ea 1

About the Geberit

Geberit Concealed Installation Wall-hung Wash-Down Toilet Tank. The Geberit Group is the European market leader in bathroom innovations and technology. Their high-end products provide over 40 countries a unique alternative to the traditional toilet and sanitary systems. The concealed tanks and carrier systems improve the look of any bathroom by placing the toilet tank within the wall. Their wide range of durable and Eco-friendly products vary from wall/floor mounted toilets to piping systems and everything in between. This Geberit Concealed Installation Wall-Hung Wash-Down Toilet Tank is a DuoFix carrier installation frame designed for Wash-Down toilets. This 32" dual flush tank is for use with the UP200 toilets. This system includes the flush tank, metal frame, and the mounting hardware for the toilet and carrier frame. The Wall-Hung Tank hardware is durable enough to support 880 pounds. This carrier frame is ideal for residential and light commercial grade applications.

Product Details

Manufacturer: Geberit
Mount Type: Wall Mount
Product: Bathroom Part & Accessories
Use: Commercial
Flow Rate: 1.6 Gallons Per Flush
Mpn #
Shipping Dimensions 33.0" x 20.7" x 7.0"
Weight 29.37 lbs.

Product Features

  • Duofix carrier installation frame for wallhung washdown WC with UP200 concealed dualflush tank, height 32 in (82 cm).
  • For WC with dual flush lowconsumption flushing volume of 1.6 / 0.8 GPF (6 / 3 LPF)
  • For WC seated heights of 15" to 19"
  • Supports up to 880 lbs (400 kg)
  • Water supply connection at left back or at the top
  • Selflocking feet for toolfree alignment of the element
  • Feet galvanized, infinitely adjustable 0 4 in (0 10 cm)
  • Concealed cistern fully insulated against condensation
  • Fill valve flow rate at 7 psi (0.5 bar): 1.1 gpm (0.07 l/s)
  • Fill valve flow rate at 43 psi (3 bar): 3.0 gpm (0.19 l/s)
  • Flush volume: 1.6/0.8 GPF (6/3 LPF)
  • For installation of UP200 concealed flush tanks for wallhung washdown WC
  • Fill valve operating pressure range: 1 145 psi (0.1 10 bar)
  • Includes: (1) M12 3/8in Hammer Drill/Driver (2408-20 (1) Belt Clip
  • Tank and frame, water supply and drainage elbow
  • 2 threaded rods M12 for ceramics fastening
  • Impuls380 fill valve
  • Fastening material
  • For installation in wood or steel stud walls that provide support equal to 6.75" depth
  • For dual flush
  • For room wall or preWall construction covered with panels (gypsum or wood)
  • For installation in front of a solid or drywall
  • For installation in roomheight preWall or partition wall
  • For a floor construction of 0 4 in (0 10 cm)
  • For 2hole wallhung washdown WC with fastening distance 7.1 in (18 cm) or 9.1 in (23 cm)
