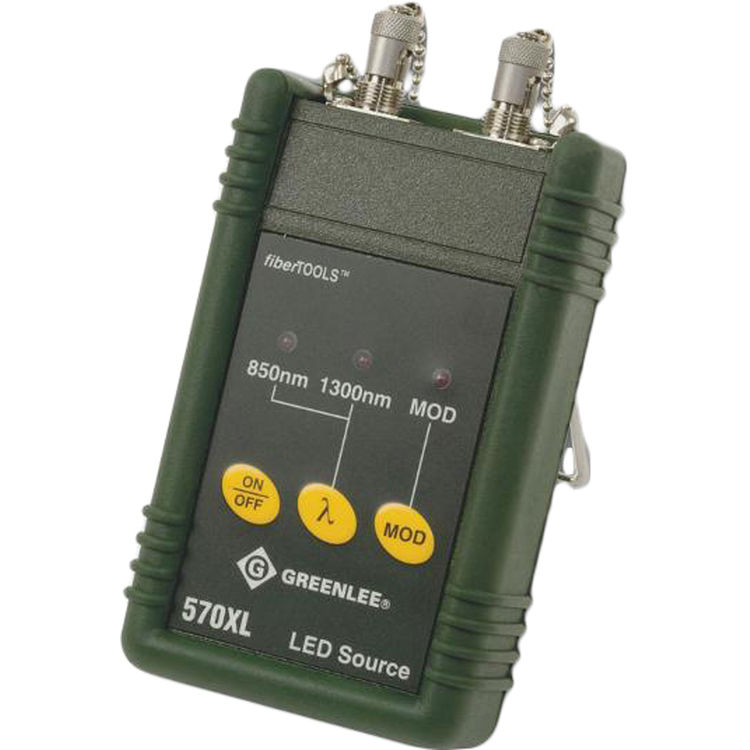

Greenlee 570XL-ST LED Source (850/1300nm)

SKU: 273645
Minimum Quantity: 1

$778.72/ea
Save 9% · Retail: $860.30

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$778.72/ea

About the Greenlee 570XL-ST

The Greenlee 570XL-ST LED Source (850/1300nm) is part of Greenlee's premium collection of tools and accessories. This LED source is designed for 850/1310nm wavelengths, is easy to use, and has a stable, calibrated output. It has a fixed connect interface for ST, a long 80-hour battery life, and a rugged splash-proof design.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Type: Electric
Mpn # 570XL-ST
Weight 0.60 lbs.

Product Features

  • 850/1300nm wavelengths
  • Connector interface : FC, SC Or ST
  • Dimensions : 2.800 IN (7.200 CM) X 5.600 IN (14.200 CM) X 1.400 IN (3.500 CM)
  • Humidity : 0 To 95 PCT Non-Condensing
  • Max Spectral Width : 55 NMTR, 150 NMTR
  • Measuring Range : 840 NMTR To 880 NMTR, 1270 NMTR To 1345 NMTR
  • Modulation Frequency : 270 KHZ, 1 KHZ And 2 KHZ
  • Power Supply : Two AA Size 1.5 V Batteries
  • Stability : Plus Or Minus 0.05 DB For 1 HR
  • Standard : EN61010 EN50081-1: 1992 EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3,-4
  • Storage/Operating Temperature : -15 To 55 DEG C-35 To 70 DEG C
  • Stable calibrated output.
  • Typical Power Output 9125 : -13 DBM, -20 DBM For 100/140 UM, -13 DBM, -20 DBM For 62.5/125 UM -14 DBM, -21 DBM For 50/125 UM
  • Wavelength : 850 NMTR Center, 1300 NMTR Center
  • Weight : 241.000 GM (8.500 OZ)
  • Easy to use
  • Continuous wave and modulated output
  • Fixed connector interface FC, SC or ST
  • Long battery life - approx. 80 hours
  • User selectable auto shut-off
  • Rugged and splash-proof
  • Economically priced
