Greenlee 57MU-LFM Greenlee 57MU-LFM Single-Mode Reference Cables

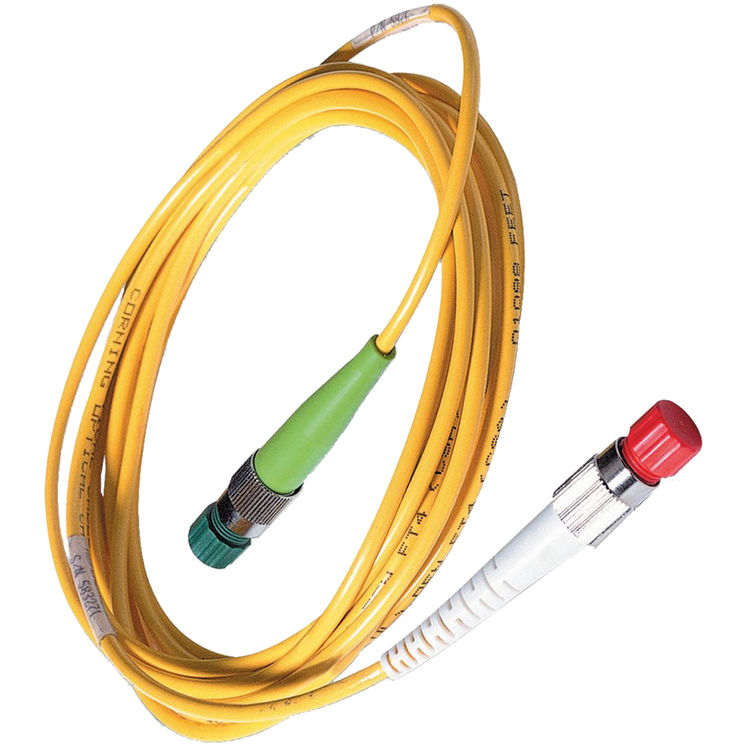

Greenlee 57MU-LFM Single-Mode Reference Cables

SKU: 273661
$ 240.35 / ea
Save 8% · Retail: $260.03

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$240.35/ea ∞

About the Greenlee 57MU-LFM Single-Mode Reference Cables

The Greenlee 57MU-LFM Single-Mode Reference Cables is part of Greenlee's premium collection of tools and accessories. This reference cable (FC-PC to MU-PC) ensures accurate measurements for repeatable reproducable testing to the latest industry standards.

Product: Parts and Accessories
Manufacturer: Greenlee
Faucet Part Feature: Hardware
Mpn # 57MU-LFM
Weight 0.12 lbs.
  • Ensures accurate measurements for repeatable and reproducible testing to the latest industry standards: Meets and/or exceeds the latest industry standards including: TIA/EIA-455-171 (FOTP-171A), issued June,2001
  • Length : 3.000 M
  • Outside Diameter : 2.4990 Plus Or Minus 0.0005 MM Ferrule
  • Return Loss : Less Than Or Equal To 55 DB (SM, 1310/1550 NMTR) And Less Than Or Equal To 40 DB (MM, 850/1300 NMTR)
  • Standard : TIA/EIA-455-171 (FOTP-171A), TIA-568B, TIA-562-7 (OFSTP-7),TIA-526-14 (OFSTP-14), TIA-455-171 (FOTP-171, Attenuation),TIA-455-8 (FOTP-8, Return Loss), IEC
  • Type : Hybrid, FC PC To Type A
  • TIA-568B, TIA-562-7 (OFSTP-7) and TIA-526-14 (OFSTP-14) for optical link testing
  • TIA-455-171 (FOTP-171, Attenuation) and TIA-455-8 (FOTP-8, Return Loss) for cable assembly testing
  • Corresponding IEC measurement standards
  • Beam Exit Angle : Greater Than Or Equal To 0.25DEG (SM) And Greater Than Or Equal To 0.5 DEG (MM)
  • Connection : FC-PC To MU-PC
  • Fiber to Ferrule Eccentricity : Greater Than Or Equal To 0.25UM (Singlemode) And Greater Than Or Equal To 3 UM (Multimode)
  • Fiber Type : Singlemode
  • Insertion Loss : Greater Than Or Equal To 0.15DB (SM, 1310/1550 NMTR) And Greater Than Or Equal To 0.25 DB (MM, 850/1300 NMTR)
