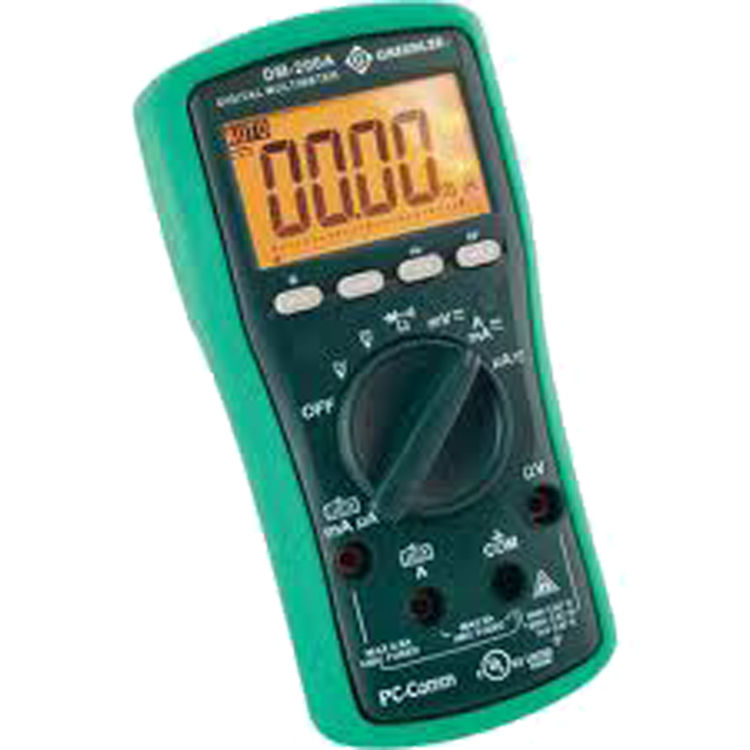

Greenlee DM-200A Greenlee DM-200A Digital Multi-Meter (1000V)(AC/DC)

Greenlee DM-200A Digital Multi-Meter (1000V)(AC/DC)

SKU: 274399
$ 114.18 / ea
Save 5% · Retail: $120.70

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$114.18/ea

About the Greenlee DM-200A Digital Multi-Meter (1000V)(AC/DC)

The Greenlee DM-200A Digital Multi-Meter (1000V)(AC/DC) is part of Greenlee's premium collection of tools and accessories. This digital multi-meter is designed to measure voltage, current, resistance, and frequency. It also tests continuity and diodes, and comes with a backlit LCD with 6000 count display, 2 voltage detection modes, and a BeepJack that warns when test leads are incorrectly inserted in current measurement terminals. It has manual and automatic range selections, a relative offset mode to see changes in the measurements, and an optional USB/RS-232 interface DMSC-2U for direct-to-PC logging. This model comes with (2) 1.5v AAA batteries, bead temperature probe, test leads, and a protective boot.

Product: Hand Tools
  Specialty Tools
Manufacturer: Greenlee
Use: Testing
Style: Multi Meter
Mpn # DM-200A
Weight 1.35 lbs.
  • Measures voltage, current, resistance and frequency
  • Lifetime Limited Warranty
  • Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400 DEG F/204 DEG C max), test leads, protective boot
  • Amperage Measurement : 600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP
  • Battery : (2) 1.5 V AAA
  • Capacitance : 60, 600 NFD, 6, 60, 600, 3000MFD
  • Display : Backlit LCD With 6,000 Count
  • Frequency Measurement : 10 HZ - 50 KHZ Sine Wave, 5 HZ - 999.9 KHZ Logic Level Square Wave
  • Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
  • Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V
  • Replacement Part : TSG-3 Sure-Grip Test Leads
  • Tests continuity and diodes
  • Resistance Measurement : 600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
  • Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
  • Sub Brand : ESM
  • Temperature Rating : K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
  • Type : Digital
  • Voltage Measurement : 60, 600 MILV, 6, 60, 600, 1000 V
  • Backlit LCD with 6,000 count display
  • Two voltage detection modes - non-contact or using a single test lead
  • BeepJack warns when test leads are incorrectly inserted in current measurement terminals
  • Automatic and manual range selection
  • Relative offset mode to see changes in measurements
  • Data hold
  • Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
