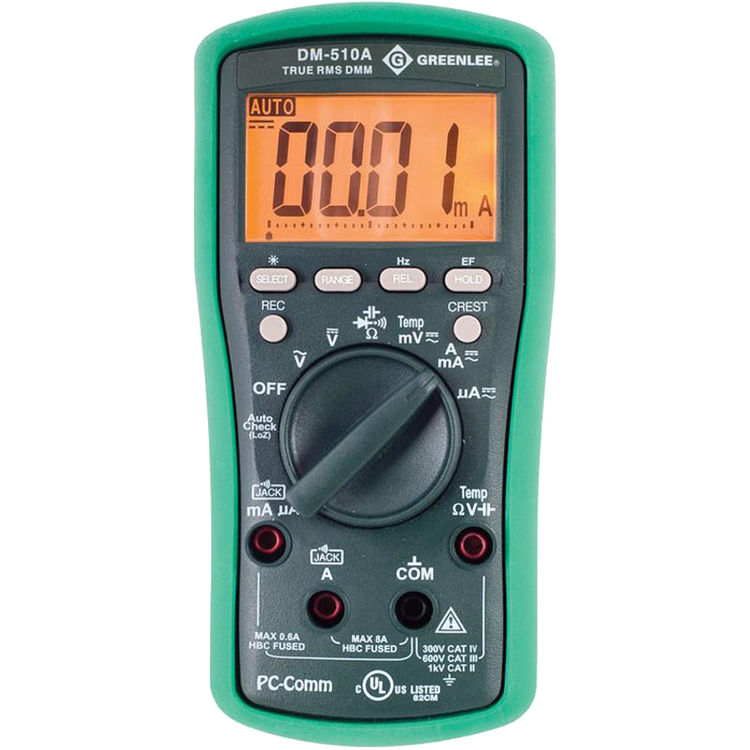

Greenlee DM-510A True RMS Digital Multi-Meter (AC/DC)

SKU: 274414

Save 21% · Retail: $191.96

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Greenlee DM-510A

The Greenlee DM-510A True RMS Digital Multi-Meter (AC/DC) is part of Greenlee's premium collection of tools and accessories. This digital multi-meter is designed to measure voltage, current, resistance, and frequency. It also tests continuity and diodes, and comes with a backlit LCD with 6000 count display, 2 voltage detection modes, and a BeepJack that warns when test leads are incorrectly inserted in current measurement terminals. It has manual and automatic range selections, a relative offset mode to see changes in the measurements, and an optional USB/RS-232 interface DMSC-2U for direct-to-PC logging. This model comes with (2) 1.5v AAA batteries, bead temperature probe, test leads, and a protective boot.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Faucet Part Feature: Caps and Plugs
Style: Multi Meter
Mpn # DM-510A
Weight 1.39 lbs.

Product Features

  • Measures voltage, current, resistance and frequency
  • Lifetime Limited Warranty
  • Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400 DEG F/204 DEG C max), test leads, protective boot
  • True RMS for no-compromise accuracy
  • Crest capture (peak hold)plus recording of max, min, max-min and average
  • Low impedance AutoCheck mode - automatically selects ACor DC volts, resistance or continuity, Low impedance masks ghost voltage pickup
  • Measures capacitance
  • Measures temperature using a type K thermocouple
  • Amperage Measurement : 600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP
  • Battery : (2) 1.5 V AAA
  • Capacitance : 60, 600 NFD, 6, 60, 600, 3000MFD
  • Tests continuity and diodes
  • Display : Backlit LCD With 6,000 Count
  • Frequency Measurement : 10 HZ - 50 KHZ Sine Wave, 5 HZ - 999.9 KHZ Logic Level Square Wave
  • Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
  • Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V
  • Replacement Part : TSG-3 Sure-Grip Test Leads
  • Resistance Measurement : 600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
  • Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
  • Sub Brand : ESM
  • Temperature Rating : K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
  • Type : Professional Plant Digital
  • Backlit LCD with 6,000 count display
  • Voltage Measurement : 60, 600 MILV, 6, 60, 600, 1000 V
  • Two voltage detection modes - non-contact or using a single test lead
  • BeepJack warns when test leads are incorrectly inserted in current measurement terminals
  • Automatic and manual rangeselection
  • Relative offset mode to see changes in measurements
  • Data hold
  • Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging



4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Thank you for visiting This Greenlee DM-510A True RMS Digital Multi-Meter has dimensions of 3.74" (height) x 9.8" (length) x 6.65" (width). For more information, please refer to this Specification Sheet. To order, simply click on Add to Cart and enter your information in the required fields. Happy shopping at!
