Greenlee DML-430A-C Data-Logging True RMS Digital Multi-Meter (AC/DC)

SKU: 274432

Save 28% · Retail: $496.85

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

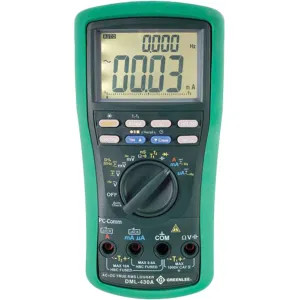

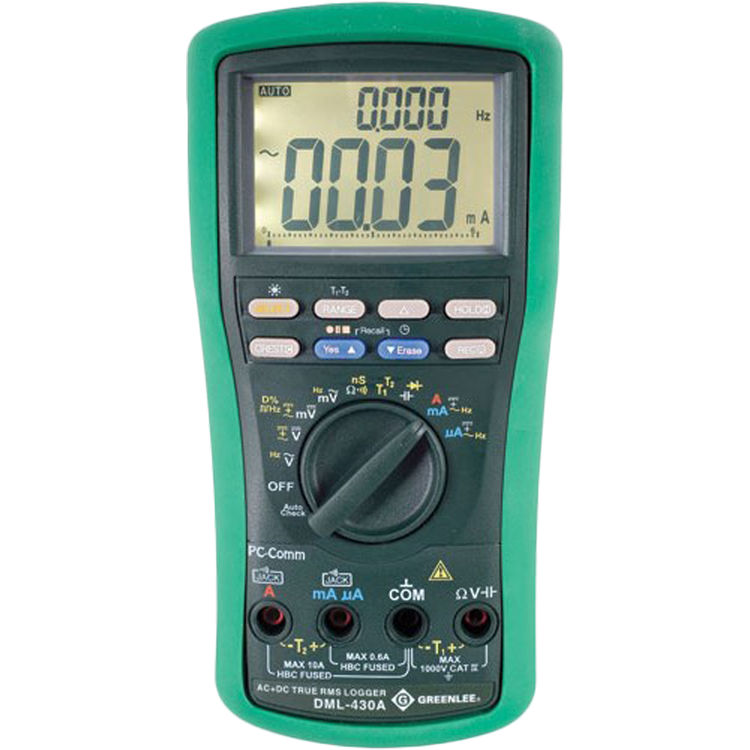

About the Greenlee DML-430A-C

The Greenlee DML-430A-C Data-Logging True RMS Digital Multi-Meter (AC/DC)(calibrated) is part of Greenlee's premium collection of tools and accessories. This digital multi-meter is designed to measure voltage, current, resistance conductance, frequency, and capacitance. It also tests diodes and continuity, and has a datalogging capability of 87,000 single channel (43,000 dual channel) measurements. It has an optional USB interface DMSC-9U to transfer data to any PC, a true RMS for accurate readings on complex waveforms, a low impedance on autocheck mode, and a backlit LCD display with 2 readsing and 10,000 count resolution. It has a BeepJack feature that warns when the test leads are incorrectly inserted, and 2 temperature measurements using Type K Thermocouples. It comes with a 9v battery, a bead temperature probe, test leads, a protective boot, and a convenient carrying case.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Style: Multi Meter
Mpn # DML-430A-C
Weight 0.12 lbs.

Product Features

  • Datalogging Capability - Stores 87,000 Single-Channel Or 43,000 Dual-Channel Measurements
  • Two Temperature Measurements Using Type K Thermocouples
  • Accessories Included: (1)9V Battery, Bead Temperature Probe (400 DEG F / 204 DEG C Max.), Test leads, Protective Boot, Carrying Case
  • Lifetime Limited Warranty
  • Includes Certificate of Calibration
  • Amperage Measurement : 600, 6000 MICAMP, 60, 600 MILAMP, 6, 10 AMP
  • Battery : (1) 9 V
  • Capacitance : 60, 600 NFDN 6, 60, 600 MFD, 6, 25 MILFD
  • Conductance : 99.99 nS
  • Display : Backlit LCD Displays 2 Readings With 10,000 Count Resolution
  • Frequency Measurement : 15 HZ - 50 KHZ Sine Wave, 5 HZ - 1 MHZ Logic Level Square Wave
  • Use Optional USB InterfaceDMSC-9U To Transfer Data To PC Or For Direct-To-PC logging
  • Includes : (1) 9V Battery, Bead Temperature Probe (400 DEG F/204 DEG CMax), Test leads, Protective Boot, Carrying Case
  • Measurement Category : CAT IV, 1000 V
  • Replacement Part : TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe
  • Resistance Measurement : 600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
  • Standard : CAT IV, C/UL US Listed, TRUE RMS, CE Listed
  • Temperature Rating : K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
  • Type : Digital
  • Voltage Measurement : 60.00, 600.0 MILV, 9.999, 99.99, 999.9 V
  • AC+DC True RMS Gives Accurate Readings On Complex Waveforms
  • Low Impedance AutoCheck Mode - Automatically Selects AC or DC volts, Resistance Or Continuity
  • Low impedance masks ghost voltage pickup
  • Backlit LCD Displays 2 Readings With 10,000 Count Resolution
  • BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
  • Measures Voltage, Current,Resistance, Conductance, Frequency And Capacitance
  • Checks Continuity And Tests Diodes
