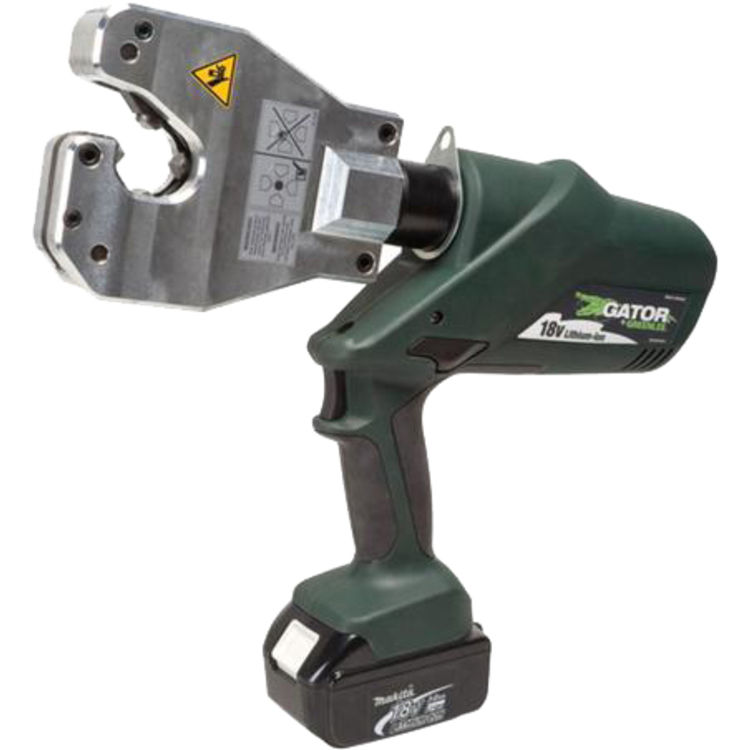

Greenlee EK06ATL230 Dieless Battery-Powered Crimp Tool (230V AC Adapter)

SKU: 274475

 Free Shipping!
Save 23% · Retail: $4,274.27

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Greenlee EK06ATL230

The Greenlee EK06ATL230 Dieless Battery-Powered Crimp Tool (230V AC Adapter) is part of Greenlee's premium collection of tools and accessories. This crimper features Greenlee's intelligent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. It comes with a state-of-the-art 18v lithium ion battery, an automatic retraction stop that retracts the ram when resetting for the next cycle, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, an LED work light, and a smart charger that controls the current, voltage, and battery temperature to maximize battery life.

Product Details

Manufacturer: Greenlee
Style: Hydraulic
Mpn # EK06ATL230
Weight 0.12 lbs.

Product Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visualand audible alert if the force is below specifications
  • Accessory : 52178 UPC 52178 120 V Charger
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • Crimping Capacity : 6 AWG - 500 KCMIL Copper LugsAnd Copper Splices, 6 AWG - 400 KCMIL Aluminum Lugs And Aluminum Splices
  • Crimping Force : 12400.000 LB (55.000 KN)
  • Overall Length : 14.000 IN (355.000 MM)
  • Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered, Quad Point Dieless
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Weight : 12.000 LB (5.400 KG)
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic systemprovides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC12 and KA12 dies in combination with Anderson Blackburn FCI Burndy ILSCO Panduit Penn-Union and Thomas& Betts color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. The tools also accept all industry-type dies. These tools drive knockout punches through 5-5/8 diameter.
  • Tools automatically retract when the crimping cycle is complete10~ Overmolded tacky grip areas make gripping the tool easier and morecomfortable11~ LED work light illuminates dark work areas12~ Greenlee battery-powered crimping tools now use bio-degradable oil13~ Smart chargers control the charging current, charging voltage and battery temperatureto maximize battery life14~ Utilizes four indentors to make the crimp15~ Flip-top style uses a pull pin to open head for easy removal from the connector16~ U.S. Patents #6,206,663 and #6,065,32617~ Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
