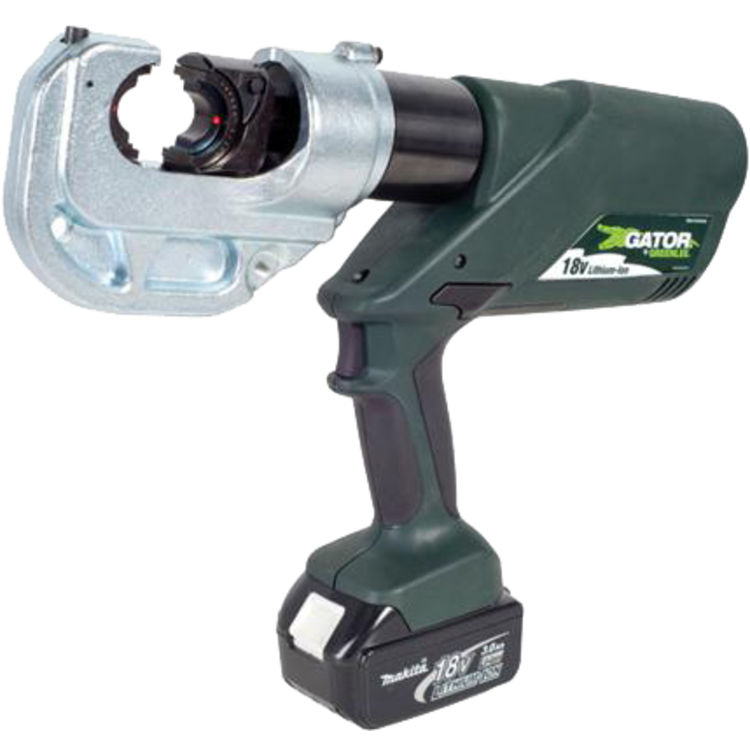

Greenlee EK1240KL12 Battery-Powered Crimp Tool (12-ton)(12V Charger)(Kearney)

SKU: 274495
Minimum Quantity: 1

$4,013.54/ea Free Shipping!
Save 23% · Retail: $5,181.98

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$4,013.54/ea

About the Greenlee EK1240KL12

The Greenlee EK1240KL12 Battery-Powered Crimp Tool (12-ton)(12V Charger)(Kearney) is part of Greenlee's premium collection of tools and accessories. This battery-powered crimping tool features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It has a state-of-the-art 18v lithium ion battery, an automatic retraction stop that retracts the ram just enough to get ready for the next cycle time, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, an LED worklight, and a smart charger that controls the current, voltage, and battery temperature to maximize battery life.

Product Details

Product:
Manufacturer: Greenlee
Type: Crimping Tool
Style: Hydraulic
Mpn # EK1240KL12
Weight 27.75 lbs.

Product Features

  • "Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp andprovides the operator a visual and audible alert if the force is below specifications
  • Accessory : 12274 UPC 12274 Carrying Strap
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Crimping Capacity : 1033 KCMIL (MCM) ACSR Terminals, 477 KCMIL (MCM) ACSR Tension Fittings
  • Crimping Force : 24000.000 LB (106.000 KN)
  • Estimated Cycles per Charge : 90
  • Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 EK1230L & EK1240L Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Weight : 15.000 LB (6.800 KG)
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic systemprovides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350 degrees
  • Tools automatically retract when the crimping cycle is complete10~ Overmolded tacky grip areas make gripping the tool easier and more comfortable11~ LED work light illuminates dark work areas12~ Greenlee battery-powered crimping tools now use bio-degradable oil13~ Smart chargers control the charging current, charging voltage and battery temperatureto maximize battery life14~ Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger15~ Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plusall industry ""U"" style crimping dies, EK1240L with 1.65 IN (42mm) opening uses GreenleeKC12, KA12 & KD12 crimping dies plus all industry ""U"" style crimping dies, EK1240KL uses Kearney PH2 style crimping dies16~ Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red17~ U.S. Patents #6,206,663 and #6,065,326 "
