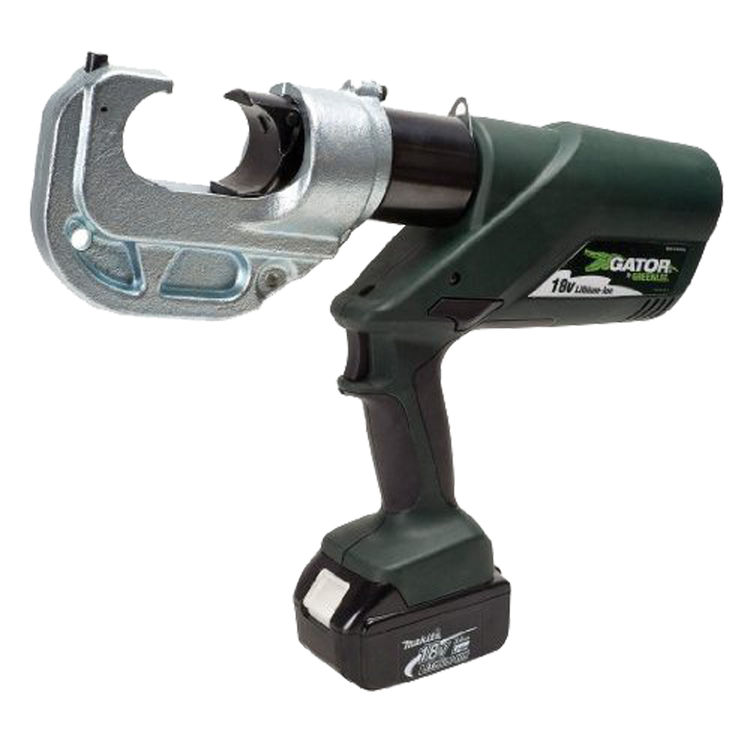

Greenlee EK1240L120 Battery-Powered Crimp Tool (12-Ton)(42mm)(120V AC Adapter)

SKU: 274501

 Free Shipping!
Save 14% · Retail: $5,054.98

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Greenlee EK1240L120

The Greenlee EK1240L120 Battery-Powered Crimp Tool (12-Ton)(42mm opening)(120V AC Adapter) is part of Greenlee's premium collection of tools and accessories. This A/C-powered crimping tool features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It has an automatic retraction stop that retracts the ram just enough to get ready for the next cycle time, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, and an LED worklight.

Product Details

Manufacturer: Greenlee
Style: Hydraulic
Mpn # EK1240L120
Weight 24.68 lbs.

Product Features

  • Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp AndProvides The Operator A Visual And Audible Alert If The Force Is Below Specifications
  • Overmolded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
  • LED Work Light Illuminates Dark Work Areas
  • Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
  • Smart Chargers Control The Charging Current, Charging Voltage And Battery TemperatureTo Maximize Battery Life
  • Available With 120V, 12V or 230V Battery Charger Or With 120V or 230V Corded Adapter In Place Of Batteries And Charger
  • Three Crimping Head Choices: EK1230L With 1.20 IN (30mm) Opening Uses Greenlee KC12, KA12 And KD12 Crimping Dies Plus All Industry U Style Crimping Dies, EK1240L With 1.65IN (42mm) Opening Uses Greenlee KC12, KA12 And KD12 Crimping Dies Plus All Industry U Style Crimping Dies, EK1240KLUses Kearney PH2 Style Crimping Dies
  • Covered Head Models Have Two Layers Of PVC That Total Approximately 3/16 IN (4.8mm) Thick
  • The Outer Layer Is Black And The Inner Layer Is RedU.S. Patents No 6, 206, 663 And 6, 065, 326
  • Accessory : 12274 UPC 12274 Carrying Strap
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70 PCT More Cycles Per Charge And Faster Cycle Times
  • Crimping Capacity : 8 AWG - 750 KCMIL Copper Color Coded Lugs And Splices
  • Crimping Force : 24000.000 LB (106.000 KN)
  • Estimated Cycles per Charge : 90
  • Overall Length : 16-1/4 IN (413.000 MM)
  • Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 EK1230L & EK1240L Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered
  • Weight : 15.000 LB (6.800 KG)
  • Automatic Retraction Stop (ARS) Which Retracts The Ram Just Enough To Get Ready For The Next Cycle Saving Time And Energy
  • LED Light Provides The Operator With The Battery Charge And Tool Maintenance Status
  • Two-Stage Hydraulic SystemProvides Fast Advance And Power Speeds, Saving Time
  • Forward Handle Position Improves Tool Balance
  • One Trigger Controls All Tool Functions
  • Crimping Head Rotates 350 DEG
  • Tools Automatically Retract When The Crimping Or CuttingCycle Is Complete
