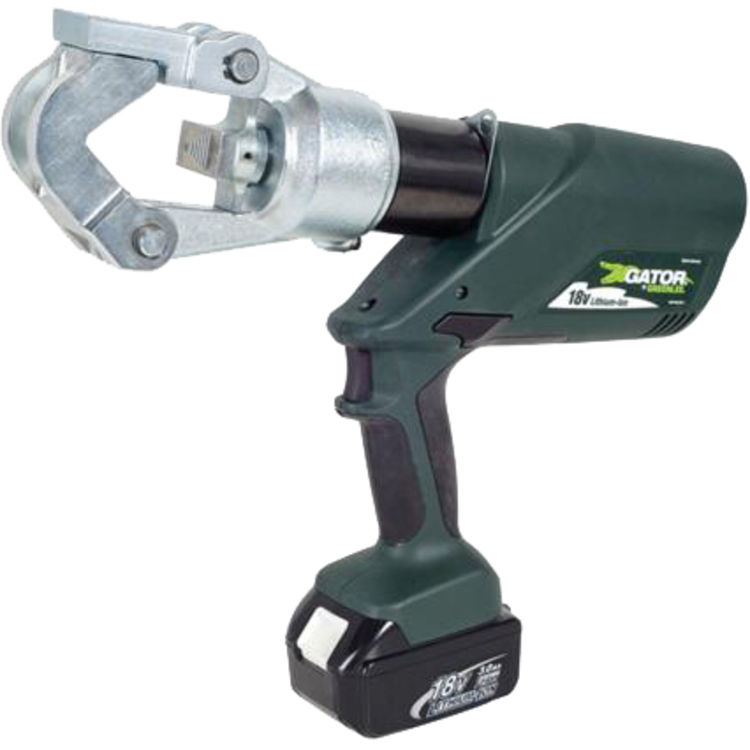

Greenlee EK12IDL11 Battery-Powered Dieless Crimping Tool (12-ton)(120V Charger)

SKU: 274504
Minimum Quantity: 1

$4,784.40/ea Free Shipping!
Save 13% · Retail: $5,467.89

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$4,784.40/ea

About the Greenlee EK12IDL11

The Greenlee EK12IDL11 Battery-Powered Dieless Crimping Tool (12-ton)(120V Charger) is part of Greenlee's premium collection of tools and accessories. This dieless crimping tool does not require interchangeable crimping dies, and features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It includes a state-of-the-art 18v lithium ion battery, an automatic retraction stop, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping cycle is complete, overmodled tacky grip areas, an LED worklight, and a smart charger that controls the current, voltage, and battery temperature.

Product Details

Product:
Manufacturer: Greenlee
Type: Crimping Tool
Style: Hydraulic
Mpn # EK12IDL11
Weight 28.11 lbs.

Product Features

  • Dieless indent style crimping head does not require interchangeable crimping dies
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperatureto maximize battery life
  • Flip open crimping head will allow crimping of 4 AWG - 1000 kcmil copper or 6 AWG - 1000 kcmil aluminum with no dies to change
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Accessory : 12274 UPC 12274 Carrying Strap
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp andprovides the operator a visual and audible alert if the force is below specifications
  • Crimping Capacity : 4 AWG - 1000 KCMIL Copper Color Coded Lugs And Splices, 6 AWG - 1000 KCMIL Aluminum ColorCoded Lugs And Splices 1000 KCMIL
  • Crimping Force : 12.000 TON
  • Height : 14-1/2 IN (368.000 MM)
  • Overall Length : 16-1/2 IN (420.000 MM)
  • Replacement Part : 52178 UPC 52178 120V Charger,52179 UPC 52179 12V Charger, 52180 UPC 52180 230V Charger, 52176 UPC 52176 18V 3.0 Ah Li-ion Battery, 10118 UPC 10118 EK12IDL Carrying Case
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered, Dieless
  • Weight : 15.000 LB (6.800 KG)
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic systemprovides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350 Degrees
