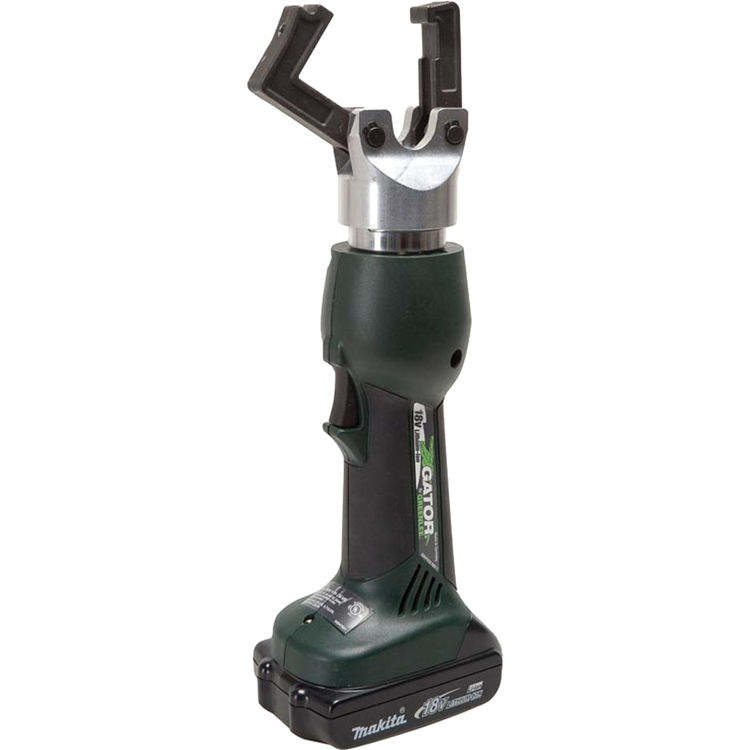

Greenlee EK410L11 Battery-Powered Crimp Tool (4-ton)(120V Charger)

SKU: 274520

$1,522.43/ea
 Free Shipping!
Save 24% · Retail: $1,990.74

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,522.43/ea

About the Greenlee EK410L11

The Greenlee EK410L11 Battery-Powered Crimp Tool (4-ton)(120V Charger) is part of Greenlee's premium collection of tools and accessories. This battery-powered crimping tool features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It has a state-of-the-art 18v lithium ion battery, an LED indication light for battery charge and tool maintenance status, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, an LED worklight, and a smart charger that controls the current, voltage, and battery temperature to maximize battery life.

Product Details

Manufacturer: Greenlee
Style: Battery
Mpn # EK410L11
Weight 14.51 lbs.

Product Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visualand audible alert if the force is below specifications
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Used with Greenlee KC4, KA4 and KD4 crimping dies
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Battery : 18 V, 1.5 AMP-HR Lithium-Ion
  • Battery Charge Time : 30 MINT
  • Crimp Cycle Time : 4 S
  • Crimping Capacity : 8 AWG - 300 KCMIL (MCM) Copper Color Coded Connectors, 8-2/0 AWG Aluminum Color Coded Connectors, 5/8 IN Service Entrance Connectors, 840 Service Entrance Connectors
  • Crimping Force : 7900.000 LB (35.000 KN)
  • Estimated Cycles per Charge : 200
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Overall Length : 13-1/4 IN (337.000 MM)
  • Replacement Part : 52177 UPC 52177 18 V 1.5 AMP-HR Li-ion Battery, 25752 UPC 25752 Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC52179 12 V Charger, 52180 UPC52180 230 V Charger
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered
  • Weight : 4.000 LB (1.800 KG)
  • Width : 2-7/8 IN (73.000 MM)
  • LED light provides the operator with the battery charge and tool maintenance status
  • In line tool style is light weight and very easy to control
  • One trigger controls all tool functions
  • Crimping head rotates 350 degrees
  • Tools automatically retract when the crimping or cuttingcycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminatesdark work areas
