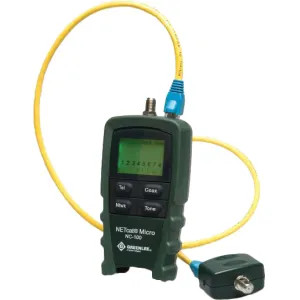

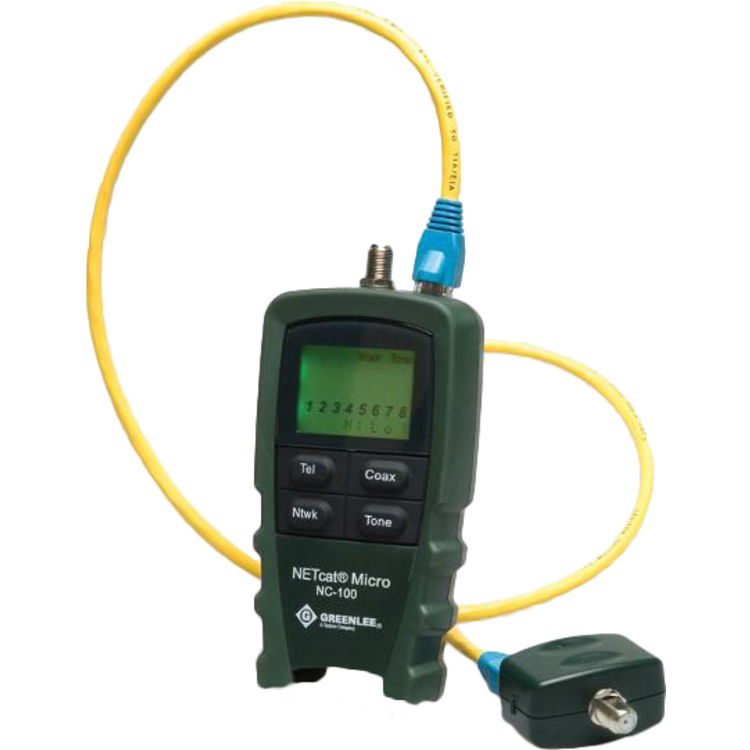

Greenlee NC-100 NETCat Micro Digital Voice, Data, and Video Wiring Tester

SKU: 276080

$107.78/ea
Save 5% · Retail: $113.95

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$107.78/ea

About the Greenlee NC-100

The Greenlee NC-100 NETCat Micro Digital Voice, Data, and Video Wiring Tester is part of Greenlee's premium collection of tools and accessories. This tester is designed to test shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables. It detects shorts, opens, reversed polarity, and crossed/split pairs. It generates 3 distinct, selectable digital tone patterns for cable tracing and troubleshooting.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Mpn # NC-100
Weight 0.97 lbs.

Product Features

  • Tests shielded twisted pair(STP), unshielded twisted pair (UTP) and coaxial cables
  • Warning of hazardous voltages
  • Checks for reversed telephone wires
  • Backlight : Green LED
  • Battery : 9 V Alkaline Battery (PP3)
  • Buttons : Four Momentary Contact Push Button
  • Depth : 33.000 MM
  • Display LCD : Icon And Seven Segment Type
  • Frequency Rating : 577 HZ And 983 HZ
  • Humidity : 0 To 95 PCT Non-Condensing
  • Interface Connections : RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors
  • TIA/EIA standard wiring pair verification
  • Length : 150.000 MM
  • Minimum Cable Length : 2.000 To 3.000 MR (5.000 To 10.000 FT)
  • Pair Tracing Tones : Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates
  • Standard : TIA/EIA
  • Storage/Operating Temperature : -10 To 60 DEG C0 - 50 DEG C
  • Sub Brand : NETcat
  • Type : Micro Digital Voice Data And Video Wiring
  • Weight : 220.000 GM Including Remote Unit And Battery
  • Width : 70.000 MM
  • Detects shorts, opens, reversed polarity, crossed and split pairs
  • Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting
  • Tracing modes can be adjusted for high performance LAN cables
  • Complete set of connector types standard (telephone, LANand coax)
  • Nested remote allows end-to-end testing of all wiring types
  • Simple testing of LAN wiring and phone lines
  • Detection of common wiringand connector errors
