Greenlee PE2003 Ground Pulse Fault Locator

SKU: 276639

We are Sorry we no longer carry this item.

Check below for similar items!

About the Greenlee PE2003

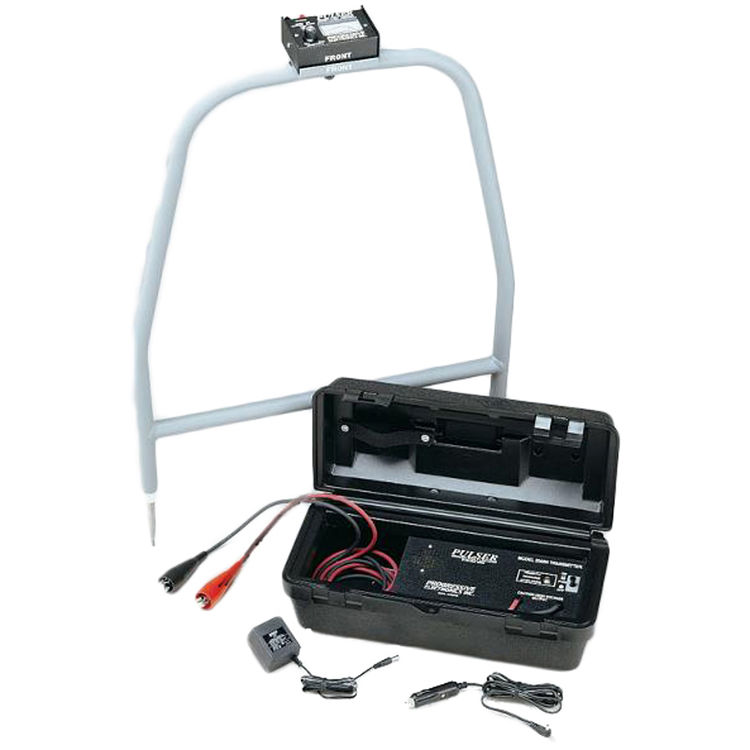

The Greenlee PE2003 Ground Pulse Fault Locator is part of Greenlee's premium collection of tools and accessories. This ground fault locator is designed to identify the exact location of even the smallest breaks in insulation by "pulsing" a high-voltage signal that radiates into the earth at the location of the faults. It features an A-frame mounted reciever, and a visual analog meter that points to the source of the voltage. This package includes a rechargeable transmitter, reciever, A-frame, ground stake, 120V charger, and a 12V DC (cigarette lighter) adapter.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Mpn # PE2003
Weight 11.75 lbs.

Product Features

  • Connection-"Push-On Cable TV deg F"" "
  • Dimensions : 17.000 IN (421.000 MM) X 8.500 IN (215.000 MM) X 6.500 IN X(160.000 MM) Transmitter, 33.500 IN (840.000 MM) X 21.750 IN (550.000 MM) X 3.250 IN (8.000 MM) On A-Frame Receiver
  • Model : PE2003
  • Replacement Part : 2000H Transmitter (IncludesCH1 And CH2) 2000R Receiver AF2 A-Frame CH1 AC Charger CH2 DC Charger
  • Transmitter Power : 2400 VDC Peak
  • Voltage Protection : 240 VAC/400 VDC
  • Weight : 12.500 LB (5.700 KG)
  • Multiple faults on a single wire can be identified indicating the need to replaceinstead of repair
  • Extra-long test leads feature heavy-duty alligator clipsfor use on multiple cable types
  • Includes a rechargeable transmitter, receiver, A-frame, ground stake,120V charger and a 12V DC (cigarette lighter) adapter
  • Battery operated (one 12V and one 9V battery are included)
  • Molded carrying case included "
  • Battery : Transmitter: (1) 12 V Rechargeable Battery Receiver: (1) 9 V Battery
  • Battery Life : Transmitter - 23 HR Per Charge Receiver - 200 HR
  • Construction : Transmitter-Aluminum Housing In Polyethylene Case Receiver-Powder Coated Aluminum
