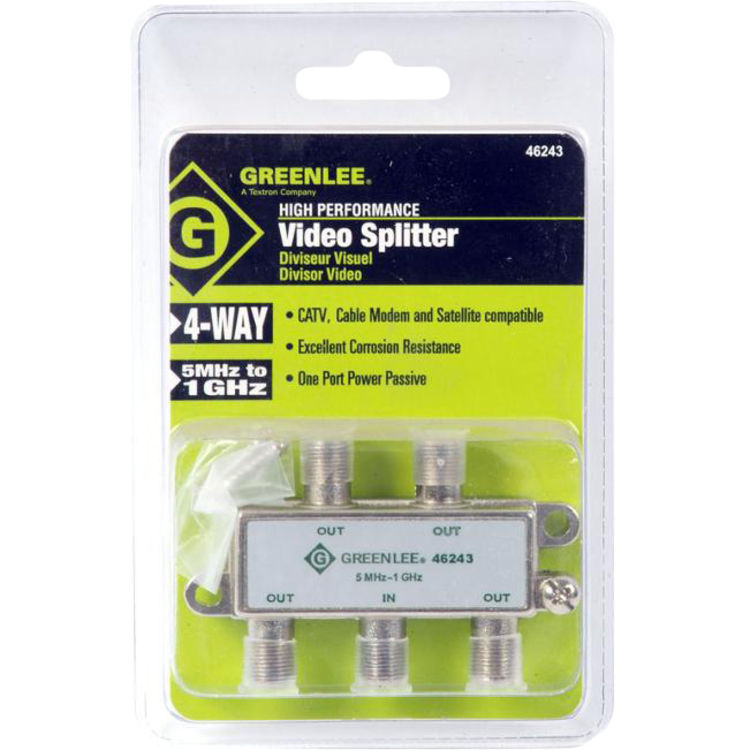

Greenlee VS1-4 4-Way Splitter (packaged)

SKU: 276857

$6.96/ea
Save 15% · Retail: $8.15

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$6.96/ea

About the Greenlee VS1-4

The Greenlee VS1-4 4-Way Splitter (packaged) is part of Greenlee's premium collection of tools and accessories. This 4-way splitter is designed for digital broadcast television, digital cable television, off-air antennas, and RF distribution. It has a nickel-plated, zinc die-cast housing for excellent anti-corrosive protection.

Product Details

Product: Parts and Accessories
Manufacturer: Greenlee
Faucet Part Feature: Hardware
Mpn # VS1-4
Weight 0.15 lbs.

Product Features

  • "Designed for digital broadcast television, digital cabletelevision, off-air antennas and RF distribution
  • F-Ports comply with SCTE outdoor standards
  • Mounting screws included "
  • Application : For Digital Broadcast Television, Digital Cable Television,Off-Air Antennas And RF Distribution
  • Bandwidth : 1 GHZ
  • Connector : F-Type Female RF
  • Height : 0.600 IN
  • Housing : Nickel Plated Zinc Die Cast
  • Impedance : 75 OHM
  • Insertion Loss : 8.0 MAX DB At 47 - 470 MHZ, 8.5 MAX DB At 470 - 750 MHZ, 8.5 MAX DB At 750 - 1000 MHZ In-Out
  • Isolation : 20.0 MIN DB At 5 - 47 MHZ, 21.0 MIN DB At 47 - 470 MHZ, 20.0 MIN DB At 470 - 750 MHZ, 20.0 MIN DB At 750 - 1000 MHZ Out-Out
  • Bandwidth - 5 MHz to 1 GHz
  • Length : 3.000 IN
  • Number Of Ways : 4
  • Return Loss : 15 DB At 5 - 47 MHZ, 17 DB At47 - 470 MHZ, 15 DB At 470 - 750 MHZ, 15 DB At 750 - 1000 MHZ In-Out
  • Type : VS1 Series
  • Width : 1.900 IN
  • Power Passive Port - designed to pass RF and DC power from one input to one output
  • Nickel-plated, zinc die-cast housing for excellent anti-corrosive protection
  • 100% solder-sealed tin backplate provides EMI/RFI shielding > -120dB
  • Low insertion loss
  • Printed circuit board construction ensures consistent RFperformance and excellent port-to-port isolation
  • Used On All Power Meters And 25 B- Series LED Sources
  • F-Ports spaced at 1"" on center to allow application of security sleeves and window filters
