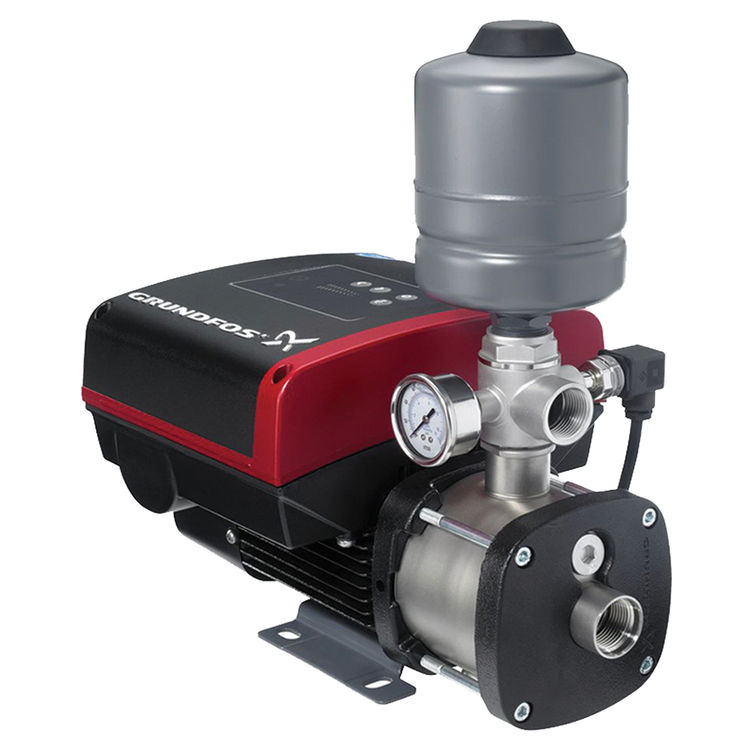

Grundfos 98548112 Grundfos CMBE 3-30 Booster Pump - 25 GPM at 20-25 PSI, 1-1/2 HP, 230V - Grundfos 98548112
View 2 of Grundfos 98548112 Grundfos CMBE 3-30 Booster Pump - 25 GPM at 20-25 PSI, 1-1/2 HP, 230V - Grundfos 98548112
View 3 of Grundfos 98548112 Grundfos CMBE 3-30 Booster Pump - 25 GPM at 20-25 PSI, 1-1/2 HP, 230V - Grundfos 98548112

Grundfos CMBE 3-30 Booster Pump - 25 GPM at 20-25 PSI, 1-1/2 HP, 230V - Grundfos 98548112

SKU: 527575
$ 2,619.28 / ea
 Free Shipping!
Save 21% · Retail: $3,334.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$2,619.28/ea

About the Grundfos CMBE 3-30 Booster Pump - 25 GPM at 20-25 PSI, 1-1/2 HP, 230V - Grundfos 98548112

The Grundfos CMBE 3-30 1-1/2 horsepower, 230-volt, 50/60 Hz, constant-pressure, multistage, centrifugal booster pump (98548112) is designed for water supply, irrigation, and dewatering in domestic and light-commercial applications. This easy-to-install, horizontal, compact system comes preassembled with a CME pump, a highly efficient ECM motor, a diaphragm tank, pressure gauge, pressure and flow sensor, controller, and a 5-way fitting with a non-return check valve. The permanent-magnet motor provides an energy-saving, reliable, and quiet booster pumping solution; and an integrated speed controller maintains constant pressure by changing the motor speed as needed whenever the sensor detects a fluctuation in discharge pressure.

The system also includes dry-running protection. With its robust, stainless-steel construction, the Grundfos model CMBE 3-30 98548112 can be used to boost pressure for a wide range of purposes, including the supply of water for drinking (NSF 61/372 approved), gardening, and agriculture. The supply source could be tap water, chlorinated water, softened water, a shallow well, rainwater, condensate, groundwater, river or lake water, boiler feedwater, district heating water, and so on, as long as the liquids being transferred are clean, thin, with no solid particles or fibers that could cause wear or clog the pump, and are not aggressive or explosive (no diesel oil or other liquids containing oil).

The PSI Boost on this specific CBME 3-30 98548112 constant-pressure booster pump is 20-25 PSI at 0-25 GPM. On a simple control panel, the Grundfos Eye indicates system status, warnings, and alarms. One-touch control buttons make setpoint adjustment easy; and the free Grundfos GO App allows you to communicate with and control this pump from your mobile device. In selecting an appropriately sized CMBE model, consider whether the pump will serve just one or several homes, apartments, a school or small office building, agriculture, or irrigation purposes to make sure you have the required pressure, flow, horsepower, and voltage to meet the demands on the system. Both 1x110-120V and 1x200-240V alternatives are available in the CMBE series. Please refer to the "CMBE Data Booklet" in the Resources section of this web page for the most complete set of Selection Guides and performance data to help you choose the best model of pump for your specific circumstances.

Electrical Voltage: 220-240 Volt
Motor Size: 1-1/2 HP
Product: Pumps
Manufacturer: Grundfos
Mpn # 98548112
Shipping Dimensions 15.0" x 9.0" x 18.0"
Weight 38.50 lbs.
  • Constant pressure via integrated speed control
  • 1-1/2 HP, 230V
  • PSI Boost: 20-25 PSI at 0-25 GPM
  • Commercial-grade quality in one compact system, including pump, motor, tank, pressure and flow sensor, controller, and check valve
  • Reliable and easy to install
  • Low energy consumption with highly efficient ECM motor that reduces operating costs
  • Drinking water NSF 61/372 approved
  • Robust, stainless steel construction
  • Dry-running protection
  • Noise level below 55 dBA and even lower at controlled speed
  • Simple control panel features GRUNDFOS Eye that indicates system status, warnings, and alarms
  • Adjusting to desired setpoint is easy using one-touch control buttons
  • Free Grundfos GO App communicates with CBME pump, giving you intuitive control with your mobile device and full access to all Grundfos Online tools on the go
  • CMBE series available in both 1x110-120V and 1x200-240V variants
  • Comprehensive and global 2-year warranty
