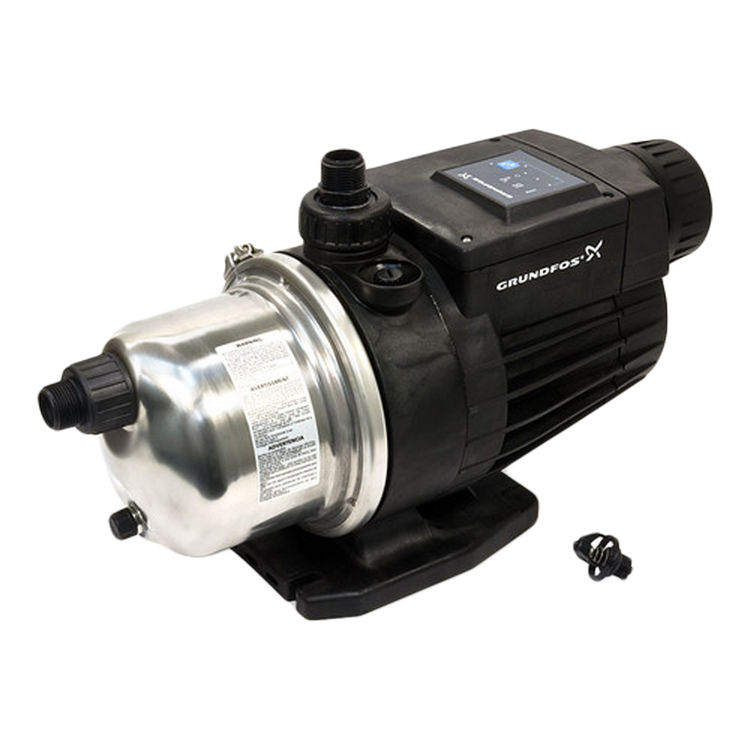

Grundfos MQ3-45 96860207 1 HP Single-Phase 230V Press Booster System

SKU: 61807
   based on 1 Reviews
Save 55% · Retail: $1,252.00

   Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Grundfos 96860207

This Grundfos MQ pump is compact and extremely easy to install. The pressure switch and tank are built-in, and it is self-priming and water cooled with a very low noise level. The outlet pipe connection can be angled up to 5-degrees to fit your existing pipe-work, and it's simple and easy to operate. The settings are clearly indicated on the user friendly control panel with indicator lights for on/off, auto reset, and an alarm indicating dry running or overheating. The Grundfos MQ3-45 is built for trouble free operation, and its construction of corrosion resistant materials means it can be used for clean water. The anti-cycling feature prevents the pump from repeatedly starting and stopping in the event of a dripping tap or a minor leak, and in the even of no water availability, the pump will stop to protect itself and restart automatically when water is available again.

Product Details

Manufacturer: Grundfos
Mpn # 96860207
Weight 28.60 lbs.

Product Features

  • Class A capacitor for increased strength of operation
  • Potting material added to protect the printed circuit board components
  • High torque motor assures positive starts


Rated 2 out of 5 based on 1 reviews

Quiet but leaked after 28 months Rated 2 by Davis
  No, I do not recommend this product.
We bought this pump for all its features only to have it leak after 28 months. It runs quiet but I did expect to get at least 5 years out of this pump. I am going to buy another one to see if I get the same result. The worst problem is that no company has a reliable pump that lasts.
Originally posted on Nov/2015

Questions & Answers


We appreciate your question about this Grundfos MQ3-45 96860207 230V press booster system. This product is equipped with both an internal flow switch and a pressure switch. Depending on the water consumption, each of these switches can turn this product on. The pump will start only if the flow rate is higher than 0.3 GPM or if the pressure is below 29 psi. The flow switch automatically stops the normal operation when the flow rate drops below 0.3 GPM. You can check page 21 of this manual for reference. If you need more technical assistance if would be best to contact the manufacturer at 800-333-1366. Thank you for visiting!
