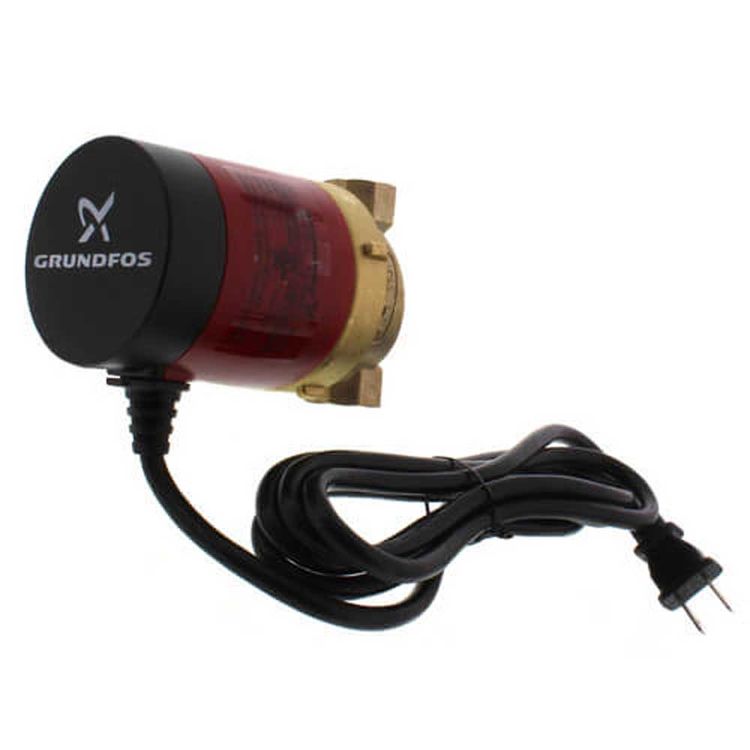

Grundfos UP10-16 PM BN5/LC 98420210 Hot-Water Recirculating Pump

SKU: 278812
   based on 4 Reviews
100% recommend this product
Save 56% · Retail: $372.00

In Stock and Ready to Ship!

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Grundfos 98420210

This Grundfos "Comfort PM" hot-water recirculating pump (Part 98420210, Model UP10-16 PM BN5/LC) assures that hot water is immediately but efficiently available at every faucet, fixture, and appliance in your home. The pump recirculates cooled water via return piping back to the water heater for reheating. With its low-noise, permanent-magnet motor, this Comfort PM pump runs silently as it helps provide hot water on demand. The Grundfos UP10-16 PM BN5/LC has a compact design that makes it easy to install in existing homes or new construction. This 115V pump has a lead-free brass housing with 1/2-inch FNPT connections and a 6-foot line cord. The Grundfos Comfort PM consumes as little as 5-8.5 W, can save up to 16,000 gallons of water per year, and is backed by a 2-year limited warranty.

Product Details

Manufacturer: Grundfos
Connection Type: Female Thread
Electrical Voltage: 110-120 Volt
Product: Pumps
Flow Rate: 2.2 Gallons Per Minute
Material: Brass & Bronze
Type: Recirculating
Mpn # 98420210
Weight 2.70 lbs.

Product Features

  • This model has 1/2-inch FNPT connections.
  • Whisper-silent operation with low-noise, permanent-magnet motor, which also reduces energy consumption to as little as 5 to 8.5 watts.
  • Maximum comfort with lower wait times for hot water, reducing wasted water and electricity.
  • Compact design makes this pump easy to install, even in confined spaces; and the insulation shells help make installation fast.
  • Integrated external-sensor cable mounts simply onto the hot water supply line.
  • Lead-free brass housing eliminates risk of corrosion.
  • All products certified to NSF-61 and NSF-372 standards.
  • 6-foot line cord
  • 115V
  • Flow, Qmax: 2.2 GPM (0.5 m^3/h)
  • Head, Hmax: 3.9 ft (1.2 m)
  • Liquid temperature: 36-203 degrees F (2-95 degrees C)
  • Comprehensive 2-year limited warranty


Rated 4.5 out of 5 based on 4 reviews

 Rated 4 by Spyder65
  Yes, I recommend this product.
Great price, received a day earlier than scheduled. Haven't installed yet, but replaced a unit with a built in timer which was twice the price. Didn't use the timer anyways.
Originally posted on Dec/2015

Right part...Great service Rated 5 by Sutallee T
  Yes, I recommend this product.
Replacing the same unit that had been in service for 8 years.... Very satisfied
Originally posted on Dec/2015

 Rated 4 by Dan H.

Originally posted on Sep/2016

 Rated 5 by Richard H.
works great
Originally posted on Sep/2016

Questions & Answers


Yes. We recommend the Grundfos UP10-16BUATLC 96433902 1/25HP Circulation Pump. For more information about this product, you can referhere. Thank you for visiting our website!


No, the Grundfos UP10-16 PM BN5/LC (Part # 98420210) hot-water recirculating pump does not include hoses or couplings because installation requirements may vary from situation to situation. We recommend having this pump installed by a licensed plumbing contractor in your area.


You are correct! The Grundfos 98420210 Model UP10-16 PM BN5/LC hot-water recirculating pump has a brass body, not cast iron. The information on this web page has been corrected. Thank you very much for bringing our attention to the problem.


Grundfos pumps do include a manufacture warranty. You can check out the warranty details here. Thanks!


Yes. Grundfos provides a comprehensive 2-year limited warranty on this UP10-16 PM BN5/LC (Part 98420210) hot-water recirculating pump.


Good day! Thanks for visiting Unfortunately, we no longer carry your existing UP10-16BUATLC 96433902 pump. However, we have this Grundfos UP10-16 PM BN5/LC 98420210 hot water recirculating pump which is similar to your previous one. You may refer to this link to know exactly its specifications. If you want to purchase this item, click "Add to Cart" and enter your zip code to confirm your order. Have a great time shopping!
