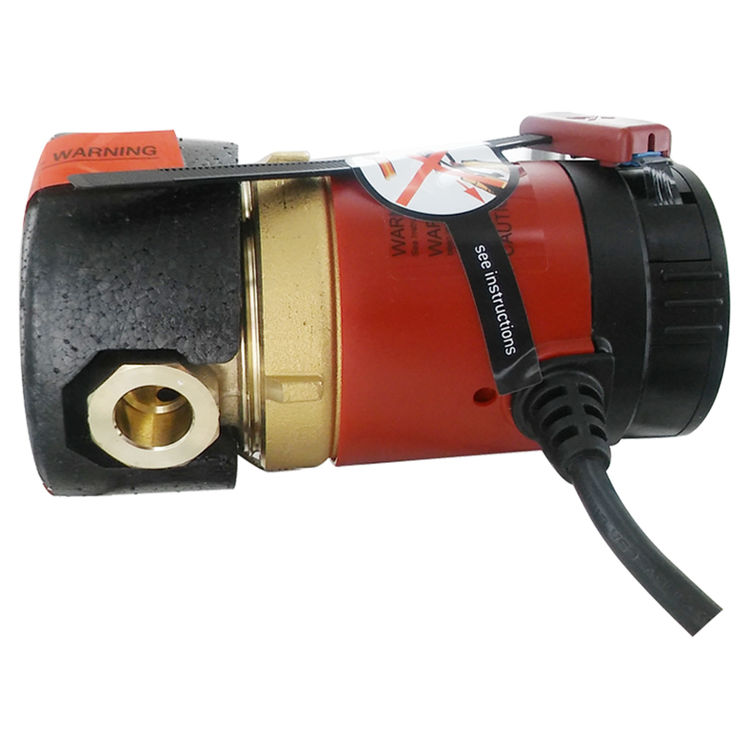

Grundfos UP10-16 A PM B5/LC 98420222 Hot-Water Recirculating Pump

SKU: 508428
   based on 1 Reviews
Save 52% · Retail: $569.00

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$270.71/ea 4
Massachusetts Warehouse
Ships in 1-3 Days
$289.36/ea 7
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Grundfos 98420222

This Grundfos "Comfort PM Auto" hot-water recirculating pump (Part 98420222, Model UP10-16 A PM B5/LC) assures that hot water is immediately but efficiently available at every faucet, fixture, and appliance in your home. The pump recirculates cooled water via return piping back to the water heater for reheating. The intelligent AUTOADAPT function of this model "learns" the hot-water consumption patterns of the home owners and adapts operation times accordingly. Once configured, the pump will only run when needed, resulting in a substantial reduction in wasted water and electricity. The Grundfos Comfort PM pump has two additional operating modes: Temperature Mode maintains an automatically detected water-temperature range within an individual system, and 100% Mode runs the pump non-stop at full speed. Regardless of the operating mode, this recirculating pump runs silently as it helps provide hot water on demand. The Grundfos UP10-16 A PM B5/LC pump with AUTOADAPT has a compact design that makes it easy to install in existing homes or new construction. This 115V pump has a lead-free brass housing with 1/2-inch Sweat connections and a 6-foot line cord. The Grundfos Comfort PM consumes as little as 5-8.5 W, can save up to 16,000 gallons of water per year, and is backed by a 2-year limited warranty.

Product Details

Electrical Voltage: 110-120 Volt
Flow Rate: 2.2 Gallons Per Minute
Manufacturer: Grundfos
Product: Pumps
Mpn # 98420222
Shipping Dimensions 10.0" x 6.5" x 4.0"
Weight 5.00 lbs.

Product Features

  • This model has 1/2-inch Sweat connections.
  • Three operating modes: AUTOADAPT for the most efficient use of water and energy, Temperature Mode, and 100% Mode.
  • AUTOADAPT function "learns" and adapts to homeowner's water temperature needs, ensuring that pump only runs when required.
  • Whisper-silent operation with low-noise, permanent-magnet motor, which also reduces energy consumption to as little as 5 to 8.5 watts.
  • Maximum comfort with lower wait times for hot water, reducing wasted water and electricity.
  • Compact design makes this pump easy to install, even in confined spaces; and the insulation shells help make installation fast.
  • Integrated external-sensor cable mounts simply onto the hot water supply line.
  • Lead-free brass housing eliminates risk of corrosion.
  • All products certified to NSF-61 and NSF-372 standards.
  • 6-foot line cord
  • 115V
  • Flow, Qmax: 2.2 GPM (0.5 m^3/h)
  • Head, Hmax: 3.9 ft (1.2 m)
  • Liquid temperature: 36-203 degrees F (2-95 degrees C)
  • Comprehensive 2-year limited warranty


Rated 5 out of 5 based on 1 reviews

 Rated 5 by William T.
Wish i would have bought it long ago to replace the old one that died. Went with this model because it fits in the volute from the older one we had hard piped in the house.
Originally posted on Jan/2017

Questions & Answers


Howdy! Thank you for inquiring about our Grundfos UP10-16 A PM B5/LC 98420222 Hot-Water Recirculating Pump. According to Grundfos, they don't have a motor replacement for the Grundfos UP10-16. If you really need it, you would need to buy the whole item. If you have other questions, please do not hesitate to ask and we will be more than happy to assist you. You may also call our customer support specialists at 435-868-4020 between 8:00 AM and 7:00 PM MST or e-mail them @ Thank you for visiting Have a happy day!


Good day! Thank you for your question about the Grundfos UP10-16 A PM B5/LC recirculating pump. Unfortunately, we have not been able to find an answer to your question. We have contacted Grundfos and hope to hear from them soon. Please check back in with us at a later time, or leave your Email address below and we can contact you as soon as we have the answer. Thank you for choosing to help you find answers to your plumbing question.
