Grundfos 59896771 Stainless Steel Circulating Pump - 1/12 HP, 115 Volt

SKU: 8417
Save 52% · Retail: $665.00

In Stock and Ready to Ship
More Buying Options

Ships From Price Qty
Spring Valley Nevada Warehouse
Ships in 4-6 days
$317.29/ea 2
Boise Idaho Warehouse
Ships in 5-7 Days
$317.29/ea 34
Boston Massachusetts Warehouse
Ships in 5-7 Days
$359.47/ea 1
Chicago Illinois Warehouse
Ships in 5-7 Days
$380.58/ea 1
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Grundfos 59896771

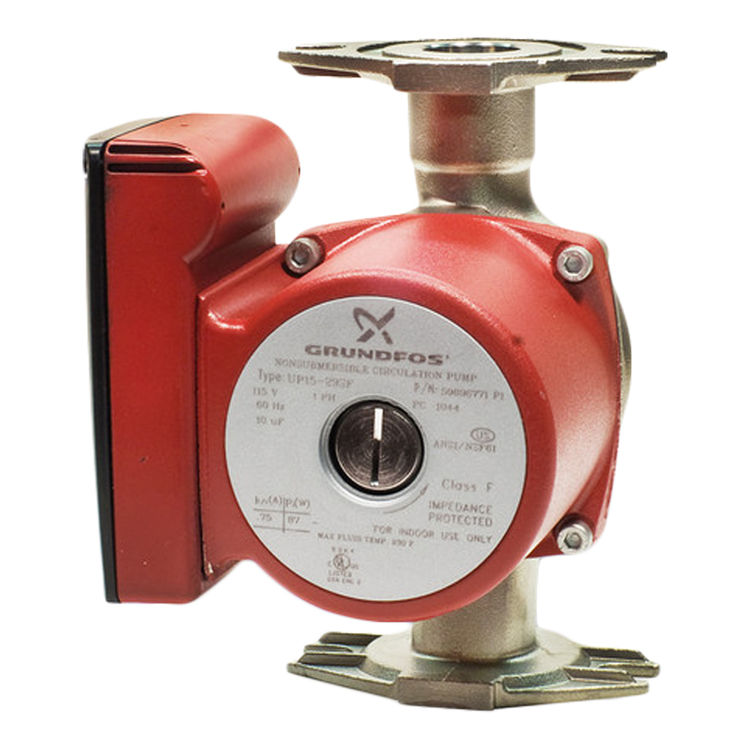

The Grundfos UP15-29SF 59896771 is a 1/12 HP 115V Circulating Pump. This circulating pump is designed with an extremely efficient, and durable motor engineered for full and part-capacity systems. The Grundfos UP15-29SF 59896771 1/12 HP 115V Circulating Pump is designed to cover a broad range of both commercial and residential applications. These circulation applications include; circulating liquids in heating and air-conditioning systems, general water supply, boiler/Hydronic heating, and chilled water systems.

This circulating pump also features an easy maintenance design that allows a single person to service this pump with ease, saving your company time and money. Other important specifications include; a Single Stage Motor, a Cast Iron Body, an Integral Check Valve, a Flanged Connection, and a Signature Dark Red Color.

Product Details

Manufacturer: Grundfos
Product: Pumps
Pump Type: Circulator Pump
Pump Features: 1 Phase
Motor Size: 1/12 HP
Size: 6 1/2
Electrical Voltage: 115 Volt
Pressure Rating: 145 PSI
Connection Type: Flanged
Mpn # 59896771
Shipping Dimensions 7.0" x 6.0" x 8.0"
Weight 6.00 lbs.

Product Features

  • Open and closed systems
  • Residential and Commercial Grade Applications
  • Renewable neck rings - makes it easy to upgrade your pump when necessary
  • Advanced fan design - results in dramatically reduced noise levels
  • Mechanically and hydraulically balanced impeller
  • 1/25 HP Motor - Nonsubmersible
  • Cast Iron Body
  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion-resistant impeller, Composite, PES
  • Stainless steel pump housing
  • No additional motor protection is required
  • Maximum operating pressure: 145 psi
  • Maximum ambient temperature: 104 F
  • Ambient max at 176F liquid: 176 F
  • Approvals on nameplate: UL, CSA
