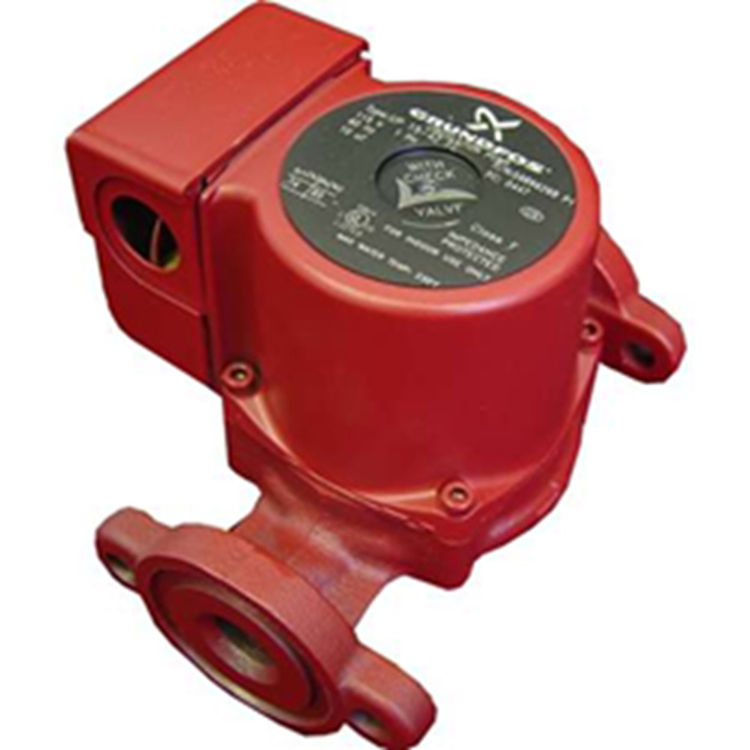

Grundfos UPS15-58FC 59896341 1/25 HP 115V Circulating Pump

SKU: 14221
   based on 2 Reviews
100% recommend this product
Save 57% · Retail: $203.00

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$86.76/ea 6
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Grundfos 59896341

Grundfos 59896341 1/25 Hp 115V Circulating Pump. This Grundfos 59896341 1/25 Hp 115V Circulating Pump is a genuine part manufactured by Grundfos. This Pump pushes water throughout the entire system, keeping the water warm. This Pump is designed for commercial grade applications.

Product Details

Product: Recirculating
Manufacturer: Grundfos
Material: Cast iron
Use: Water
Type: Non Potable Water
Electrical Voltage: 110-120 Volt
Connection Type: Flanged
Mpn # 59896341
Shipping Dimensions 10.3" x 6.5" x 3.8"
Weight 6.80 lbs.

Product Features

  • Easy to Install
  • Advanced fan design - results in dramatically reduced noise levels
  • Mechanically and hydraulically balanced impeller - further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime
  • Wet Rotor Design
  • Single Stage Motor
  • Heating systems
  • Open and closed systems
  • Cast iron Construction
  • Cooling and air conditioning systems
  • Residential and Commercial Grade Applications
  • Renewable neck rings - makes it easy to upgrade your pump when necessary


Rated 5 out of 5 based on 2 reviews

Very Versital Rated 5 by Rottresq
I needed to replace 2 circulating pumps in my home radiant heating system - one for the boiler side & one on the zone side. My plumber installed the boiler side and handed me the box the Grundfos 59896341 came in, saying, "if the pump on this side failed, how far behind can the zone side be?" I took his hint and immediately ordered one more. I had watched him install the first one and knew I could do the next one. The old one (a Taco) came out easily and the Grundfos replacement went in easily. Its running as I type this in my equipment room.
Originally posted on Jun/2016

Fine Replacement at a Reasonable Price Rated 5 by ArtW
  Yes, I recommend this product.
When I burned out a circulation pump used in my radiant heating system, I found this replacement at Plumbers Stock at a very good price, and I hve been very happy with it.
Originally posted on Jun/2016

Questions & Answers


Currently there is no available specification sheet for Grundfos 59896341. However, you can visit Grundfos' official website for more information. The Grundfos 59896341 and Grundfos 59896343 isn't at all that much different, in fact, both of them can be substituted as a direct replacement. Thank you for visiting PlumbersStock!


Thank you for visiting PlumbersStock! While these two pumps, Grundfos UPS15-58FRC 59896343 (sku 47845) and Grundfos UPS15-58FC 59896341 (sku 14221), are identical in flow rate and voltage there is a major difference in the two. Both can indeed be substituted as a direct replacements but the difference between the two pumps is the bolt pattern of the flange. The "R" in the FRC of the UPS15-58FRC 59896343 (sku 47845) indicates that the flange is rotated 90 degrees. Please take a close look at the images of both products to determine the flange configuration that works for your circumstance before placing your order.
