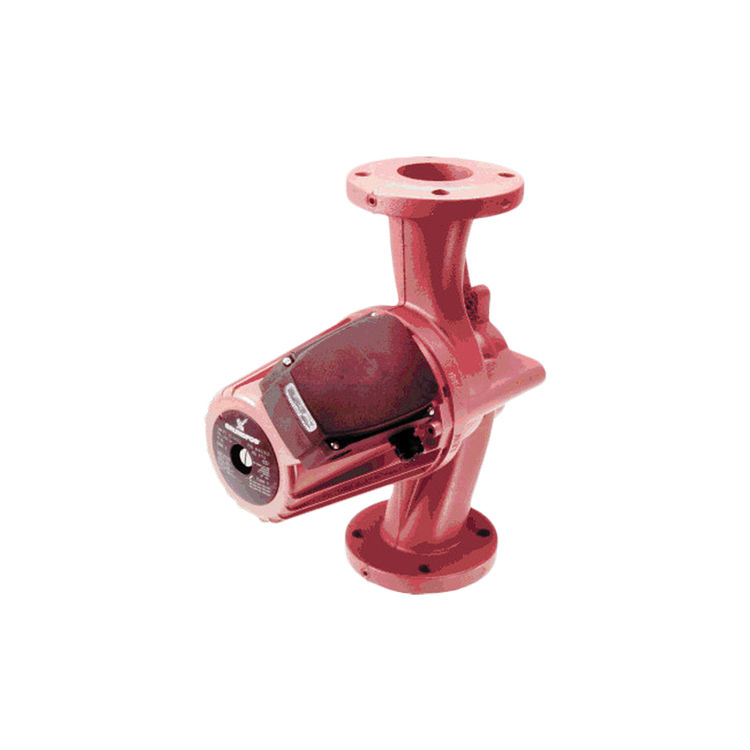

Grundfos 96402860 UPS50-160/2 1-1/2 HP 230V Circulating Pump

SKU: 16581

$1,453.94/ea
 Free Shipping!
Save 52% · Retail: $3,026.00

In Stock and Ready to Ship




Ships From Price Qty
Long Island Warehouse
Ships in 5-7 Days
$1,495.94/ea 1
Illinois Warehouse
Ships in 3-5 days
$1,739.72/ea 1
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,453.94/ea

About the Grundfos 96402860

Grundfos 96402860 UPS50-160/2, 1-1/2-HP, 230V Circulating Pump. This Circulating Pump is designed to be extremely efficient, and durable. The pump's motor is engineered for use on both full and part-capacity systems. The Grundfos 96402860 UPS50-160/2, 1-1/2-HP, 230V Circulating Pump is designed to cover a broad range of both commercial and residential circulation applications. These circulation applications include; circulating liquids in heating and air-conditioning systems, general water supply, boiler/hydronic heating, and chilled water systems. This Grundfos 96402860 UPS50-160/2, 1-1/2-HP, 230V Circulating Pump also features an easy maintenance design that allows a single person to service the pump with ease, saving your company time and money. Other important specifications include; Single Stage, Three Phase Motor, Cast Iron Body, Integral Check Valve, Flanged Connection, and Signature Dark Red Color.

Product Details

Manufacturer: Grundfos
Electrical Voltage: 230 Volt
Pump Features: 3 Phase
Motor Size: 1-1/2 HP
Mpn # 96402860
Weight 53.50 lbs.

Product Features

  • Grundfos 96402860 1-1/2 HP 230V Circulating Pump
  • Easy to Install
  • Wet Rotor Design
  • Single Stage Motor
  • Cast iron Construction (Pump Body)
  • For use with Open and Closed Systems
  • Designed for Heating System Applications
  • Residential and Commercial Grade Applications
  • Advanced Fan Design - results in dramatically reduced noise levels
  • Renewable Neck Rings - makes it easy to upgrade your pump when necessary
  • Mechanically and Hydraulically Balanced impeller - further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime

Reviews

Questions & Answers

Anonymous responded:

what is the max water temp this pump can pump

*PLUMBERSSTOCK EXPERT* responded:

Thank you for Visiting PlumbersStock.Com! According to Grundfos, the UPS50-160 96402860 1 1/2 HP Circulation Pump can accept liquids as hot as 140 Degrees in a open system, and 248 Degrees in a closed system.
